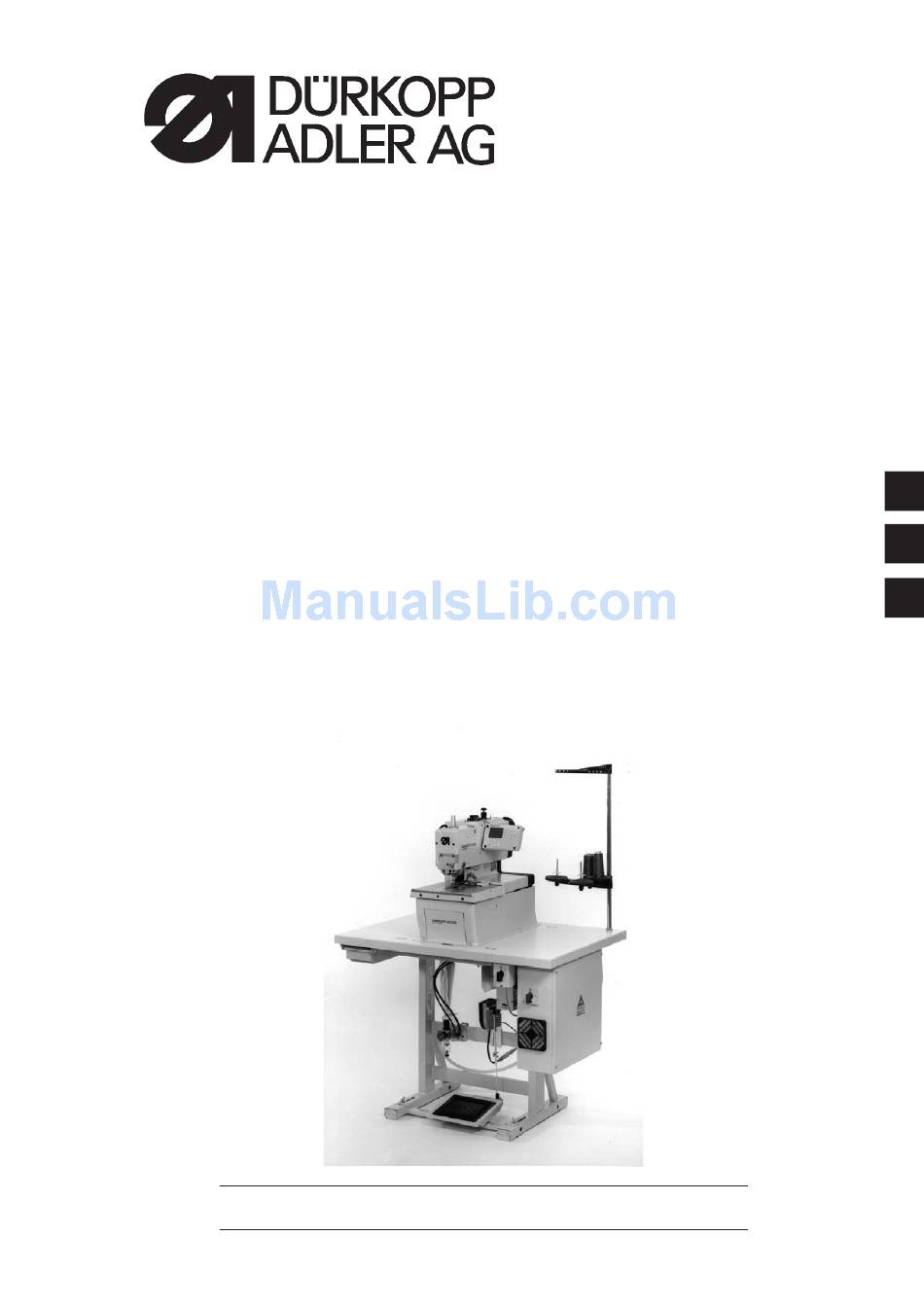

Page 1: Operating Instructions
Automatic double-chainstitch buttonholer Operating instructions Installation instructions Service instructions Postfach 17 03 51, D-33703 Bielefeld Ÿ Potsdamer Straße 190, D-33719 Bielefeld Telefon + 49 (0) 5 21 / 9 25-00 Ÿ Telefax + 49 (0) 5 21 / 9 25 24 35 Ÿ www.duerkopp-adler.com... - Page 2 Anleitung, komplett / Manual, complete Übersicht Summary Bedienanleitung Operating instructions Aufstellanleitung Installation instructions Serviceanleitung Service instructions Bauschaltplan Interconnection-diagram 9870 579020 B 9870 579020 B Postfach 17 03 51, D-33703 Bielefeld • Potsdamer Straße 190, D-33719 Bielefeld Sprache: Deutsch / Englisch Telefon +49 (0) 521 / 9 25-00 •...
- Page 3 Foreword This instruction manual is intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations. The instruction manual contains important information on how to operate the machine securely, properly and economically. Observation of the instructions eliminates danger, reduces costs for repair and down-times, and increases the reliability and life of the machine.
-
Page 4: General Safety Instructions
General safety instructions The non-observance of the following safety instructions can cause bodily injuries or damages to the machine. 1. The machine must only be commissioned in full knowledge of the instruction book and operated by persons with appropriate training. 2. -
Page 5: Table Of Contents
Contents page: Part 2: Installation Instructions Class 589 Items supplied ..........3 General and shipping braces . -
Page 7: Items Supplied
Items supplied What items are supplied depends on your order. Prior to installation please check that all the required parts are present. – 1 head – 2 operating panel – 3 stand – 4 pedal linkage – 5 pedal – 6 yarn stand –... -
Page 8: Installing The Machine
Installing the machine Adjusting the working height The working height is continuously adjustable between 85 and 120 cm (measured to the upper edge of the table plate). – Undo locking screws 1 and 2 on both sides of the stand. –... -
Page 9: Aligning And Connecting The Pedal
Aligning and connecting the pedal – Align the pedal 4 laterally on the stand brace 5 so that the middle of the pedal is roughly beneath the needle. – Screw the pedal 4 firmly to the stand brace. – Screw the set value initiator 1 firmly to the stand brace. –... -
Page 10: Electrical Connection
Electrical connection CAUTION: The mains voltage must coincide with the rated voltage specified on the name plate. The machine adapts the local mains voltage via connection terminals 1 to 5 and A to D of the transformers in the control box. Both the transformer terminals are factory-set to a mains voltage of 230 V. -
Page 11: Pneumatic Connection
Pneumatic connection Connecting the maintenance unit The pneumatic system of the machine and its auxiliary equipment must be supplied with compressed air containing absolutely no water or oil. CAUTION: For the pneumatic control processes to function properly the compressed-air supply must be able to provide air at a pressure of 6 ±... -
Page 12: Lubrication
Lubrication Caution: danger of injury Oil can cause skin eruptions. Avoid protracted contact with the skin. In the event of contact, thoroughly wash the affected area. CAUTION: The handling and disposal of mineral oils is subject to legal regulation. Deliver used oil to an authorised collection point. Protect your environment. -
Page 13: Sewing Test
Sewing test A sewing test must be carried out when setting-up is complete. – Insert the mains plug. Caution: danger of injury Turn off the main switch. The needle, looper and gimp threads may only be threaded with the sewing machine switched off. –...
