PRODUCT NO.
BASE MODEL NO.
FRT21TNGD3
FRT21TNG
FRT21TNGW3
FRT21TNG
MARKET
North America
WIRING DIAGRAM - # 193832
OWNER'S GUIDE - # 218613700
SERVICE DATA SHEET - # 218755000
101 MASTERS BLVD.
ANDERSON, SC 29624
FACTORY PARTS CATALOG
SERIES
COLOR
R134a System
almond
R134a System
almond
Publication No.
5995318234
990215
-EN/SERVICE /ECL
357

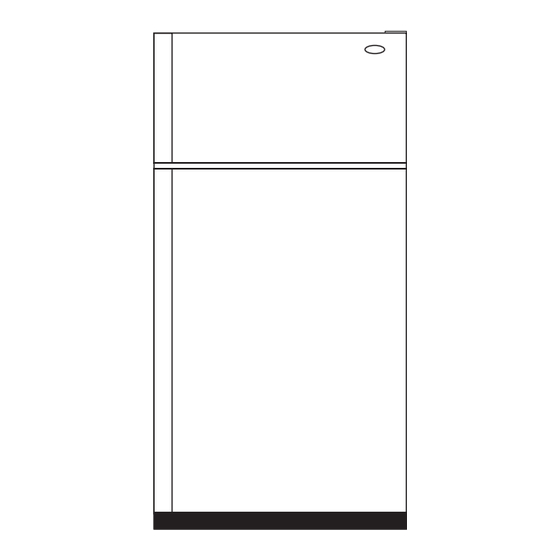

REFRIGERATOR
VOLTS
115
115
REFRIGERATOR
Model No.
FRT21TNG
©1999 White Consolidated Industries, Inc.
All rights reserved
Advertisement
Related Manuals for Frigidaire FRT21TNG
Summary of Contents for Frigidaire FRT21TNG
- Page 1 FACTORY PARTS CATALOG REFRIGERATOR PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS FRT21TNGD3 FRT21TNG R134a System almond FRT21TNGW3 FRT21TNG R134a System almond MARKET North America WIRING DIAGRAM - # 193832 OWNER’S GUIDE - # 218613700 SERVICE DATA SHEET - # 218755000 REFRIGERATOR Model No.
- Page 2 Publication No. FRT21TNG 5995318234 DOOR 02/99...
- Page 3 FRT21TNG Publication No. 5995318234 DOOR A = FRT21TNG (FRT21TNGD3) B = FRT21TNG (FRT21TNGW3) POS. NO PART NO DESCRIPTION 215608903 Gasket-frzr door,almond ,magnetic 215608913 Gasket-frzr door,white ,magnetic 218730610 Gasket-refr door,almond ,magnetic 218730609 Gasket-refr door,white ,magnetic 5303275674 Panel-inner door,refr 5303323480 Support-door rack,white ,RH 5303323481 Support-door rack,white ,LH 5303308336...
- Page 4 Publication No. FRT21TNG 5995318234 CABINET 02/99...
- Page 5 FRT21TNG Publication No. 5995318234 CABINET A = FRT21TNG (FRT21TNGD3) B = FRT21TNG (FRT21TNGW3) POS. NO PART NO DESCRIPTION 5304402655 Cover-fan 5303307351 Knob-damper control 5303001028 Nut,push-on 218722200 Damper-fan cover,black 218649000 Fan Blade,black 5303001388 Plug-button,white 5300157666 Bushing-motor mtg,(2) 5303205118 Bracket-motor mtg,front 218802800 Cover-evap coil 5303209814 Nut,"U"...
- Page 6 Publication No. FRT21TNG 5995318234 SHELVES 02/99...
- Page 7 FRT21TNG Publication No. 5995318234 SHELVES A = FRT21TNG (FRT21TNGD3) B = FRT21TNG (FRT21TNGW3) POS. NO PART NO DESCRIPTION 218651900 Mullion,white 218651901 Mullion,almond 218781002 Heater-mullion 218845602 Tapping Plate,mullion mtg ,(2) 218866101 Top Panel-refr 5303001380 Screw,truss head ,8-10 x 1.625 218866000 Divider,styrofoam 8* # 218878600 Harness-wiring,control/divider...
- Page 8 Publication No. FRT21TNG 5995318234 SYSTEM P05C0101 02/99...
- Page 9 FRT21TNG Publication No. 5995318234 SYSTEM A = FRT21TNG (FRT21TNGD3) B = FRT21TNG (FRT21TNGW3) POS. NO PART NO DESCRIPTION 218657100 Condenser 5303017691 Spacer-tube 5304406039 Spacer-tube,5/8 OD x 3" lg 5304406040 Spacer-tube,5/8 OD x 12" lg 5304406721 Spacer-tube,5/8 OD x .81"lg 5304406722 Spacer-tube,5/8 OD x 2"...
-
Page 10: Ice Maker
Publication No. FRT21TNG 5995318234 ICE MAKER 02/99... - Page 11 FRT21TNG Publication No. 5995318234 ICE MAKER A = FRT21TNG (FRT21TNGD3) B = FRT21TNG (FRT21TNGW3) POS. NO PART NO DESCRIPTION 5303015131 Tube-water inlet,71" ,valve-to-IM 5314368805 Tube-valve to IM,plastic ,cut to length 3206348 Spring,shut-off arm 3206299 Plate-I.D. 3206301 Gear 3206303 Plate-mounting 3206305 Screw-ground wire,8-32 x 1/4 3206306 Motor-ice maker...
-
Page 12: Wiring Schematic
Publication No. FRT21TNG 5995318234 WIRING SCHEMATIC 02/99... -
Page 13: Wiring Diagram
FRT21TNG Publication No. 5995318234 WIRING DIAGRAM # = Fast-moving Parts 02/99 * = Non-Illustrated Parts...
