N58L00001.eps N58FAAAAB4.eps N58RAAABB5.eps N58BAAAAA0.eps
N58SJCACA24.eps N58TAAAAA7.eps N58CAAAAA10.eps N58XCAAAA2.eps
N58YCAAAA3.eps N58I1151.eps W241708401.eps S241708401.eps
P.O. BOX 212378
AUGUSTA, GA 30917
Product No.
FRS6R2FB2
Series
R134a
Color
black
Volts
115
Wiring Diagram
241708401
Owner's Guide
241856000
Market
North America
Energy Guide
241615437
Service Data Sheet 240389629
Publication No.
5995495669
07/07/23
(EN/SERVICE/RLF)
137
Copyright

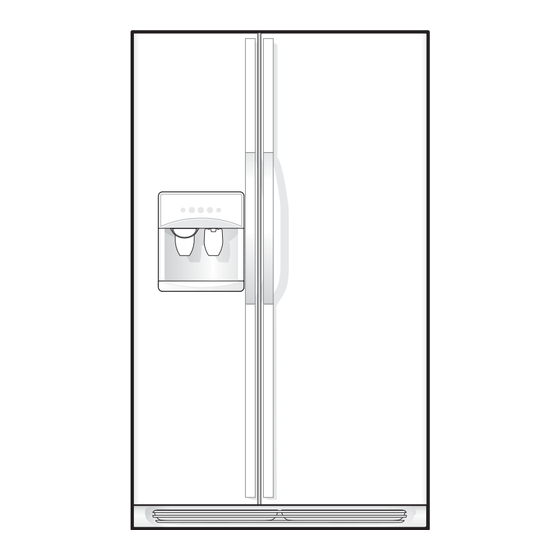

SIDE-BY-SIDE
REFRIGERATOR
Model No.
FRS6R2F
©
All rights reserved.
Advertisement
Table of Contents
Related Manuals for Frigidaire FRS6R2F
Summary of Contents for Frigidaire FRS6R2F
- Page 1 Product No. FRS6R2FB2 Series R134a Color black Volts Wiring Diagram 241708401 Owner's Guide 241856000 Market North America Energy Guide 241615437 Service Data Sheet 240389629 SIDE-BY-SIDE N58L00001.eps N58FAAAAB4.eps N58RAAABB5.eps N58BAAAAA0.eps REFRIGERATOR N58SJCACA24.eps N58TAAAAA7.eps N58CAAAAA10.eps N58XCAAAA2.eps N58YCAAAA3.eps N58I1151.eps W241708401.eps S241708401.eps P.O. BOX 212378 Model No.
-
Page 2: Freezer Door
Publication No: 5995495669 FRS6R2FB2 FREEZER DOOR 07/07... - Page 3 FRS6R2FB2 Publication No: 5995495669 FREEZER DOOR POS. NO PART NO. DESCRIPTION 241674806 Gasket-frzr door, black, magnetic 240334201 Bin-door, frzr-upper 240351601 Bin-door 241615175 Door-frzr, black, complete assy 240581906 Door Stop, black, frzr 218762703 Handle-door, black 240598402 Screw, 10-32 x 1/2 218781101 Screw, pan head, 8-18 x 0.625 240328204 Bearing-hinge(frz), black, closer...
-
Page 4: Refrigerator Door
Publication No: 5995495669 FRS6R2FB2 REFRIGERATOR DOOR N58RAAABB5 07/07... - Page 5 FRS6R2FB2 Publication No: 5995495669 REFRIGERATOR DOOR POS. NO PART NO. DESCRIPTION 241674805 Gasket-refr door, black, magnetic 240323001 Bin-door, pseudo, bottom 240581905 Door Stop, black, ref 241629345 Door-refr, black, complete assy 218762703 Handle-door, black 240598402 Screw, 10-32 x 1/2 218781101 Screw, pan head, 8-18 x 0.625 240328203 Bearing-hinge, black, closer 240328404...
- Page 6 Publication No: 5995495669 FRS6R2FB2 CABINET 07/07...
- Page 7 FRS6R2FB2 Publication No: 5995495669 CABINET POS. NO PART NO. DESCRIPTION 240435912 Cover-air duct 240475911 Cover-evap coil, lower 5303208309 Plug-hole, factory test 240505801 Switch, light/lamp 241547901 Switch-light/lamp, frzr door 218252201 Screw, #8 truss hd, 10-32CA x 0.500 240457702 Plate-door closer 240402702 Screw-#10-32 x 1/4 flat hd 241708801 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special...
- Page 8 Publication No: 5995495669 FRS6R2FB2 SHELVES N58SJCACA24 07/07...
- Page 9 FRS6R2FB2 Publication No: 5995495669 SHELVES POS. NO PART NO. DESCRIPTION 241657602 Shelf, flip up, wire 241657502 Shelf, fixed, freezer 241657504 Shelf, fixed, upper, freezer 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625 240373108 Frame-shelf, cantilever 240350702 Cover-crisper pan, upper 240350902 Cover-crisper pan, lower 240351003...
- Page 10 Publication No: 5995495669 FRS6R2FB2 CONTROLS N58TAAAAA7 07/07...
- Page 11 FRS6R2FB2 Publication No: 5995495669 CONTROLS POS. NO PART NO. DESCRIPTION 5308000010 Fan Blade, red, evaporator fan 215474201 Washer, "slinger", nylon, evap fan shaft 241563601 Bushing-motor mtg, (2) 13 # 240369702 Motor-evap fan 241517701 Clip, evap fan motor 240436702 Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature 16 # 241513901 Socket-light...
- Page 12 Publication No: 5995495669 FRS6R2FB2 SYSTEM N58CAAAAA10 07/07...
- Page 13 FRS6R2FB2 Publication No: 5995495669 SYSTEM POS. NO PART NO. DESCRIPTION 240333603 Condenser 218679607 Block-evap coil, styrofoam, (2) 218944001 Drier-filter, R134a System 241586801 Harness-wiring, machine compt 241651601 Harness-wiring 6* # 241735702 Harness-wiring, control box 14 # 240316107 Heater-defrost 15 # 5303918284 Evaporator Kit 5308000110 Strap-evap/heater, aluminum, (2)
-
Page 14: Ice And Water Dispenser
Publication No: 5995495669 FRS6R2FB2 ICE & WATER DISPENSER N58XCAAAA2 07/07... - Page 15 FRS6R2FB2 Publication No: 5995495669 ICE & WATER DISPENSER POS. NO PART NO. DESCRIPTION 218976409 Tube, water, door 218976419 Tube-water inlet, valve to door 218976420 Tube-water inlet, inlet valve, to filter 218976915 Tube-water inlet, inlet valve, to filter 240561701 Seal-water inlet, inlet valve, to ice maker 241678707 Cover-module, black 241680503...
-
Page 16: Ice Container
Publication No: 5995495669 FRS6R2FB2 ICE CONTAINER N58YCAAAA3 07/07... - Page 17 FRS6R2FB2 Publication No: 5995495669 ICE CONTAINER POS. NO PART NO. DESCRIPTION 241716101 Auger-ice 241685201 Cam-drive 241734001 Container-ice, bucket only 241685101 Drum-ice disp 241734201 Front-ice container 241726501 Bar-drive 241685301 Gate 240436702 Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature 241559801 Socket-light 241684501 Drive Blade...
-
Page 18: Ice Maker
Publication No: 5995495669 FRS6R2FB2 ICE MAKER 07/07... - Page 19 FRS6R2FB2 Publication No: 5995495669 ICE MAKER POS. NO PART NO. DESCRIPTION 218976409 Tube, water, door 218976419 Tube-water inlet, valve to door 218976420 Tube-water inlet, inlet valve, to filter 218976915 Tube-water inlet, inlet valve, to filter 240561701 Seal-water inlet, inlet valve, to ice maker 5304456650 Spring-shutoff arm, ICE MAKER 5304456657...
- Page 20 Publication No: 5995495669 FRS6R2FB2 ICE MAKER 07/07...
- Page 21 FRS6R2FB2 Publication No: 5995495669 ICE MAKER POS. NO PART NO. DESCRIPTION 5303207328 Screw, hex washer head, 8-15A x 1.000, (2) 5304456686 Bracket-leveling, ICE MAKER 5304456687 Screw-IM brkt mtg, special, 8-32D x 0.375 5303001549 Clamp, 0.31 ID, steel, copper wtr line 241642501 Ice Maker, radius cube, 115 V, Svce 241806601...
-
Page 22: Wiring Schematic
Publication No: 5995495669 FRS6R2FB2 WIRING SCHEMATIC 07/07... -
Page 23: Wiring Diagram
FRS6R2FB2 Publication No: 5995495669 WIRING DIAGRAM 07/07 # Functional Parts * Non-Illustrated Parts...
