Frigidaire FRS6R5ES Parts Catalog

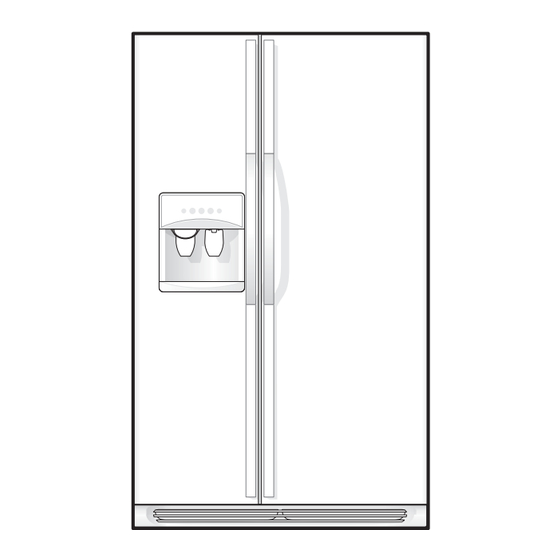

Side-by-side refrigerator
Hide thumbs Also See for FRS6R5ES:
Table of Contents

Advertisement

Quick Links

Download this manual
N58L00001.eps N58FCCBBB2.eps N58RCCBBB11.eps N58BAAAAA0.eps
N58SJCAAB12.eps N58TAAAAA6.eps N58CAAAAA5.eps N58XDAAAA1.eps
N58YBAAAA0.eps N58I115.eps W241526901A.eps S241526901A.eps
P.O. BOX 212378
AUGUSTA, GA 30917
Product No.
FRS6R5ESB0 FRS6R5ESB2
Series
R134a
Color
stain/blk
Volts
115
Wiring Diagram
241526901
Owner's Guide
241661500
Market
North America North America
Energy Guide
241615421
Service Data Sheet 240389616
Publication No.
5995444311
05/08/10
(EN/SERVICE/DCS)
137
R134a
stain/blk
115
241526901
241661500
241615421
240389616
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FRS6R5ES
©
Copyright
All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRS6R5ES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Frigidaire FRS6R5ES

Summary of Contents for Frigidaire FRS6R5ES

  • Page 1 Product No. FRS6R5ESB0 FRS6R5ESB2 Series R134a R134a Color stain/blk stain/blk Volts Wiring Diagram 241526901 241526901 Owner's Guide 241661500 241661500 Market North America North America Energy Guide 241615421 241615421 Service Data Sheet 240389616 240389616 SIDE-BY-SIDE N58L00001.eps N58FCCBBB2.eps N58RCCBBB11.eps N58BAAAAA0.eps REFRIGERATOR N58SJCAAB12.eps N58TAAAAA6.eps N58CAAAAA5.eps N58XDAAAA1.eps N58YBAAAA0.eps N58I115.eps W241526901A.eps S241526901A.eps P.O.

  • Page 2: Freezer Door

    Publication No: 5995444311 FRS6R5ES FREEZER DOOR N58FCCBBB2 08/05...
  • Page 3 FRS6R5ES Publication No: 5995444311 FREEZER DOOR Model Index: A FRS6R5ES (FRS6R5ESB0) B FRS6R5ES (FRS6R5ESB2) POS. NO PART NO. DESCRIPTION 241569806 Gasket-frzr door, black, magnetic 240334201 Bin-door, frzr-upper 240351601 Bin-door 241615103 Door-frzr, stainless, complete assy 240581906 Door Stop, black, frzr 240359108 Handle-door, black, LH 218781100 Screw, pan head, 8-18 x 0.625...

  • Page 4: Refrigerator Door

    Publication No: 5995444311 FRS6R5ES REFRIGERATOR DOOR N58RCCBBB11 08/05...
  • Page 5 FRS6R5ES Publication No: 5995444311 REFRIGERATOR DOOR Model Index: A FRS6R5ES (FRS6R5ESB0) B FRS6R5ES (FRS6R5ESB2) POS. NO PART NO. DESCRIPTION 241569805 Gasket-refr door, black, magnetic 240323001 Bin-door, pseudo, bottom 240326203 Door-dairy 240581905 Door Stop, black, ref 241534532 Door-refr, stainless, complete assy 240359103 Handle-door, black, RH 218781100...
  • Page 6 Publication No: 5995444311 FRS6R5ES CABINET 08/05...
  • Page 7 FRS6R5ES Publication No: 5995444311 CABINET Model Index: A FRS6R5ES (FRS6R5ESB0) B FRS6R5ES (FRS6R5ESB2) POS. NO PART NO. DESCRIPTION 240435906 Cover-air duct 240475907 Cover-evap coil, lower 5303208309 Plug-hole, factory test 240505801 Switch, light/lamp 241547901 Switch-light/lamp, frzr door 218252200 Screw, #8 truss hd, 10-32CA x 0.500 240457702 Plate-door closer 240402701...
  • Page 8 Publication No: 5995444311 FRS6R5ES SHELVES N58SJCAAB12 08/05...
  • Page 9 FRS6R5ES Publication No: 5995444311 SHELVES Model Index: A FRS6R5ES (FRS6R5ESB0) B FRS6R5ES (FRS6R5ESB2) POS. NO PART NO. DESCRIPTION 240338802 Shelf-freezer, flip-up 241657602 Shelf, flip up, wire 240338702 Shelf-freezer, fixed wire 241657502 Shelf, fixed, freezer 240338704 Shelf-freezer, fixed wire 241657504 Shelf, fixed, freezer 240355208 Shelf-"Spill-Safe", fixed 240350702...
  • Page 10 Publication No: 5995444311 FRS6R5ES CONTROLS N58TAAAAA6 08/05...
  • Page 11 FRS6R5ES Publication No: 5995444311 CONTROLS Model Index: A FRS6R5ES (FRS6R5ESB0) B FRS6R5ES (FRS6R5ESB2) POS. NO PART NO. DESCRIPTION 5308000010 Fan Blade, red, evaporator fan 215474201 Washer, "slinger", nylon, evap fan shaft 241563601 Bushing-motor mtg, (2) 240369702 Motor-evap fan 241517701 Clip, evap fan motor 241555401 Light Bulb 16 #...
  • Page 12 Publication No: 5995444311 FRS6R5ES SYSTEM N58CAAAAA5 08/05...
  • Page 13 FRS6R5ES Publication No: 5995444311 SYSTEM Model Index: A FRS6R5ES (FRS6R5ESB0) B FRS6R5ES (FRS6R5ESB2) POS. NO PART NO. DESCRIPTION 240333603 Condenser 218679607 Block-evap coil, styrofoam, (2) 218944001 Drier-filter, R134a System 241586801 Harness-wiring, machine compt 6* # 241537802 Harness-wiring, control box 240449601 Harness-wiring 6* # 241651601...

  • Page 14: Ice And Water Dispenser

    Publication No: 5995444311 FRS6R5ES ICE & WATER DISPENSER 08/05...
  • Page 15 FRS6R5ES Publication No: 5995444311 ICE & WATER DISPENSER Model Index: A FRS6R5ES (FRS6R5ESB0) B FRS6R5ES (FRS6R5ESB2) POS. NO PART NO. DESCRIPTION 218976409 Tube-water-DOOR 218976901 Tube-water inlet, inlet valve, to ice maker 218976904 Tube-water inlet, valve to filter 218976907 Tube-water inlet, valve to door 240561701 Seal-water inlet, inlet valve, to ice maker 5304433186...

  • Page 16: Ice Container

    Publication No: 5995444311 FRS6R5ES ICE CONTAINER 08/05...
  • Page 17 FRS6R5ES Publication No: 5995444311 ICE CONTAINER Model Index: A FRS6R5ES (FRS6R5ESB0) B FRS6R5ES (FRS6R5ESB2) POS. NO PART NO. DESCRIPTION 5304428402 Auger-ice 5304404343 Cam-drive 218815300 Container-ice, bucket only 5304404346 Drum-ice disp 218815400 Front-ice container 241624801 Bar-drive 5304404359 Gate 241555401 Light Bulb 241559801 Socket-light 5304404345...

  • Page 18: Ice Maker

    Publication No: 5995444311 FRS6R5ES ICE MAKER 08/05...
  • Page 19 FRS6R5ES Publication No: 5995444311 ICE MAKER Model Index: A FRS6R5ES (FRS6R5ESB0) B FRS6R5ES (FRS6R5ESB2) POS. NO PART NO. DESCRIPTION 218976409 Tube-water-DOOR 218976901 Tube-water inlet, inlet valve, to ice maker 218976904 Tube-water inlet, valve to filter 218976907 Tube-water inlet, valve to door 240561701 Seal-water inlet, inlet valve, to ice maker 5304420650...
  • Page 20 Publication No: 5995444311 FRS6R5ES ICE MAKER 08/05...
  • Page 21 FRS6R5ES Publication No: 5995444311 ICE MAKER Model Index: A FRS6R5ES (FRS6R5ESB0) B FRS6R5ES (FRS6R5ESB2) POS. NO PART NO. DESCRIPTION 240363601 Screw-shoulder 240542901 Cap-water valve 5303207328 Screw, hex washer head, 8-15A x 1.000, (2) 218721500 Bracket-leveling, ICE MAKER 218737900 Screw-IM brkt mtg, hex washer head, 8-32D x 0.375 5303001549 Clamp, 0.31 ID, steel, copper wtr line 218888001...

  • Page 22: Wiring Schematic

    Publication No: 5995444311 FRS6R5ES WIRING SCHEMATIC 08/05...

  • Page 23: Wiring Diagram

    FRS6R5ES Publication No: 5995444311 WIRING DIAGRAM 08/05 # Functional Parts * Non-Illustrated Parts...
