Frigidaire FRS6R4E Factory Parts Catalog
  1. Manuals
  2. Brands
  3. Frigidaire Manuals
  4. Refrigerator
  5. FRS6R4E
  6. Factory parts catalog

Frigidaire FRS6R4E Factory Parts Catalog

Side-by-side refrigerator
Hide thumbs Also See for FRS6R4E:
Table of Contents

Advertisement

Quick Links

N58L00001.eps N58FCCBBB2.eps N58RCCBBB11.eps N58BAAAAA0.eps
N58SJCAAB12.eps N58TAAAAA6.eps N58CAAAAA5.eps N58XDAAAA1.eps
N58YBAAAA1.eps N58I115.eps W241526901A.eps S241526901A.eps
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378
Augusta, GA 30917
Product No.
FRS6R4EB0 FRS6R4EQ0 FRS6R4EW0
Series
R134a
Color
black
Volts
115
Wiring Diagram
241526901
Owner's Guide
240581300
Market
North America North America North America
Energy Guide
241585977
Service Data Sheet 240389616
Publication No.
5995429700
05/02/22
(EN/SERVICE/DCS)
357
R134a
R134a
bisque
white
115
115
241526901
241526901
240581300
240581300
241585977
241585977
240389616
240389616

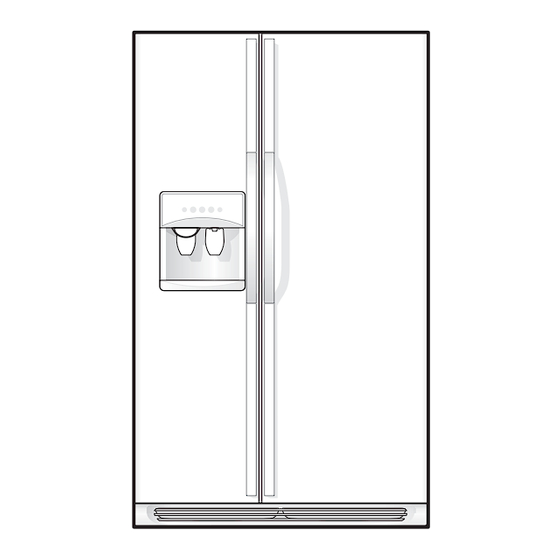

SIDE-BY-SIDE
REFRIGERATOR
Model No.
FRS6R4E
©
Copyright
2005 Electrolux Home Products, Inc.
All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRS6R4E and is the answer not in the manual?

Questions and answers

Related Manuals for Frigidaire FRS6R4E

Summary of Contents for Frigidaire FRS6R4E

  • Page 1 241526901 241526901 241526901 240581300 240581300 240581300 North America North America North America 241585977 241585977 241585977 240389616 240389616 SIDE-BY-SIDE REFRIGERATOR Model No. FRS6R4E Publication No. 5995429700 05/02/22 (EN/SERVICE/DCS) © Copyright 2005 Electrolux Home Products, Inc. All rights reserved.

  • Page 2: Freezer Door

    Publication No: 5995429700 FRS6R4E FREEZER DOOR N58FCCBBB2 02/05...
  • Page 3 215503200 240352102 240552101 5303918256 # Functional Parts * Non-Illustrated Parts FRS6R4E FREEZER DOOR A FRS6R4E (FRS6R4EB0) B FRS6R4E (FRS6R4EQ0) C FRS6R4E (FRS6R4EW0) DESCRIPTION A - - Gasket-frzr door, black, magnetic - B C Gasket-frzr door, white, magnetic A B C...

  • Page 4: Refrigerator Door

    Publication No: 5995429700 02/05 FRS6R4E REFRIGERATOR DOOR N58RCCBBB11...
  • Page 5 240356401 240421701 218396700 215503200 # Functional Parts * Non-Illustrated Parts FRS6R4E REFRIGERATOR DOOR A FRS6R4E (FRS6R4EB0) B FRS6R4E (FRS6R4EQ0) C FRS6R4E (FRS6R4EW0) DESCRIPTION A - - Gasket-refr door, black, magnetic - B C Gasket-refr door, white, magnetic A B C...
  • Page 6 Publication No: 5995429700 FRS6R4E CABINET 02/05...
  • Page 7 240479601 240481601 5303305345 5304414035 5303305324 # Functional Parts * Non-Illustrated Parts FRS6R4E CABINET A FRS6R4E (FRS6R4EB0) B FRS6R4E (FRS6R4EQ0) C FRS6R4E (FRS6R4EW0) DESCRIPTION A B C Cover-air duct A B C Cover-evap coil, lower A B C Plug-hole, factory test...
  • Page 8 Publication No: 5995429700 02/05 FRS6R4E SHELVES N58SJCAAB12...
  • Page 9 218493100 215005100 218867405 218867406 240430501 # Functional Parts * Non-Illustrated Parts FRS6R4E SHELVES A FRS6R4E (FRS6R4EB0) B FRS6R4E (FRS6R4EQ0) C FRS6R4E (FRS6R4EW0) DESCRIPTION A B C Shelf-freezer, flip-up A B C Shelf-freezer, fixed wire A B C Shelf-freezer, fixed wire A B C Shelf-"Spill-Safe", fixed...
  • Page 10 Publication No: 5995429700 02/05 FRS6R4E CONTROLS N58TAAAAA6...
  • Page 11 149* 241528303 240394102 240376002 # Functional Parts * Non-Illustrated Parts FRS6R4E CONTROLS A FRS6R4E (FRS6R4EB0) B FRS6R4E (FRS6R4EQ0) C FRS6R4E (FRS6R4EW0) DESCRIPTION A B C Fan Blade, red, evaporator fan A B C Washer, "slinger", nylon, evap fan shaft A B C...
  • Page 12 Publication No: 5995429700 02/05 FRS6R4E SYSTEM N58CAAAAA5...
  • Page 13 5303316859 5304421068 240346201 5303918213 5303918222 # Functional Parts * Non-Illustrated Parts FRS6R4E SYSTEM A FRS6R4E (FRS6R4EB0) B FRS6R4E (FRS6R4EQ0) C FRS6R4E (FRS6R4EW0) DESCRIPTION A B C Condenser A B C Block-evap coil, styrofoam, (2) A B C Drier-filter, R134a System...

  • Page 14: Ice And Water Dispenser

    Publication No: 5995429700 FRS6R4E ICE & WATER DISPENSER 02/05...
  • Page 15 5304421621 5304421615 218515401 5303918256 # Functional Parts * Non-Illustrated Parts FRS6R4E ICE & WATER DISPENSER A FRS6R4E (FRS6R4EB0) B FRS6R4E (FRS6R4EQ0) C FRS6R4E (FRS6R4EW0) DESCRIPTION A B C Tube-water-DOOR A B C Tube-water inlet, inlet valve, to ice maker A B C...

  • Page 16: Ice Container

    Publication No: 5995429700 02/05 FRS6R4E ICE CONTAINER 37A 34 34 33 N58YBAAAA1...
  • Page 17 5304404361 5304404363 5304404331 241577302 240323808 240507202 # Functional Parts * Non-Illustrated Parts FRS6R4E ICE CONTAINER A FRS6R4E (FRS6R4EB0) B FRS6R4E (FRS6R4EQ0) C FRS6R4E (FRS6R4EW0) DESCRIPTION A B C Auger-ice A B C Cam-drive A B C Container-ice, bucket only A B C...

  • Page 18: Ice Maker

    Publication No: 5995429700 FRS6R4E ICE MAKER 02/05...
  • Page 19 5308000133 240387101 55 # 240531101 # Functional Parts * Non-Illustrated Parts FRS6R4E ICE MAKER A FRS6R4E (FRS6R4EB0) B FRS6R4E (FRS6R4EQ0) C FRS6R4E (FRS6R4EW0) DESCRIPTION A B C Tube-water-DOOR A B C Tube-water inlet, inlet valve, to ice maker A B C...
  • Page 20 Publication No: 5995429700 FRS6R4E ICE MAKER 02/05...
  • Page 21 218721500 218737900 5303001549 218888001 240352411 # Functional Parts * Non-Illustrated Parts FRS6R4E ICE MAKER A FRS6R4E (FRS6R4EB0) B FRS6R4E (FRS6R4EQ0) C FRS6R4E (FRS6R4EW0) DESCRIPTION A B C Screw, hex head, 10-32 x 0.500 A B C Screw-shoulder A B C...

  • Page 22: Wiring Schematic

    Publication No: 5995429700 FRS6R4E WIRING SCHEMATIC 02/05...

  • Page 23: Wiring Diagram

    FRS6R4E Publication No: 5995429700 WIRING DIAGRAM 02/05 # Functional Parts * Non-Illustrated Parts...
