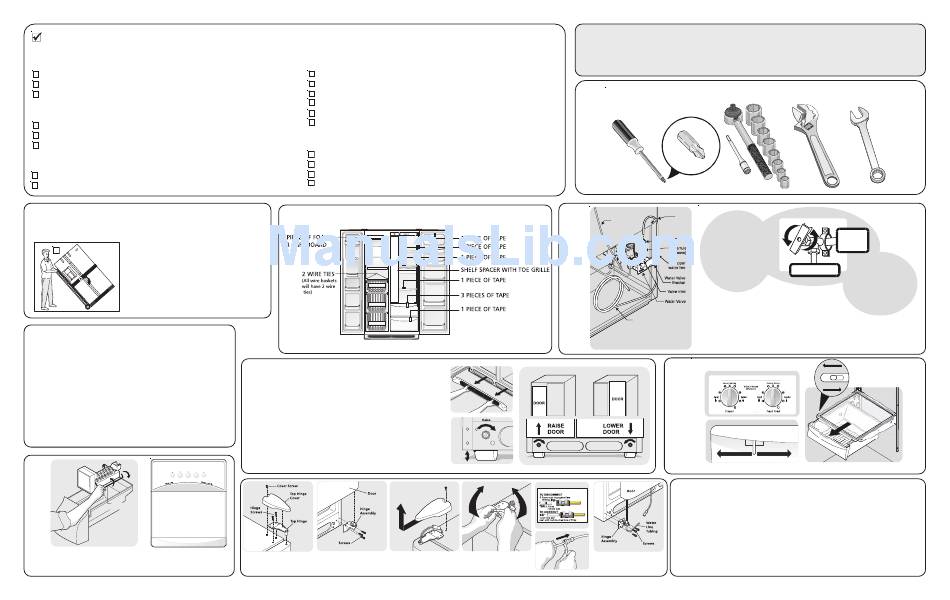

Frigidaire Refrigerator Installation Instructions

INSTALLATION CHECKOFF LIST
Doors
Handles are secure and tight
Door seals completely to cabinet on all sides
Doors are level across the top
Leveling
Refrigerator is level, side to side and tilted 1/4" (6mm) front to back
Toe grille is properly attached to refrigerator
Cabinet is setting solid on all corners
Electrical Power
House power turned on
Refrigerator plugged in
1
HAND TRUCKING
Load refrigerator from side of cabinet
•
only.
• Do not run retaining straps over
handles.
• Do not over-tighten retaining straps.
• Never use refrigerator handles to
move the refrigerator.
• Remove tape from doors only after
unit is in place.
4
INSTALLATION CLEARANCES
Allow the following clearances for ease of installation,
proper air circulation, and plumbing and electrical
connections:
• Sides & Top..........3/8"
• Back.......................1"
NOTE: If you are installing your refrigerator beside a wall,
leave 1/2" minimum between hinges and wall to allow for
the door to swing open.
7
ON
OFF
Ice Water
Wire
Signal Arm
Ensure icemaker to turned ON. Check to see that the Ice & Water
Dispenser is operating correctly. (See Automatic Ice & Water
Dispenser Features in Use & Care Manual.)
IF YOU ARE DISSATISFIED WITH THE INSTALLATION OF YOUR REFRIGERATOR, PLEASE CALL THE STORE YOU PURCHASED IT FROM.
TO BE REMOVED BY THE CUSTOMER AFTER INSTALLATION IS COMPLETE.
Ice Maker
House water supply connected to refrigerator
Water & power couplings connected at door
No water leaks present at all connections - recheck in 24 hours
Ice Maker is turned ON.
Ice & Water Dispenser operates correctly
Front filter must be flush with filter housing (some models)
Final Checks
Shipping material removed
Fresh Food and Freezer controls set
Crisper Humidity controls set
Registration Card sent in
2
SHIPPING MATERIAL
Remove Shipping material. (Features may vary per model.)
5
LEVELING AND ADJUSTING
All four corners of refrigerator must rest firmly on a solid
floor. Your refrigerator has adjustable rollers to help level it
and to adjust the doors.
To level cabinet or change door height:
1. Remove toe grille.
2. Use a screwdriver, 3/8" wrench, or nutdriver to adjust the
rollers. To raise cabinet or door, turn screw clockwise. To
lower cabinet or door, turn screw counterclockwise.
8
If you need to remove the doors to get your refrigerator in the house, please See
Door Removal Instructions in your Use & Care Manual.
Refer to your Owner's Use and Care Manual for
additional information about your refrigerator.
Tools You Will Need:
™
Quvyyvƒ† Ãurhq
3
Plastic W ater T ubing
to Ice M aker
Fill T ube
(Include enough tubing in loop to allow
m oving refrigerator out for cleaning.)
Toe Grille
Cabinet
(Turn to other side for Spanish version.)
25
T‚pxr‡
X…rpuÃTr‡
Steel
Clam p
Brass
Compression
Nut
Yiˆs†€w‚sÂvƒƒy‰„
WA TER SUPPL Y
Copper w ater line
from household water supply Connect water supply - check for water leaks. Turn icemaker OFF
if water supply is not connected immediately. Connecting to a
reverse osmosis system is not recommended.
CONTROLS
6
Higher Humidity Lower Humidity
Yvs‚Âqvi‚uw‚uÂqƒ‚ˆ†ƒ€Â‡sˆˆw‚u‡‘iwˆÂ"$Âvƒ‰†‡Âpstƒ†siyw‚uÂirrwˆwƒ‚i€Âirx‰‡ˆs‚ˆ‡
9
Ö
See "Normal Operating Sights & Sounds" in the Use & Care
Manual so you understand the sounds you may hear once
your refrigerator is running.
Ö
Please read entire Use & Care Manual to become aware of
important safety instructions and to become familiar with your
new refrigerator.
Ö
Send in Registration card to register your refrigerator.
Ö
Congratulations! You are ready to enjoy your new refrigerator.
"'µ
6qwˆ†‡hiyr
Av‘rq
X…rpu
X…rpu
Dƒ‰‡s
„€‰pw‚u
€w‚s
Colder
W arm er
P/N: 240566400
