Fire-Lite MBT-1 Manual

One Fire-Lite Place, Northford, CT 06472
The CMF-300 must be programmed as
'Silenceable' and 'General Alarm.'
Alarm polarity shown!
+ -
-
+
-
+
CMF-300*
+
* If the SLC device does not match the one in this figure, refer
to the SLC Manual (document #51309) wiring conversion
charts for legacy and newer versions of the modules.
For connection of initiating devices and modules in this system, refer to the MS-9200 Installation Manual, Document 51003.
This application is not suitable for separate transmission of sprinkler supervisory or trouble conditions.
1 of 5
- To next device
+ on SLC Loop
Braided-shield/Drain Wire
-
24VDC, Nonresettable
MS-9200
TB4

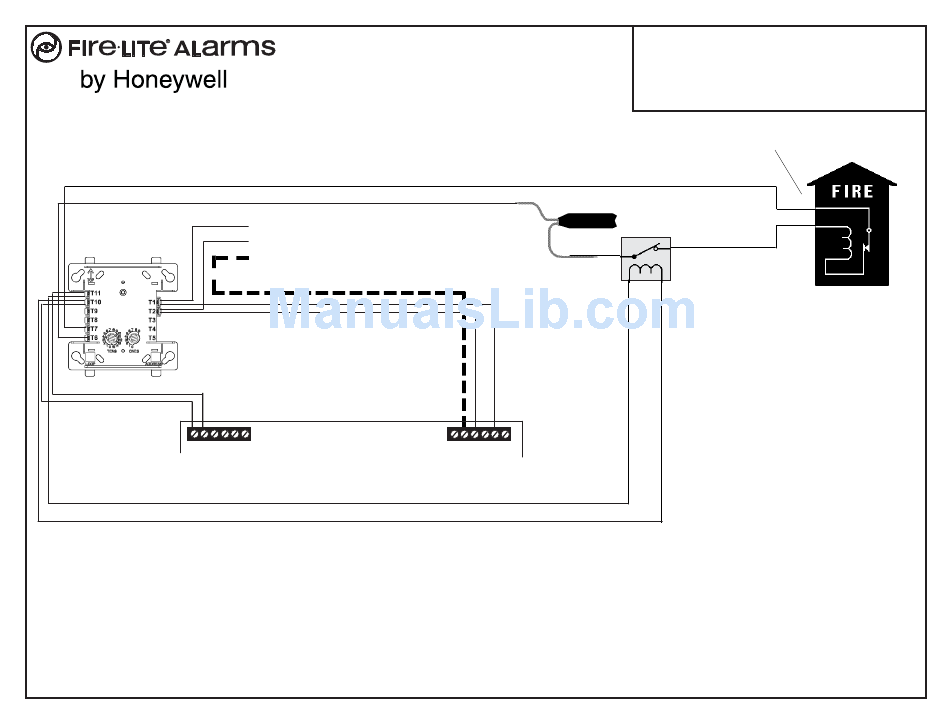

NFPA 72 Auxiliary Protective Signaling System
(Alarm Signal Transmission)
White Wire
Brown Wire
EOLR-1
Power Supervision Relay
Shield
+ -
B B SLC LOOP
TB6
MS-9200
Document 52033 Rev. C 02/19/08
MBT-1 Municipal Box Trip
for Fire-Lite Fire Alarm Control Panels
Document 52033 Rev C 02/19/08 ECN 08-116
Connect wires to two
red terminals on box
MBT-1
(Contacts shown in
energized position)
Red Black
Local Energy Municipal Box
Note: 10 ohms maximum loop re-
sistance due to wiring from power
supply to Municipal Box.
Gamewell Model M34-56
