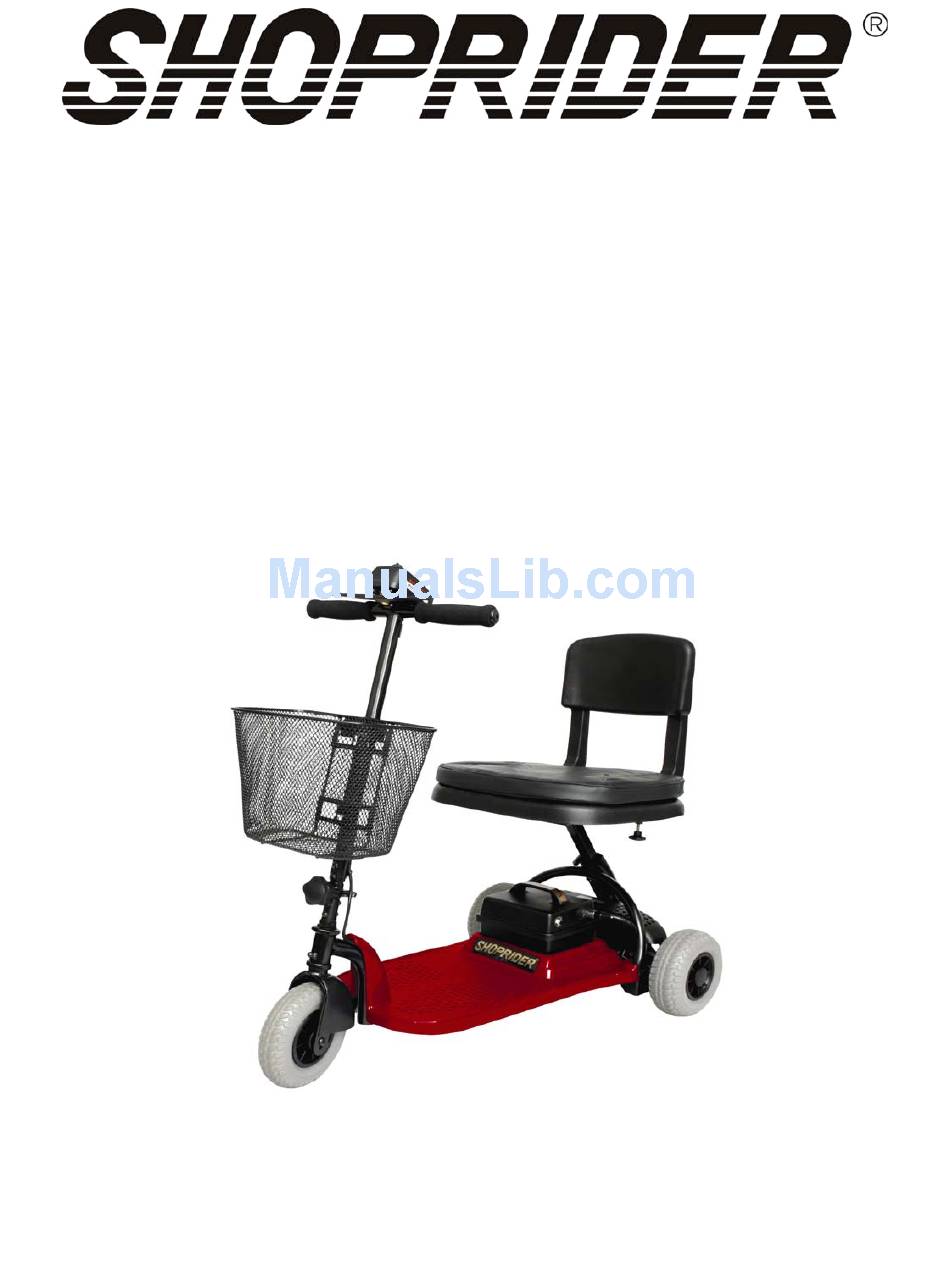

  • Page 1 Echo 3 ™ Model # SL73 Portable Scooter User Manual 12/7/2006...

  • Page 2: Table Of Contents

    Table of Contents INTRODUCTION/FEATURE GUIDE…………………………………………………..………. SAFETY ADVICE……………………………………………………………………….…...4 EMI WARNING………………………………………………………….……….………….. ADJUSTMENTS………………………………………………….…………………………..7 SCOOTER TILLER CONTROLS………………………………….……….……………..1 DRIVE/FREEWHEEL OPERATION…………………………………………….…………10 BATTERY PACK/ SERIAL NUMBER……………………………………………………….. STARTING TO DRIVE YOUR SCOOTER……………………………………..………….1 EXTRA GUIDELINES IN THE CONTROL OF YOUR SCOOTER……………….……. BATTERIES AND BATTERY CHARGING………………………………………..……….14 MAINTENANCE/ TROUBLE SHOOTING GUIDE………………………….…………..15 NOTES……………………….…………………………………………………..……….15 TECHNICAL SPECIFICATIONS………………………………………………………..16 QUARTERLY INSPECTION………………………………………………..…………….17...
  • Page 3 INTRODUCTION Congratulations on your purchase of the Shoprider® Echo scooter. The Echo is the ultimate combination of style, comfort and portability. The Echo goes with you wherever you go and can be assembled or disassembled in just seconds. The Echo is super light and compact, and can be stored in small areas such as the trunk or back seat of your car.

  • Page 4: Safety Advice

    • Make sure the tiller is properly adjusted to the user or damage and injury could result. • DO NOT transport in a vehicle WHILE seated on the scooter. Shoprider® will not be responsible for any injury or damage that might result.
  • Page 5 Shoprider® scooters may be susceptible to electromagnetic interference (EMI), which is a kind of interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radio, and cellular phones. The interference (from radio wave sources) can cause the scooter to release its brakes, move by itself, or move in unintended directions.
  • Page 6 EMI. NOTE! There is no easy way to evaluate the overall immunity of the scooter. 5. Report all incidents of unintended movement or braking to your Shoprider® provider, and note whether there are sources of EMI nearby.

  • Page 7: Adjustments

    ADJUSTMENTS Tiller Tightening Knob Figure 2 Adjustments for Transport (Fig 2) First remove the basket by lifting basket up and off bracket. Next release the seat (Refer to Figure 3). Disconnect the battery back by pushing release button in; the button is located on the side of the round metal connection plug in socket.

  • Page 8: Scooter Tiller Controls

    SCOOTER TILLER CONTROLS (FIG 4) Speed Controls The speed control allows you to set a speed between slow (turtle) and fast (rabbit). Battery Level Indicator Gauge Where the needle sits, shows the amount of charge in your batteries. The amount of charge will only show at its true level when the scooter is in drive.

  • Page 9: Drive/Freewheel Operation

    The anti-tip wheels are located at the rear of the scooter frame (Fig 5). The scooter should not be used unless the anti-tipping wheels are in place. Shoprider® is not responsible for damage or injury incurred due to improper or misuse of the scooter.

  • Page 10: Battery Pack/ Serial Number

    The scooter serial number is located under the battery pack. It is an alphanumeric combination of 13 numbers and letters. Shoprider recommends that you write the serial number down on the back of this manual for future reference. The battery pack is easily removed (refer to Fig.

  • Page 11: Starting To Drive Your Scooter

    STARTING TO DRIVE YOUR SCOOTER First Time Use Prior to using your Echo 3 Portable scooter for the first time, you must charge the batteries fully (refer to Battery Charging Procedures). Charging may take up to 12 hours. Charging the batteries completely prior to first time use will benefit battery efficiency. Failure to do so may cause permanent damage.

  • Page 12: Extra Guidelines In The Control Of Your Scooter

    EXTRA GUIDELINES IN THE CONTROL OF YOUR SCOOTER Ramps The stability of your scooter is governed by several factors such as the seating position, the angle of the slope and your height and weight. When approaching an incline, do so directly and not at an angle and where ever possible avoid making turns.

  • Page 13: Batteries And Battery Charging

    BATTERIES AND BATTERY CHARGING Batteries The Shoprider® Echo 3 Portable scooter is supplied with maintenance-free, sealed lead acid batteries. For easy handling, the batteries are contained within a battery pack. Battery life and performance may be affected by temperature, terrain, condition of battery, the weight of the user, and care of batteries.

  • Page 14: Maintenance/ Trouble Shooting Guide

    If the batteries are weak, severely discharged or old, a variety of problems may occur with the unit including charging problems, reduced speed, loss of range, and others. Please contact your local Shoprider® provider for battery replacement.

  • Page 15: Notes

    Notes: 12/7/2006...

  • Page 16: Technical Specifications

    TECHNICAL SPECIFICATIONS UNIT SPECIFICATIONS ECHO 3 Overall Dimensions: L x W x H 37”x20”x36” Front 1,8” Number, Size of Tires Rear 2, 8” Suggested User Weight MAX. 250 (on the Level Road) Weight of Heaviest Part (Front Chassis Assembly) Total Weight (w/ 12Ah Battery Pack, Basket, Seat) Battery Pack Module Weight _V_Ah...
  • Page 17 For your own safety, quarterly inspection and service on the product has to be performed and signed by an authorized provider. Maintenance records (below) should be kept at all times. The manufacturer / distributor / vendor will be indemnified from any product liability claim if the above maintenance / service requirement is not met.

  • Page 18: Notes

    Notes: 12/7/2006...
  • Page 19 Notes: 12/7/2006...
  • Page 20 It is not intended to be used by individuals with physical limitations that could prevent the user from operating this unit safely. Shoprider® disclaims all responsibility for any personal injury or property damage, which may occur as a result of improper or unsafe use of its products.
