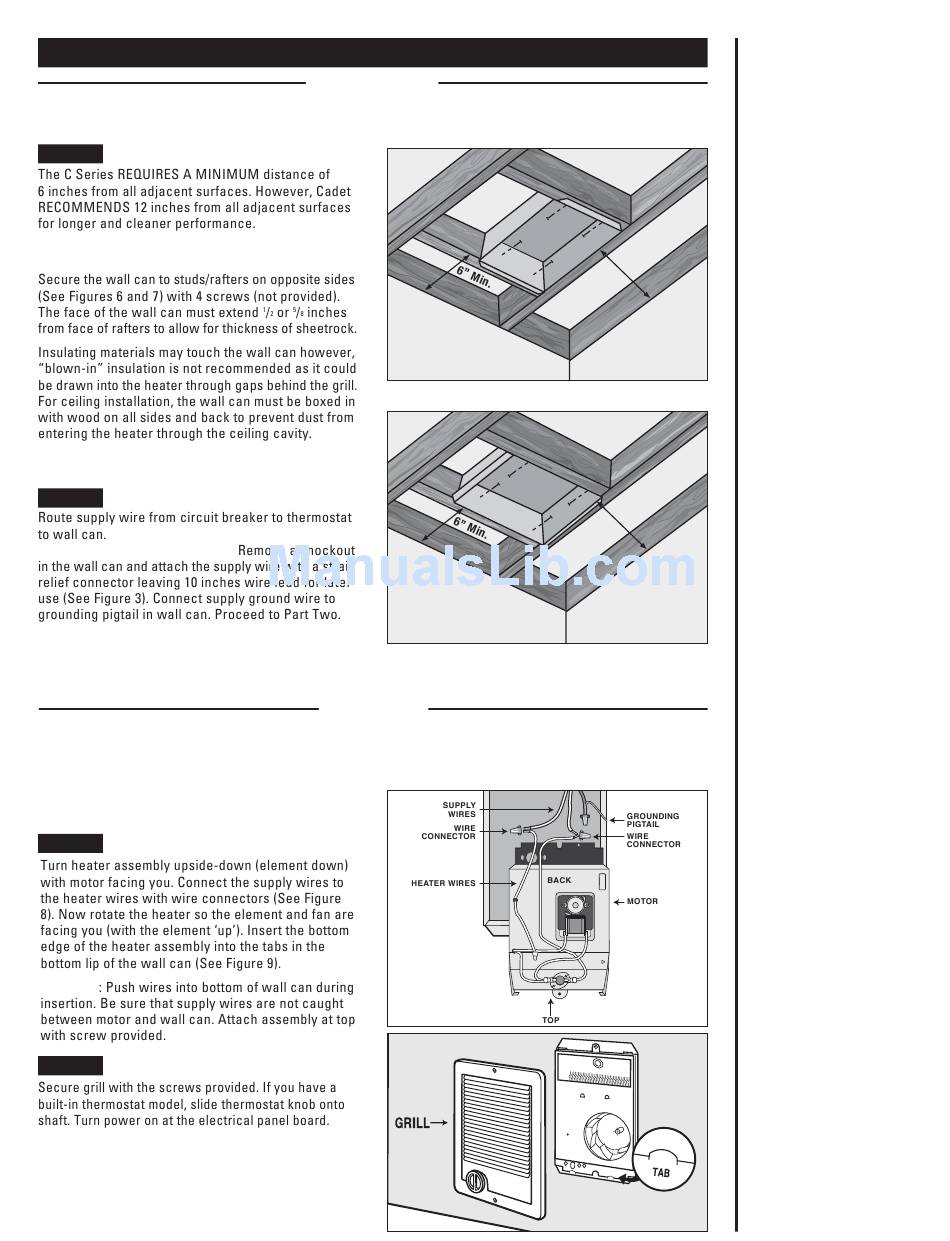

Cadet The Com-Pak Plus Owner's Manual page 3

Installation Instructions
How do I install for ceiling mount?
(for models up to 1500 Watts maximum)
Mount the Wall Can
STEP 1
Do not mount the heater in low-density fiberboard
or false ceilings.
Route Supply Wires
STEP 2
Models with a built-in thermostat are not
recommended for ceiling mount.
After you have followed all instructions in PART ONE
you are ready to install the heater assembly.
How do I insert the heater assembly
into the wall can?
Install Heater Assembly
STEP 1
Important
Install Grill
STEP 2
Warranty is void if any material is sprayed on the
element or blower.
Part One
Important:
Figure 6
Figure 7
Part Two
Risk of Electrical
Shock. Connect
grounding lead
to grounding wire
provided. Keep
all foreign objects
out of heater.
6" Min.
Risk of Fire.
Heater must be
kept clear of
all obstructions:
a minimum
6" Min.
of 3 feet in front;
6 inches on both
sides and above.
Heaters must be
kept clean of lint,
dirt and debris.
Turn the electrical
power off at the
electrical panel
board (circuit
breaker or fuse
box) and lock or
tag the panel board
door to prevent
someone from
Figure 8
turning on power
while you are
working on the
heater. Failure to
do so could result
in serious electrical
shock, burns, or
possible death.
Figure 9
WARNING
WARNING
WARNING
3
