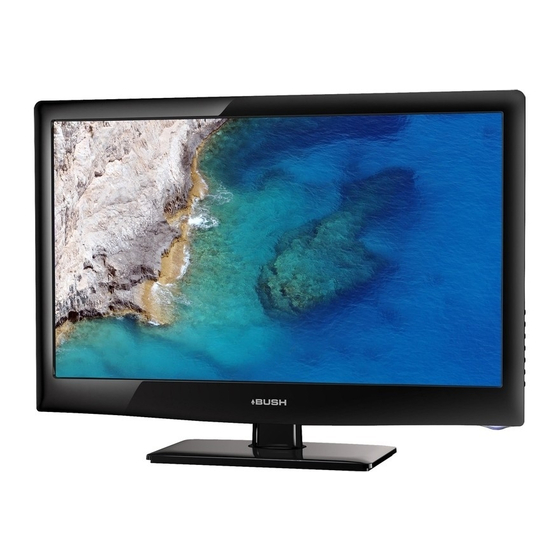

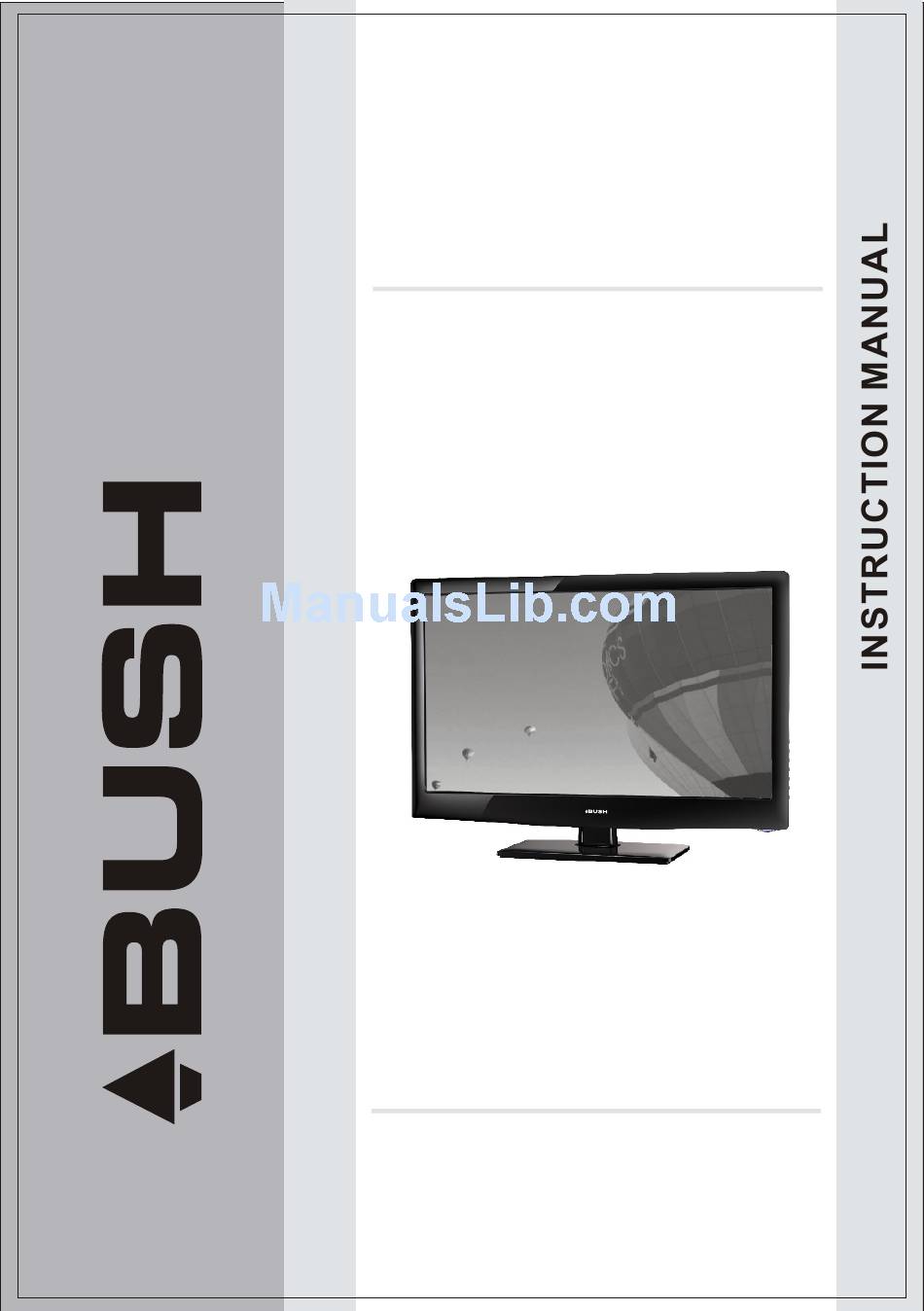

- Page 1 LED LCD TV IDLED1901 IDLED2201 IDLED2401 The Gold Technical Support Line: 1902 215 259 Personal Product Support (Charges will apply at $2.95 per minute)
-
Page 2: Introduction
INTRODUCTION Thank you for buying this Bush product, which is designed to give you many years of trouble-free service. You may already be familiar with using a similar unit, but please take time to read these instructions. They are designed to familiarise you with the unit s m any f eatures and to ensure you get the very best from your purchase. -
Page 3: Table Of Contents
Contents INTRODUCTION................1 SAFETY INSTRUCTIONS...............3-4 BASE STAND INSTALLATION ............5 WALL MOUNTING INSTALLATION ............ 6 INSTALLATION................7 -10 REMOTE CONTROL..............11-12 OPERATION................13-18 TROUBLESHOOTING..............19 TECHNICAL SPECIFICATIONS...........20-22 WARRANTY..................23... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS 1. Do not use this TV near dripping or splashing water. Do not use any liquids near this TV. 2. Clean witha dry cloth only. 3. Do not block any ventilation openings and install in accordance with the manufacturers instructions. - Page 5 SAFETY AND WARNINGS Important Safety Instructions Warning: To reduce the risk of electric shock, do not remove the cover or back as there are no user-serviceable parts inside. Refer all servicing to a qualified technician. Warning: To prevent fire or electric shock hazard, do not expose the unit to any liquids or moisture.
-
Page 6: Base Stand Installation
INSTALLATION ACCESSORIES Remote Control x 1 User s M anual x1 Battery(AAA) x 2 AV Cable x 1 Base Stand Assembly Instruction 2. Place the Stand on the TV as shown 1. Place the TV with the display side down below. -
Page 7: Wall Mounting Installation
INSTALLATION WALL MOUNTING INSTALLATION GUIDELINES This television can be wall mounted as follows: 1.Place the LED LCD Television onto a solid surface. Please place some soft material over the front of the screen to protect it from any damage. 2.Remove the screws from the lower part of the television, where the base joins to the TV, and take away the stand (put the stand somewhere safe for future use). - Page 8 INSTALLATION Front panel Remote Control Sensor. Indicator LCD LED: BLUE POWER ON. STANDBY. Side buttons (refer to image below) Side Buttons SOURCE MENU VOL+ VOL- STANDBY 1 SOURCE Press the SOURCE Button to display the Input Source list. 2 MENU Press the MENU Button to display the Main Menu.
- Page 9 INSTALLATION Rear Sockets DC 12V/3A HDMI2 Outlined below is the Rear Sockets provided - AV Input, R/L Audio Input, DC Power Source Input, YPbPr Input and HDMI2 Input. Note: 1. The AV Input and YPbPr Input share one audio channel. 2.
- Page 10 INSTALLATION DC 12V/3A HDMI2 PRESET MODE V.Freq.(Hz) H.Freq.(KHz) RESOLUTION 720*400 31.47 640*480 31.47 800*600 35.156 800*600 37.88 800*600 48.08 1024*768 48.36 1024*768 56.48...
- Page 11 INSTALLATION AV EQUIPMENT Please follow one of the below instructions when connecting your TV to other devices. AV OUTPUT HDMI1 PC AUDIO VIDEO EQUIPMIENT TO VIDEO INPUTS HDMI TO AUDIO INPUTS VIDEO EQUIPMENT with YPbPr Yellow (video) White(audio L) Red(audio R or Pr) Blue(Pb) Green(Y) DC 12V/3A...
-
Page 12: Remote Control
REMOTE CONTROL REMOTE CONTROL 1:POWER:Press to turn the unit on or off. 2:NUMERIC KEY:Press for direct access to channels. 3:TV MENU:Press to display TV Main Menu. POWER MUTE 4:CURSOR:Press to scroll through the Menu. AUDIO 5:CH.LIST:Press to display the channel list. 6:VOL+/- :Press t o adjust the sound level. -
Page 13: Remote Control
REMOTE CONTROL TELETEXT Teletext is an information system broadcasted by certain channels which will provide detailed program information. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language(cable networks, satellite channels, etc.) Press: You will obtain : This is used to access and/or exit the Teletext mode.A summary will... -
Page 14: Operation
OPERATION Installation Guide Please select an OSD Language Cesky English Magyar Polski Fran ais Espanol Dansk Hrvatski Nederlands Portugues Deutsch Italiano Norsk Pycck Country Australia Bulgaria Denmark Germany Italy Austria Croatia Finland Greece Luxembourg Belgium Czech France Hungary Netherlands This will appear during the first time installation and when you reset the TV. You can choose any of the above languages or countries. - Page 15 OPERATION 2)DTV Manual Tuning - Select the DTV Manual Tune option in the Channel Menu, to conduct a Manual scan. Use the Buttons manually scan through the DTV Manual Tune channels, then press OK to search. DTV Manual Tuning VHF CH Press OK to search Nomal Good...
-
Page 16: Sound Menu
OPERATION Favourite Use the Buttons to select the program you wish to set to your favourites list and press the FAV Button to set. The favourite Icon will then be displayed next to the program. Press the FAV Button again to cancel setting. -
Page 17: Option Menu
OPERATION 5.OPTION MENU To enter the Option Menu, press MENU button and the press buttons to select the Option Menu. Once in Option Menu, press buttons to select the settings you wish to adjust. Press MENU button to return to the Main Menu. OSD Language English Audio Languages Subtitle Languages... -
Page 18: Lock Menu
OPERATION FACTORY RESET NOTE: If you wish to reset your TV, please select the Restore Factory Default option, this will clear all settings. 6.LOCK MENU To enter the LOCK Menu, press MENU button and then press buttons to select the LOCK Menu. The default password is 6666. - Page 19 OPERATION Sample1.ts Resolution: 720x576 AudioTrack: ½ Subtitle: Size: 30574 KBytes Close 8.EPG Menu(Electronic Program Guide). The EPG Menu is used to look at what is being broadcasted in DTV or Radio modes. Press the EPG Button to access the EPG Menu. You will receive detailed program information of the channel you are currently watching as well as the 7 Day Program guide.
-
Page 20: Troubleshooting
TROUBLESHOOTING Potential Issues Inspection Check Picture Audio Check the Antenna Position Snow Noise and that it is connected Check Antenna Position and Ghost Normal audio that it is connected correctly Check for electrical Interference Noise interference Check if mute function is on. Normal Picture Check AV cables are Mute... -
Page 21: Technical Specifications
INTRODUCTION Model: IDLED1901 LCD : Screen size 18.5 inch Resolution 1366x768 Aspect Ratio 16:9 Display colours 16.2M Brightness 250 CD/M Contrast ratio 1000:1 Response time 8 ms View angle 160(H)/160(V) Digital TV: DVB-T TV system Analog TV: PAL/SECAM Audio: MPEG2 Audio Layer I&II DVB-T decode Video: MPEG2 Transport MP@HL Demodulator : COFDM... - Page 22 INTRODUCTION Model: IDLED2201 LCD : Screen size 21.6 inch Resolution 1366x768 Aspect Ratio 16:9 Display colours 16.2M Brightness 250 CD/M 1000:1 Contrast ratio Response time 10ms View angle 160(H)/160(V) Digital TV: DVB-T TV system Analog TV: PAL/SECAM Audio: MPEG2 Audio Layer I&II DVB-T decode Video: MPEG2 Transport MP@HL Demodulator : COFDM...
- Page 23 INTRODUCTION Model: IDLED2401 LCD : Screen size 23.6 inch Resolution 1920x1080 Aspect Ratio 16:9 Display colours 16.2M Brightness 250 CD/M Contrast ratio 1000:1 Response time 8 ms View angle 160(H)/160(V) Digital TV: DVB-T TV system Analog TV: PAL/SECAM Audio: MPEG2 Audio Layer I&II DVB-T decode Video: MPEG2 Transport MP@HL Demodulator : COFDM...
-
Page 24: Warranty
In the unlikely event that your product fails to work normally, please contact the Bush Warranty on 1800 509 394 (Australia) or 0800 450 259 (New Zealand) and have your receipt of purchase on hand. - Page 25 PO BOX 6287 Silverwater NSW 1811 Www.bushaustralia.com.au...
