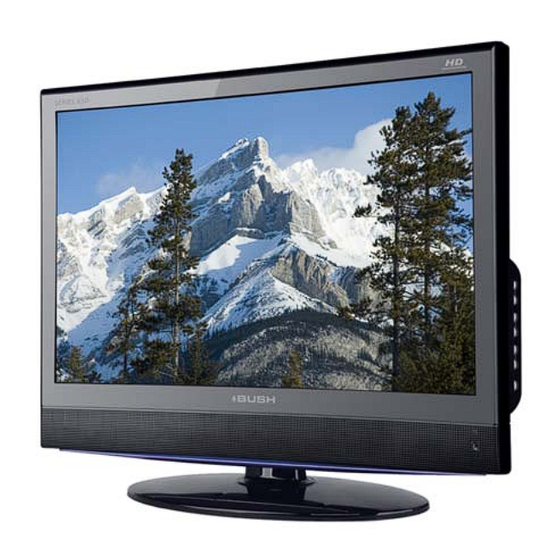

- Page 1 IDLCD3211HDV The Gold Technical Support Line: 1902 215 259 Personal Product Support (Charges will apply at $2.95 per minute)
-
Page 2: Introduction
INTRODUCTION Thank you for buying this Bush product, which is designed to give you many years of trouble-free service. You may already be familiar with using a similar unit, but please take time to read these instructions. They are designed to familiarise you with the unit s many features and to ensure you get the very best from your purchase. -
Page 3: Table Of Contents
CONTENTS 1. INTRODUCTION.................1 2. SAFETY INSTRUCTIONS............3 3. INSTALLATION................ACCESSORIES................4 FRONT PANEL................KEY BOARD ................REAR PANEL................. ANTENNA CONNECTION............... CONNECTING TO PC..............PC PRESET................... CONNECTING TO AV EQUIPMENTS..........4. REMOTE CONTROL..............10 BATTERY INSTALLATION............... KEYS FUNCTION................11 5. OPERATION................12 BASIC OPERATION................12 TELETEXT.................. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS 1. Do not use this apparatus near water. 2. Clean only with dry cloth. 3. Do not block any ventilation openings. Install in accordance with the manufacturers instructions. 4. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 5: Installation
INSTALLATION ACCESSORIES Infrared Remote Control.... 1 User s Manual ......1 Battery(AAA)......2 FRONT PANEL Indicator LED: GREEN POWER ON. STANDBY. Remote control sensor. Key board(see next page). Power:Press the standby button on the rear panel, to turn the unit on. Press button ,again to... -
Page 6: Rear Panel
INSTALLATION KEY BOARD VOL+ VOL- MENU INPUT standby CH+/CH- the CH+/CH- buttons In TV mode to change the channel up and down. In MENU mode, to select the menu items . VOL+/VOL- to adjust the sound level. Press VOL+/VOL- In Menu mode, press VOL+/VOL- buttons to select items. -
Page 7: Antenna Connection
INSTALLATION ANTENNA CONNECTION Note: Aerial connections IEC female Input impendance unbalanced... -
Page 8: Connecting To Pc
INSTALLATION CONNECTING TO PC STEPS: Be sure both the TV and computer are set to Power off. Connect VGA and audio cable Connect the power cord Power on the TV switch the input source to VGA mode Power on the PC This sequence is very important. -
Page 9: Pc Preset
INSTALLATION PC PRESET PRESET MODE(recommended resolution is 1366*768@60Hz) V.Freq.(Hz) H.Freq.(KHz) RESOLUTION 640*480 31.5 800*600 37.9 1024*768 48.4 1280*1024 64.0 1600*1200 64.7 1680*1050 1920*1200... -
Page 10: Connecting To Av Equipments
INSTALLATION CONNECTING TO AV EQUIPMENTS connection to This TV provides three groups of AV, two groups of YPbPr for convenient groups of HDMI ports for HD signal input. VCR, DVD or other video equipment and You can use the input terminals on the TV set rear as follows. with SPDIF Input VIDEO EQUIPMENT with AV VIDEO EQUIPMENT with AV... -
Page 11: Remote Control
REMOTE CONTROL BATTERY INSTALLATION 1. Remove the battery cover. 2. Inserting the 2 AAA 1.5V batteries making sure the polarity (+ or -) of the batteries matches the polarity marks inside the unit. 3. Mount the battery cover. Replace with new batteries when the TV set begins to show the following symptoms: Operation is unsteady or erratic, or sometimes the TV set does not function with Remote Control Unit. -
Page 12: Keys Function
REMOTE CONTROL REMOTE CONTROL 【MENU】 Press the Menu button to turn on the menu. KEYS FUNCTION SETUP 【 】 Press the Setup button to display the DVD menu. 【 EXIT 】 Press the Exit button to exit the menu. Use the Arrow buttons to navigate th e m enu. 【... -
Page 13: Operation
OPERATION BASIC OPERATION TURN ON /OFF THE UNIT 1. Connect the TV unit to the power source using the power cord. 2. Turn on the main power switch. 3. When the power indicator is red, the TV is in Standby mode. Press the " "... -
Page 14: Teletext
OPERATION TELETEXT Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language. Display Teletext 1.Select a TV station with a teletext signal. -
Page 15: Epg
OPERATION only available in DTV mode The EPG (Electronic Programme Guide) menu is used to look at what is being broadcast on a DTV or Radio channel at a later point in time. Press the EPG button to access the EPG menu, t he detailed programme information of the channel currently being viewed will be displayed. -
Page 16: Menu Operation
OPERATION Using the Function Menu overview Press the MENU button to display the Ma in Menu. cycle buttons Press the MENU button or through the main menu: Channel , Picture, Sound,Timer, Option and Lock. Press the buttons select the subme nu you want. - Page 17 OPERATION Return DTV Manual Tuning only available in DTV mode Press the " "buttons to select a channel. Press the " ENTER " button to search. DTV Manual Tuning When a channel is found, the searching process will stop. UHF CH The channel will be stored with current channel number.
- Page 18 OPERATION Picture Menu 1.Press the MENU button to select the Picture Menu. buttons to cycle through the Main Menu . Press 2.Press the buttons to highlight the item to be adjusted. 3.Press the buttons to adjust the submenu or subitem. 4.When you are satisfied with your adjustment, press the EXIT button to exit the Main Menu.
- Page 19 OPERATION Sound Menu 1.Press the MENU button to select the Sound Menu. buttons to cycle through the Main Menu . Press 2.Press the buttons to highlight the item to be adjusted. 3.Press the buttons to adjust the submenu or subitem. 4.When you are satisfied with your adjustment, press the EXIT button to exit the Main Menu.
- Page 20 OPERATION Option Menu 1.Press the MENU button to select the Option Menu. Press buttons to cycle through the Main Menu 2.Press the buttons to highlight the item to be adjusted. 3.Press the buttons to adjust the submenu or subitem. 4.When you are satisfied with your adjustment, press the EXIT button to exit the Main Menu. Blue Screen Press the "...
-
Page 21: Set Password
OPERATION Set Password Press the NUMBER buttons to enter your new Please enter password password ---- Note If you forget your password, please enter the ---- Confirm supercode 1090. This code will always unlock your TV. Block Program( Only available in TV mode Block Program Programme Edit Press the "... -
Page 22: Dvd Operation
DVD OPERATION Caution DVD SIDE PANEL This DVD Player has a Class 1 laser which may be harmful to your eyes. Do not attempt to disassemble the cabinet or make any adjustments. Refer all servicing to a qualified professional. Disc tray OPEN/CLOSE STOP NEXT... - Page 23 DVD OPERATION 3 . FAST REVERSE/FAST FOR W ARD buttons, Press the to fast forward or fast reverse. 【 】/【 】 The DVD player uses the following speeds: BACKWARD X 2 FORWARD X 2 BACKWARD X 4 FORWARD X 4 BACKWARD X 8 FORWARD X BACKWARD X 20...
- Page 24 DVD OPERATION 7. USB/SD/MS/MMC In the DVD mode you can connect a USB device to the USB port or insert SD/MS/MMC card into card slot. the SD/MS/MMC Press the INPUT button to display the signal source menu, then select DVD. Press the SD/USB button to select three modes (CARD MODE, USB MODE or DISC MODE).
- Page 25 DVD OPERATION .REPEAT Press the REPEAT button to repeat the selected title or chapter. ＲＥＰ１ ＲＥＰ ＯＦＦ ＲＥＰ ＲＥＰ ＡＡＬＬ ＲＥＰ ＡＬＬ 9.TITLE Press the TITLE button to stop DVD play and return to the disc Title Menu. Press the buttons and ENTER button to se lect the title/chapter you desire.
- Page 26 DVD OPERATION 10.SYSTEM SETUP SCREEN SAVER To select the SCREEN SAVER item, press the ON or OFF. The SCREEN SAVER buttons to select SCREEN SAVER player picture is still , function will start-up when the DVD PASSWORD there is no disc, if it has stopped playing or the disc gate has RATING DEFAULT 60 seconds.
-
Page 27: Troubleshootings
DVD TROUBLESHOOTING If you have any questions, please consult the troubleshooting guide below: Unless specifically stated, the following applies to DVDs, Audio and Photo discs. NO PLAYBACK • Check that the disc is inserted CORRECTLY, the printed side has to face towards the rear of the unit to be read ( if the printed side is facing towards the front of there will be no playback). -
Page 28: Troubleshootings
TV TROUBLESHOOTING Problem Check Picture Audio Check the Antenna position, Snow Noise direction and connection. Check the Antenna position, Ghost Normal audio direction and connection. Check the Antenna connection. Check for electrical interference Interference Noise by moving other electrical products away from the TV. Check if the Mute function is on. -
Page 29: Technical Specification
TECHNICAL SPECIFICATIONS LCD : ViewIng Picture Size(diagonal) Resolution 1366x768 Aspect Ratio 16:9 16.7M Display colours Brightness 500 CD/M Contrast ratio 4000:1 6.5 ms Response time 176(H)/176(V) View angle Digital TV: DVB-T TV system Analog TV: PAL Audio: MPEG2 Audio Layer I&II DVB-T decode Video: MPEG2 Transport MP@HL Demodulator : COFDM... -
Page 30: Warranty
