Summary of Contents for Bush IDLCD2211HDV

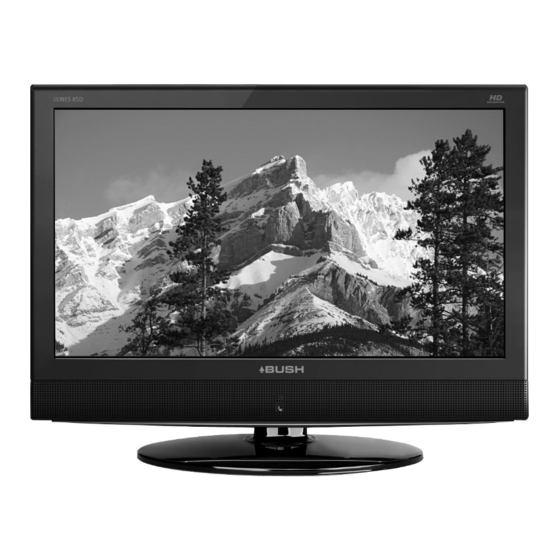

- Page 1 IDLCD2211HDV The Gold Technical Support Line: 1902 215 259 Personal Product Support (Charges will apply at $2.95 per minute)
-
Page 2: Introduction
INTRODUCTION Thank you for buying this Bush product, which is designed to give you many years of trouble-free service. You may already be familiar with using a similar unit, but please take time to read these instructions. They are designed to familiarise you with the unit s many features and to ensure you get the very best from your purchase. -
Page 3: Table Of Contents
CONTENTS 1. INTRODUCTION.................1 2. SAFETY INSTRUCTIONS............3 3. INSTALLATION................ACCESSORIES................4 FRONT PANEL................KEY BOARD ................REAR PANEL................. ANTENNA CONNECTION............... CONNECTING TO PC..............PC PRESET................... CONNECTING TO AV EQUIPMENTS..........4. REMOTE CONTROL..............10 BATTERY INSTALLATION............... KEYS FUNCTION................11 5. OPERATION................12 BASIC OPERATION................12 TELETEXT.................. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS 1. Do not use this apparatus near water. 2. Clean only with dry cloth. 3. Do not block any ventilation openings. Install in accordance with the manufacturers instructions. 4. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 5: Installation
INSTALLATION ACCESSORIES Infrared Remote Control.... User s Manual ......1 Battery(AAA)......2 FRONT PANEL Indicator LED: GREEN POWER ON. STANDBY. Remote control sensor. INFO Key board(see next page). Power:Press the standby button ENTER on the rear panel, to turn the unit on. MENU LIST Press... -
Page 6: Rear Panel
INSTALLATION KEY BOARD standby INPUT MENU VOL- VOL+ INPUT Press to display the Input Source Menu. 2 MENU Press to display the Main Menu. VOL+/VOL- Press to adjust the sound level. In Menu mode, press VOL+/VOL- buttons to select items. desired menu CH+/CH- press the CH+/CH- buttons... -
Page 7: Antenna Connection
INSTALLATION ANTENNA CONNECTION HEADPHONE JACK Note: Aerial connections IEC female Input impendance unbalanced... -
Page 8: Connecting To Pc
INSTALLATION CONNECTING TO PC STEPS: Be sure both the TV and computer are set to Power off. Connect VGA and audio cable Connect the power cord Power on the TV switch the input source to VGA mode Power on the PC This sequence is very important. -
Page 9: Pc Preset
INSTALLATION PC PRESET PRESET MODE(recommended resolution is 1024*768@60Hz) V.Freq.(Hz) H.Freq.(KHz) RESOLUTION 720*400 31.47 640*480 31.47 800*600 35.156 800*600 37.88 800*600 46.88 800*600 48.08 1024*768 48.36 1024*768 56.48 1024*768 60.02... -
Page 10: Connecting To Av Equipments
INSTALLATION CONNECTING TO AV EQUIPMENTS This TV provides three groups of AV, two groups of YPbPr for convenient connection to VCR, DVD or other video equipment, HDMI for HD signal input. and a You can use the input terminals on TV set rear as follows. VIDEO EQUIPMENT with YPbPr VIDEO EQUIPMENT with YPbPr HEADPHONE JACK... -
Page 11: Remote Control
REMOTE CONTROL BATTERY INSTALLATION 1. Remove the battery cover. 2. Inserting the 2 AAA 1.5V batteries making sure the polarity (+ or -) of the batteries matches the polarity marks inside the unit. 3. Mount the battery cover. Replace with new batteries when the TV set begins to show the following symptoms: Operation is unsteady or erratic. -
Page 12: Keys Function
REMOTE CONTROL REMOTE CONTROL 【MENU】 Press the Menu button to turn on the menu. 【EXIT】 Press the Exit button to exit the menu. KEYS FUNCTION 】 / the menu. 【 】 / 【 】 【 【 】 Use the Arrow buttons to navigate ENTER Press the Enter button to select and confirm your desired options. -
Page 13: Operation
OPERATION BASIC OPERATION TURN ON /OFF THE UNIT 1.Connect the TV unit to the power source using the power cord. 2. Turn on the main power switch. 3. When the power indicator is red, the TV is in Standby mode. Press the " "... -
Page 14: Teletext
OPERATION TELETEXT Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language. Display Teletext 1.Select a TV station with a teletext signal. -
Page 15: Menu Operation
OPERATION Using the Function Menu overview Many function settings and adjustments of the TV will begin from the Main Menu. cycle buttons Press the MENU button to display the Main Menu. Press the MENU button or the through the main menu : Channel , Picture, Sound, Timer, Option and Lock. - Page 16 OPERATION Picture Menu 1. Press the MENU button to select the Picture Menu. Press the buttons to cycle through the Main Menu. 2. Press the buttons to highlight the item to be adjusted. 3. Press the buttons to adjust the submenu or subitem. 4.
-
Page 17: Off Time
OPERATION Surround Press the buttons to switch the surround sound. Timer Menu 1. Press the MENU button to select the Timer Menu. Press the buttons to cycle through the Main Menu to select it. 2. Press the buttons to highlight the item to be adjusted. 3. - Page 18 OPERATION Advance Audio Language Press the buttons to set the default Audio Language. Subtitle Language Press the buttons to set the default Subtitle Language. Hearing Impaired When hearing Impaired is ON, the TV screen will turn on the subtitles and turn them off when the functions is off.
-
Page 19: Set Password
OPERATION If you forget your private password, the super password is "1225", this will always unlock your TV. Press the NUMBER button s on the remote control to set the new password. When the new password has been input twice, the password is set. The TV will go back to the previous menu. Set Password Press the button to see the Set Password submenu. -
Page 20: Dvd Operation
DVD OPERATION DVD SIDE PANEL Caution This DVD Player has a Class 1 laser which may be harmful to your eyes. Do not attempt to disassemble the cabinet or make SD/MS/MMC any adjustments. Refer all servicing to a qualified professional. Disc Tray OPEN/CLOSE PLA Y... - Page 21 DVD OPERATION 3. FAST REVERSE/FAST FORWARD buttons, Press the to fast forward or fast reverse. 【 】/【 】 The DVD player uses the following speeds: BACKWARD X 2 FORWARD X 2 BACKWARD X 4 FORWARD X 4 BACKWARD X 8 FORWARD X BACKWARD X 20 FORWARD X 20...
- Page 22 DVD OPERATION 7. USB/SD/MS/MMC In the DVD mode you can connect a USB device to the USB port or insert SD/MS/MMC card into the SD/MS/MMC card slot. Press the INPUT button to display the signal source menu, then select DVD. Press the SD/USB button to select three modes (CARD MODE, USB MODE or DISC MODE).
- Page 23 DVD OPERATION .REPEAT Press the REPEAT button to repeat the selected title or chapter. ＡＬＬ ＲＥＰ ＲＥＰ ＡＡＬＬ ＲＥＰ ＯＦＦ ＲＥＰ ＣＨＡＰＴＥＲ ＴＩＴＬＥ ＲＥＰ 9.TITLE Press the TITLE button to stop DVD play and return to the disc Title Menu. Press the buttons and OK button to se lect the title/chapter you desire.
-
Page 24: Dvd Operation
DVD OPERATION 10.SYSTEM SETUP SCREEN SAVER To select the SCREEN SAVER item, press the buttons to select ON or OFF. The SCREEN SAVER SCREEN SAVER player picture is still , function will start-up, when the DVD PASSWORD there is no disc, if it has stopped playing or the disc gate has RATING DEFAULT been opened for... -
Page 25: Troubleshootings
TROUBLESHOOTING If you have any questions, please consult the troubleshooting guide below: Unless specifically stated, the following applies to DVDs, Audio and Photo discs. NO PLAYBACK • Check that the disc is inserted CORRECTLY, the printed side has to face towards the rear of the unit to be read ( if the printed side is facing towards the front of there will be no playback). -
Page 26: Troubleshootings
TV TROUBLESHOOTING Problem Check Picture Audio Check the Antenna position, Snow Noise direction and connection. Check the Antenna position, Ghost direction and connection. Normal audio Check the Antenna connection. Check for electrical interference Interference Noise by moving other electrical products away from the TV. Check if the Mute function is on. -
Page 27: Technical Specification
TECHNICAL SPECIFICATIONS LCD : ViewIng Picture Size(diagonal) Resolution 1366x768 Aspect Ratio 16:9 16.7M Display colours Brightness 400 CD/M Contrast ratio 1000:1 5 ms Response time 170(H)/160(V) View angle Digital TV: DVB-T TV system Analog TV: PAL Audio: MPEG2 Audio Layer I&II DVB-T decode Video: MPEG2 Transport MP@HL Demodulator : COFDM... -
Page 28: Warranty
The manufacturer disclaims any liability for incidental or consequential damaged. This warranty is in addition to, and does not diminish, your statutory or legal rights. PO BOX 6287 Silverwater NSW 1811 www.bushaustralia.com.au Bush Warranty: 1800 509 394 Australia Bush Warranty: 0800 450 259 New Zealand -27-... - Page 29 PO BOX 6287 Silverwater NSW 1811 www.bushaustralia.com.au...
