Burley Hitch Flex Connector Instructions

Hitch Flex Connector
Replacement Instructions For:
Round Tow Bar Kit 950037
Square Tow Bar Kit 950038
iMPOrTANT
THiS PArT iS DeSigNeD FOr uSe ON BurLeY
TrAiLerS ONLY. uSe ON ANY OTHer TrAiLer
CAN reSuLT iN SeriOuS iNJurY.
Your new Burley flex connector
Note:
should exactly match your old Burley
connector.
• Square tow bar = 4 ridges
• Round tow bar = smooth
These pieces are NOT
interchangeable.
950037 Contents:
(1) Hitch connector for round tow bar
(1) Lock nut
(1) Safety strap assembly
(1) Bolt
(2) D-ring/clip
950038 Contents:
(1) Hitch connector for square tow bar
(1) Lock nut
(1) Safety strap assembly
(1) Bolt
(2) D-ring/clip
For use with Burley
standard and forged
metal hitches
1. Remove trailer from bicycle.
2. Remove existing bolt, safety strap, lock
nut and D-ring/clip from flex connector
which is located at the end of tow
bar.

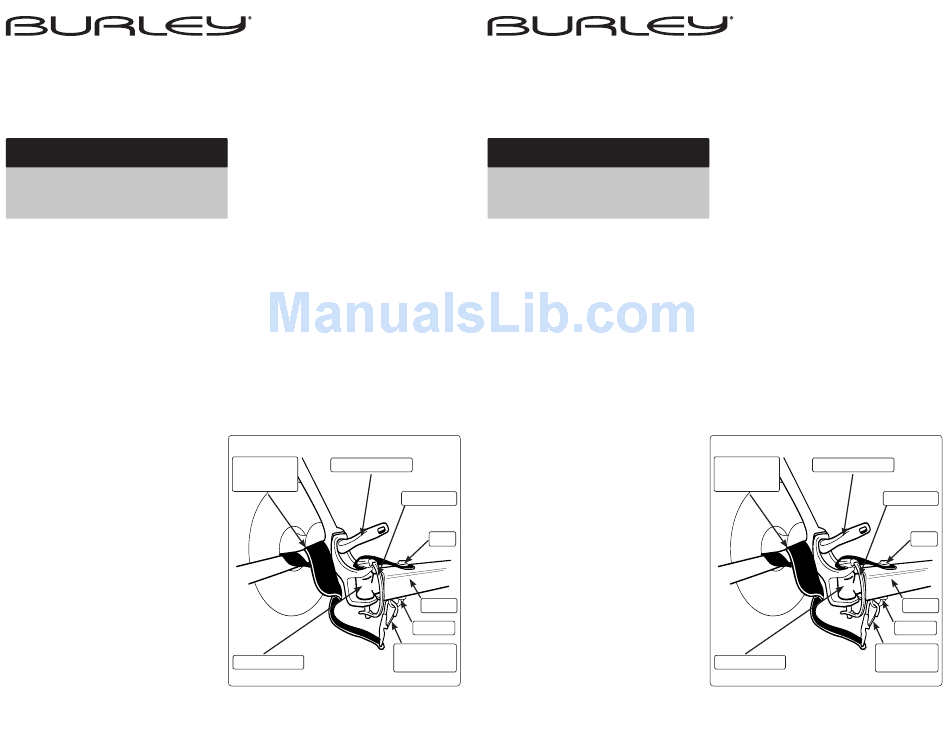

Figure 1
3. Remove old flex connector from end
of tow bar and insert new connector,
aligning hole in connector with holes
in tow bar.
Safety strap
Quick release Lever
wrapped twice
around chainstay
retaining Pin
Hook fastened to
D-ring/clip
Flex Connector
under tow bar
Figure 1:
Forged Hitch Shown
Hitch Flex Connector
Replacement Instructions For:
Round Tow Bar Kit 950037
Square Tow Bar Kit 950038
iMPOrTANT
THiS PArT iS DeSigNeD FOr uSe ON BurLeY
TrAiLerS ONLY. uSe ON ANY OTHer TrAiLer
CAN reSuLT iN SeriOuS iNJurY.
Your new Burley flex connector
Note:
should exactly match your old Burley
connector.
• Square tow bar = 4 ridges
• Round tow bar = smooth
These pieces are NOT
interchangeable.
950037 Contents:
(1) Hitch connector for round tow bar
(1) Lock nut
(1) Safety strap assembly
(1) Bolt
(2) D-ring/clip
950038 Contents:
(1) Hitch connector for square tow bar
(1) Lock nut
(1) Safety strap assembly
(1) Bolt
(2) D-ring/clip
For use with Burley
Bolt
standard and forged
metal hitches
1. Remove trailer from bicycle.
Tow Bar 2. Remove existing bolt, safety strap, lock
nut and D-ring/clip from flex connector
D-ring/Clip
which is located at the end of tow
bar.
Figure 1
3. Remove old flex connector from end
of tow bar and insert new connector,
aligning hole in connector with holes
in tow bar.
Safety strap
Quick release Lever
wrapped twice
around chainstay
retaining Pin
Hook fastened to
D-ring/clip
Flex Connector
under tow bar
Figure 1:
Forged Hitch Shown
Bolt
Tow Bar
D-ring/Clip
