Related Manuals for Frigidaire FRS26ZNJS

Summary of Contents for Frigidaire FRS26ZNJS

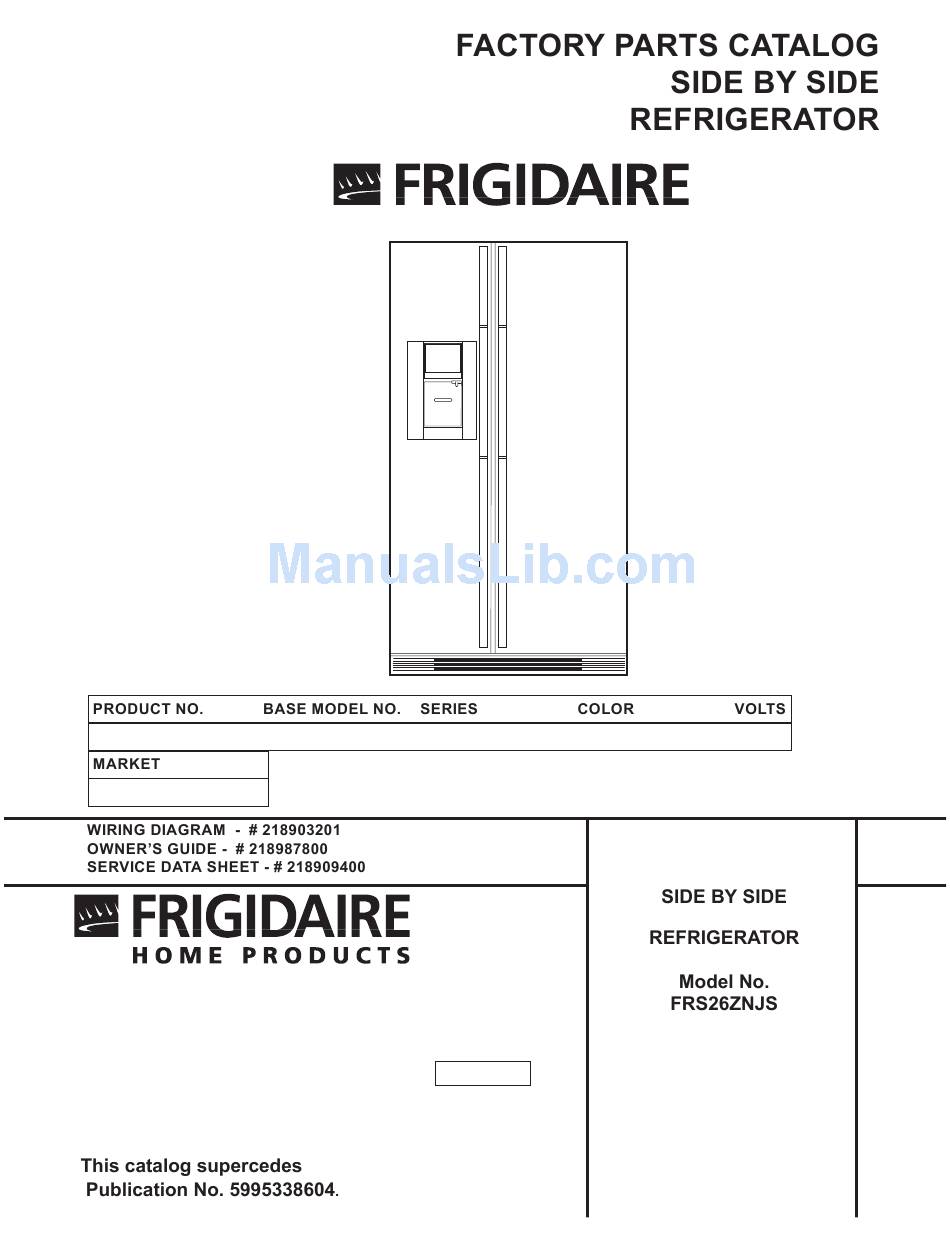

  • Page 1 FRS26ZNJSB0 FRS26ZNJS R134a stain/black North American 101 Masters Blvd. Anderson, SC 29624 Publication No. 5995344008 000926 -EN/SERVICE/KHB ©2000 White Consolidated Industries, Inc. All rights reserved...

  • Page 2: Freezer Door

    Publication No. FRS26ZNJSB0 5995344008 FREEZER DOOR 09/00...
  • Page 3 FRS26ZNJSB0 Publication No. 5995344008 FREEZER DOOR 215734323 Gasket-frzr door,black ,magnetic 5303288950 Support-door rack,RH/LH 5303323484 Support-door rack,white ,LH 5303323485 Support-door rack,white ,RH 218807028 Rack-door,w/end caps 215474052 Rack-door 218510401 Panel-inner door,frzr 5303918179 Panel-ext frzr door, stainless, w/foam insulatn 5303289522 Door Stop 218762708 Handle-door,gunmetal 218578600 Screw-door stop mtg, phl truss hd, 10-16 x 3/4...

  • Page 4: Refrigerator Door

    Publication No. FRS26ZNJSB0 5995344008 REFRIGERATOR DOOR 09/00...
  • Page 5 FRS26ZNJSB0 Publication No. 5995344008 REFRIGERATOR DOOR 215734324 Gasket-refr door,black ,magnetic 215403201 Panel-inner door,refr 5303304563 Door-dairy 5303289522 Door Stop 5303918180 Panel-ext refr door, stainless steel, w/foam insulatn 218762708 Handle-door,gunmetal 218578600 Screw-door stop mtg, phl truss hd, 10-16 x 3/4 5303289320 Bearing-hinge 218811641 Trim-door handle,gunmetal ,upper 218811640...
  • Page 6 Publication No. FRS26ZNJSB0 5995344008 CABINET 09/00...
  • Page 7 FRS26ZNJSB0 Publication No. 5995344008 CABINET 215637602 Cover-air duct 5303209814 Nut,"U" type ,8-15A ,fan mtr mtg 215637401 Cover-evap coil,lower 10A* 5308009617 Washer,ext tooth lock ,#10 ,grounding 5303208309 Plug-hole,factory test 215230400 Plug-harness hole 5303289043 Support-air duct cvr,2.55" long 5303289044 Support-air duct cvr,1.83" long 5303289062 Bolt-roller adj,hex head ,5/16-24 x 7/8 215314301...
  • Page 8 Publication No. FRS26ZNJSB0 5995344008 SHELVES 09/00...
  • Page 9 FRS26ZNJSB0 Publication No. 5995344008 SHELVES 5303298147 Trim-basket 218298003 Shelf-freezer,sliding ,wire 5304405879 Shelf-freezer,fixed wire 240324101 Shelf-pizza 215029009 Shelf-"Spill-Safe",cantilever ,sliding 215124343 Cover-storage pan 5303301393 Control-humidity 5304412757 Trim-storage pan cvr, upper, w/humidity hole 218015302 Trim-storage pan cvr,snap-on ,front 218015402 Trim-storage pan cvr,snap-on ,rear 5303289500 Pan-storage,upper 5303289501...
  • Page 10 Publication No. FRS26ZNJSB0 5995344008 CONTROLS 09/00...
  • Page 11 FRS26ZNJSB0 Publication No. 5995344008 CONTROLS 215028605 Knob-damper control 5308000010 Fan Blade,red ,evaporator fan 5308000124 Ring-fan orifice 5300157666 Bushing-motor mtg,(2) 5303205118 Bracket-motor mtg,front 215809600 Diffuser-air 13 # 215426200 Motor-evap fan 215474201 Washer,"slinger" ,nylon ,evap fan shaft 5303205119 Bracket-motor mtg,rear 5303001179 Light Bulb/Lamp,40 W 5303289050 Socket-light/lamp 5303296805...
  • Page 12 Publication No. FRS26ZNJSB0 5995344008 SYSTEM 09/00...
  • Page 13 FRS26ZNJSB0 Publication No. 5995344008 SYSTEM 218787900 Condenser 5303208866 Spacer-cond tube,black 5303289026 Spacer-tube 5304406721 Spacer-cond tube,round ,5/8 OD x .81"lg 5303289029 Clip-cond mtg,(4) 218679603 Block-evap coil,styrofoam ,(2) 218944001 Drier-filter,R134a System 218959901 Wiring Harness,main 5* # 215005200 Wiring Harness,refr controls 5* # 218815101 Wiring Harness,frzr controls 218960201...
  • Page 14 Publication No. FRS26ZNJSB0 5995344008 DISPENSER 09/00...
  • Page 15 FRS26ZNJSB0 Publication No. 5995344008 DISPENSER 5308010366 Tube-water inlet,0.25 OD x 93" ,plastic 218832301 Tube-water inlet,inlet valve ,to filter 218859901 Tube-water inlet,inlet valve ,to filter 218505303 Deflector-ice disp,black 215484300 Heater-door housing 218852405 Housing-dispenser,gunmetal 218284800 Switch-actuator,micro 218874901 Module-dispenser 218209800 Spring,dispenser door 218836205 Knob-selector,gunmetal 218925405 Knob-selector,gunmetal...

  • Page 16: Ice Container

    Publication No. FRS26ZNJSB0 5995344008 ICE CONTAINER 09/00...
  • Page 17 FRS26ZNJSB0 Publication No. 5995344008 ICE CONTAINER 5304404344 Auger-ice 5304404343 Cam-drive 218815300 Container-ice 5304404346 Drum-ice disp 218815400 Front-ice container 5304404337 Bar-drive 5304404359 Gate 5303001179 Light Bulb/Lamp,40 W 5303289050 Socket-light/lamp 5304404345 Drive Blade 18 # 218980701 Motor-auger 5304404335 Wiring Harness,auger motor 5304404332 Cover-motor 215285100 Nut-drive...

  • Page 18: Ice Maker

    Publication No. FRS26ZNJSB0 5995344008 ICE MAKER 09/00...
  • Page 19 FRS26ZNJSB0 Publication No. 5995344008 ICE MAKER 5308010366 Tube-water inlet, 0.25 OD x 93" ,plastic 218832301 Tube-water inlet, inlet valve ,to filter 218859901 Tube-water inlet, inlet valve ,to filter 218949201 Tube-water inlet, formed, plastic, dispenser 3206348 Spring,shut-off arm 3206299 Label,ID plate 3206301 Gear 3206303...

  • Page 20: Wiring Schematic

    Publication No. FRS26ZNJSB0 5995344008 WIRING SCHEMATIC 09/00...

  • Page 21: Wiring Diagram

    FRS26ZNJSB0 Publication No. 5995344008 WIRING DIAGRAM # = Fast-moving Parts 09/00 * = Non-Illustrated Parts...
