Frigidaire FRS26H5AS Factory Parts Catalog

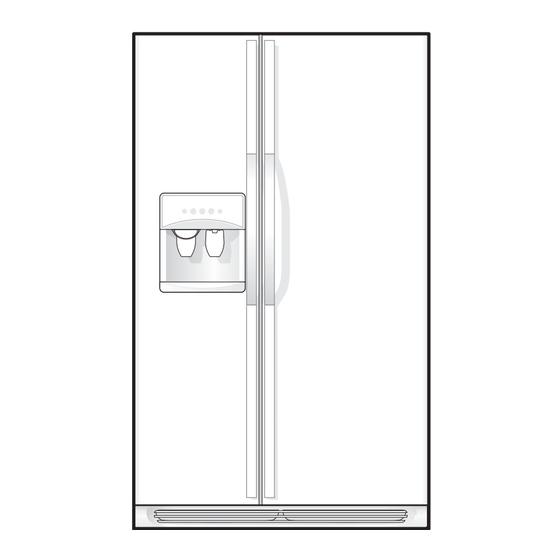

Side by side refrigerator
Hide thumbs Also See for FRS26H5AS:
Table of Contents

Advertisement

Quick Links

N58L00001.eps N58FCCBBB2.eps N58RCCBBB5.eps N58BAAAAB1.eps
N58SBBHBD12.eps N58TAAAAB3.eps N58CAAAAC0.eps N58XBAAAB0.eps
N58YBAAAA0.eps N58I115.eps W241526901A.eps S241526901A.eps
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
Product No.
FRS26H5ASBA
Series
R134a
Color
stain/black
Volts
115
Wiring Diagram
241526901
Owner's Guide
240389311
Market
North America
Service Data Sheet 240389615
Publication No.
5995402962
04/01/30
(EN/SERVICE/DCS)
357
Copyright
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FRS26H5AS
©
All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRS26H5AS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Frigidaire FRS26H5AS

Summary of Contents for Frigidaire FRS26H5AS

  • Page 1 Product No. FRS26H5ASBA Series R134a Color stain/black Volts Wiring Diagram 241526901 Owner's Guide 240389311 Market North America Service Data Sheet 240389615 SIDE-BY-SIDE N58L00001.eps N58FCCBBB2.eps N58RCCBBB5.eps N58BAAAAB1.eps REFRIGERATOR N58SBBHBD12.eps N58TAAAAB3.eps N58CAAAAC0.eps N58XBAAAB0.eps N58YBAAAA0.eps N58I115.eps W241526901A.eps S241526901A.eps ELECTROLUX HOME PRODUCTS, INC. Model No. P.O.

  • Page 2: Freezer Door

    Publication No: 5995402962 FRS26H5ASBA FREEZER DOOR 01/04...
  • Page 3 FRS26H5ASBA Publication No: 5995402962 FREEZER DOOR POS. NO PART NO. DESCRIPTION 240390606 Gasket-frzr door, black, magnetic 240334201 Bin-door, frzr-upper 240351601 Bin-door 240554228 Door-frzr, stainless steel, complete assy 240581906 Door Stop, black, frzr 240359108 Handle-door, black, LH 218781100 Screw, pan head, 8-18 x 0.625 240598401 Screw, 10-32 x 1/2 240521302...

  • Page 4: Refrigerator Door

    Publication No: 5995402962 FRS26H5ASBA REFRIGERATOR DOOR 01/04...
  • Page 5 FRS26H5ASBA Publication No: 5995402962 REFRIGERATOR DOOR POS. NO PART NO. DESCRIPTION 240390605 Gasket-refr door, black, magnetic 240323001 Bin-door, pseudo, bottom 240326203 Door-dairy 240581905 Door Stop, black, ref 240451982 Door-refr, stainless steel, complete assy 240359103 Handle-door, black, RH 218781100 Screw, pan head, 8-18 x 0.625 240598401 Screw, 10-32 x 1/2 240521302...
  • Page 6 Publication No: 5995402962 FRS26H5ASBA CABINET N58BAAAAB1 01/04...
  • Page 7 FRS26H5ASBA Publication No: 5995402962 CABINET POS. NO PART NO. DESCRIPTION 240435904 Cover-air duct 240475904 Cover-evap coil, lower 5303208309 Plug-hole, factory test 14 # 240505801 Switch, light/lamp 14A# 215486600 Switch-light/lamp 218252200 Screw, #8 truss hd, 10-32CA x 0.500 240457701 Plate-door closer 240402701 Screw-#10-32 x 1/4 flat hd 240335501...
  • Page 8 Publication No: 5995402962 FRS26H5ASBA SHELVES 01/04...
  • Page 9 FRS26H5ASBA Publication No: 5995402962 SHELVES POS. NO PART NO. DESCRIPTION 241510604 Trim-basket 240338802 Shelf-freezer, flip-up 240338704 Shelf-freezer, fixed wire 240324101 Shelf-pizza 240355208 Shelf-"Spill-Safe", fixed 240355207 Shelf-"Spill-Safe", cantilever, half width, fixed 240350108 Shelf-"Spill-Safe", cantilever, sliding 240350702 Cover-crisper pan, upper 240362101 Clip-slide, cover-crisper 240350902 Cover-crisper pan, lower 240351005...
  • Page 10 Publication No: 5995402962 FRS26H5ASBA CONTROLS 01/04...
  • Page 11 FRS26H5ASBA Publication No: 5995402962 CONTROLS POS. NO PART NO. DESCRIPTION 5308000010 Fan Blade, red, evaporator fan 5300157666 Bushing-motor mtg, (2) 5303292396 Bracket-motor mtg, front 13 # 241537301 Motor-evap fan 215474201 Washer, "slinger", nylon, evap fan shaft 5303292397 Bracket-motor mtg, rear 240436702 Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature 16 #...
  • Page 12 Publication No: 5995402962 FRS26H5ASBA SYSTEM 01/04...
  • Page 13 FRS26H5ASBA Publication No: 5995402962 SYSTEM POS. NO PART NO. DESCRIPTION 240333603 Condenser 218679607 Block-evap coil, styrofoam, (2) 218944001 Drier-filter, R134a System 240346402 Harness-wiring, machine compt 240449601 Harness-wiring 241537802 Harness-wiring, control box 14 # 5303918253 Defrost Heater Kit 15 # 5303918284 Evaporator Kit 5308000110 Strap-evap/heater, aluminum, (2)

  • Page 14: Ice And Water Dispenser

    Publication No: 5995402962 FRS26H5ASBA ICE & WATER DISPENSER 01/04...
  • Page 15 FRS26H5ASBA Publication No: 5995402962 ICE & WATER DISPENSER POS. NO PART NO. DESCRIPTION 218976409 Tube-water 218976901 Tube-water inlet, inlet valve, to ice maker 218976903 Tube-water inlet, inlet valve, to filter 218976907 Tube-water inlet, valve to door 5304422012 Cover-module, black 5304422013 Module-dispenser 5304426649 Spring-torsion...

  • Page 16: Ice Container

    Publication No: 5995402962 FRS26H5ASBA ICE CONTAINER 01/04...
  • Page 17 FRS26H5ASBA Publication No: 5995402962 ICE CONTAINER POS. NO PART NO. DESCRIPTION 5304428402 Auger-ice 5304404343 Cam-drive 218815300 Container-ice, bucket only 5304404346 Drum-ice disp 218815400 Front-ice container 5304404337 Bar-drive 5304404359 Gate 5303001179 Light Bulb/Lamp, 40 W 5303289050 Socket-light/lamp 5304404345 Drive Blade 18 # 241551503 Motor-auger 5304404335...

  • Page 18: Ice Maker

    Publication No: 5995402962 FRS26H5ASBA ICE MAKER 01/04...
  • Page 19 FRS26H5ASBA Publication No: 5995402962 ICE MAKER POS. NO PART NO. DESCRIPTION 218976409 Tube-water 218976901 Tube-water inlet, inlet valve, to ice maker 218976903 Tube-water inlet, inlet valve, to filter 218976907 Tube-water inlet, valve to door 240561701 Seal-water inlet, inlet valve, to ice maker 5304420650 Spring, shut-off arm 3206299...

  • Page 20: Wiring Schematic

    Publication No: 5995402962 FRS26H5ASBA WIRING SCHEMATIC 01/04...

  • Page 21: Wiring Diagram

    FRS26H5ASBA Publication No: 5995402962 WIRING DIAGRAM 01/04 # Functional Parts * Non-Ilustrated Parts...
