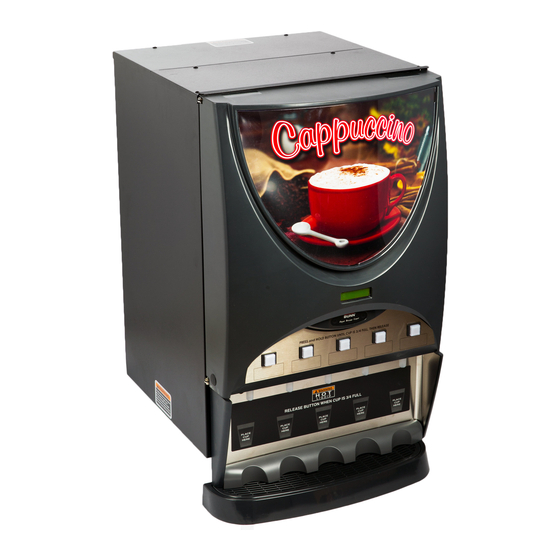

Bunn IMIX-5S Illustrated Parts Catalog
  1. Manuals
  2. Brands
  3. Bunn Manuals
  4. Coffee Maker
  5. IMIX-5S+
  6. Illustrated parts catalog

Bunn IMIX-5S Illustrated Parts Catalog

Hide thumbs Also See for IMIX-5S:

Advertisement

Quick Links

See also: Illustrated Parts Catalog
IMIX
-5S+
®
ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
www.bunn.com
38988.0000C 02/08 ©2006 Bunn-O-Matic Corporation

Advertisement

loading
Need help?

Need help?

Do you have a question about the IMIX-5S and is the answer not in the manual?

Questions and answers

Related Manuals for Bunn IMIX-5S

Summary of Contents for Bunn IMIX-5S

  • Page 1 ILLUSTRATED PARTS CATALOG Designs, materials, weights, specifications, and dimensions for equipment or replacement parts are subject to change without notice. BUNN-O-MATIC CORPORATION POST OFFICE BOX 3227 SPRINGFIELD, ILLINOIS 62708-3227 PHONE: (217) 529-6601 FAX: (217) 529-6644 www.bunn.com 38988.0000C 02/08 ©2006 Bunn-O-Matic Corporation...
  • Page 2 SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS TITLE PAGE NO. Auger Drive and Hopper Assembly ......................12 Covers, Panels and Drip Tray ........................4 Dispense Valves and Lines ..........................20 Door, Lamp, Dispense Switches and Panels ....................8 Electrical Controls ............................22 Mixing/Whipper Chambers and Drive Motor ....................14 Numerical Index ............................24 Tank, Heater and Overflow Protection ......................16 38988 060206...
  • Page 4 IMIX -5S+ COVERS, PANELS AND DRIP TRAY ® 35 34 33 31 30 29 28 27 26 25 24 21 P3635 38988 022708...

  • Page 5: Covers, Panels And Drip Tray

    COVERS, PANELS AND DRIP TRAY ITEM PART NO. QTY. DESCRIPTION 35916.1001 Cover, Top Rear - BLK (Includes item 41) 01311.0003 Screw, Truss Head BLK #8-32 x .25" 35915.1001 Cover, Top Front - BLK 01311.0003 Screw, Truss Head BLK #8-32 x .25" 01382.0002 Screw, Truss Head BLK #6-32 x .375"...
  • Page 6 IMIX -5S+ COVERS, PANELS AND DRIP TRAY ® (Continued) 35 34 33 31 30 29 28 27 26 25 24 21 P3635 38988 022708...
  • Page 7 COVERS, PANELS AND DRIP TRAY ITEM PART NO. QTY. DESCRIPTION 36739.0000 Cover, Drip Tray 36670.0000 Drip Tray 36224.1002 Panel, Lower Access (Includes item 25) 01311.0000 Screw, Truss Head #8-32 x .25" 38986.0000 Schematic 120V 38986.0001 Schematic 230V 36743.0000 Cap, Splash Panel Left 38044.0000 Screw, Pan Head Plastite #6 x .375"...
  • Page 8 IMIX -5S+ DOOR, LAMP, DISPENSE SWITCHES AND PANELS ® P3636 38988 091407...

  • Page 9: Door, Lamp, Dispense Switches And Panels

    DOOR, LAMP, DISPENSE SWITCHES AND PANELS ITEM PART NO. QTY. DESCRIPTION 36656.0001 Panel, Lamp 01360.0002 Screw, Pan Head Plascrew #6 - 32 x .375" 32806.0000 Lamp, Fluorescent - 7 Watts 32807.0001 Lamp Holder, Fluorescent 36650.0000 Lens, Fixed 02336.0000 Screw, Truss Head #4-40 x .375" 36768.0000 Display, Graphics 36768.0004...
  • Page 10 IMIX -5S+ DOOR, LAMP, DISPENSE SWITCHES AND PANELS ® (Continued) P3636 38988 091407...
  • Page 11 DOOR, LAMP, DISPENSE SWITCHES AND PANELS ITEM PART NO. QTY. DESCRIPTION 36659.0000 Panel, Door - Lower 01311.0000 Screw, Truss Head #8-32 x .25" 01403.0000 E-Ring, External .188" Shaft 34667.0000 Keeper, Door Latch 02336.0000 Screw, Truss Head #4-40 x .375" 36669.0000 Bracket, Keeper Mounting 01311.0001 Screw, Truss Head #8-32 x .25"...
  • Page 12 IMIX -5S+ AUGER DRIVE AND HOPPER ASSEMBLY ® 11 10 12 9 P3536 38988 060206...

  • Page 13: Auger Drive And Hopper Assembly

    AUGER DRIVE AND HOPPER ASSEMBLY ITEM PART NO. QTY. DESCRIPTION 37010.1001 Hopper Assy (Includes one each of items 1-12) 36653.0001 Lid, Hopper 32337.0000 Mixing Blade 32386.0001 Disk, Agitator (30 Tooth) 28067.0000 Bushing, Auger Drive Shaft 26940.0002 Shaft, Auger Drive 37011.0001 Hopper 39442.0000 Auger, Wire (use w/30-tooth Disk)
  • Page 14 MIXING/WHIPPER CHAMBERS AND DRIVE MOTOR IMIX -5S+ ® P3179 38988 060206...

  • Page 15: Mixing/Whipper Chambers And Drive Motor

    MIXING/WHIPPER CHAMBERS AND DRIVE MOTOR ITEM PART NO. QTY. DESCRIPTION 28295.0000 Fan & Bracket Assembly 120V 01311.0001 Screw, Truss Head - Locking #8-32 x .25" 28297.0001 Hose, Vacuum 25732.0000 Steam Collector 25733.0003 Mixing Chamber 25734.0000 Whipper Chamber 25734.0002 Whipper Chamber (IMIX -5SC) 25736.0000 Dispense Tip - Drink (0.34"...
  • Page 16 IMIX -5S+ ® TANK, HEATER AND OVERFLOW PROTECTION P3637 38988 091407...

  • Page 17: Tank, Heater And Overflow Protection

    TANK, HEATER AND OVERFLOW PROTECTION ITEM PART NO. QTY. DESCRIPTION 39133.0000 Tank 00970.0000 Nut, Keps #8-32 36226.0000 Bracket, Tank Mounting Upper 00908.0000 Nut #8-32 01311.0001 Screw, Truss Head - Locking #8-32 x .25" 12398.0000 Gasket, Tank Heater 36741.1000 Tank Heater Kit, 1700W 120V (Includes item 3) 00908.0000 Nut, Hex #8-32 20936.1000...
  • Page 18 TANK, HEATER AND OVERFLOW PROTECTION IMIX -5S+ ® (Continued) P3637 38988 091407...
  • Page 19 TANK, HEATER AND OVERFLOW PROTECTION ITEM PART NO. QTY. DESCRIPTION 20976.0017* Tube, Silicone .375" ID x 2.0" (Order item 34) 20976.0055* Tube, Silicone .375" ID x 9.0" (Order item 34) 36233.0000 Valve, Water Inlet 32283.0000 Screw, Pan Head M4 x 6MM 35942.0000* Bracket, Tank Mounting Lower 00970.0000...
  • Page 20 IMIX -5S+ DISPENSE VALVES AND LINES ® P3538 38988 091407...

  • Page 21: Dispense Valves And Lines

    DISPENSE VALVES AND LINES ITEM PART NO. QTY. DESCRIPTION 26116.1002 Valve, Liquid Dispense 120V (Includes item 2) 01326.0000 Screw, Truss Head #10-32 x .25" 24733.0011 O-Ring 37970.0000 Grommet, Valve Mounting 28526.0027* Tube, Silicone .312" ID x 16.5" (Order item 9) 21801.0002 Tube .375"...
  • Page 22 IMIX -5S+ ELECTRICAL CONTROLS ® P3638 38988 091407...

  • Page 23: Electrical Controls

    ELECTRICAL CONTROLS ITEM PART NO. QTY. DESCRIPTION 00970.0000 Nut, Keps #8-32 - Power Cord Ground 00715.0000 Adapter Washer, Strain Relief 00713.0000 Bushing, Strain Relief 28327.0002 Ballast 120V 39642.0000 Ballast 230V 01382.0000 Screw, Truss Head #6-32 x .38" 38853.0000 Bracket 01311.0001 Screw, Locking #8-32 x .25"...
  • Page 24 NUMERICAL INDEX PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. 00656.0000......7 20976.1001......19 32906.0001......15 36743.0000......7 00619.0002......7 20976.1002......19 33801.0001......19 36743.0001......5 00669.0004......9 21801.0002....17,21 34362.0000......9 36766.0000......
