Bunn iMIX-3 Installation & Operating Manual
  1. Manuals
  2. Brands
  3. Bunn Manuals
  4. Coffee Maker
  5. IMIX-3
  6. Installation & operating manual

Bunn iMIX-3 Installation & Operating Manual

Bunn imix-3: operating manual
Hide thumbs Also See for iMIX-3:

Advertisement

Table of Contents

See also: Service & Repair Manual
IMIX
-3
®
IMIX
-4
®
IMIX
-5
®

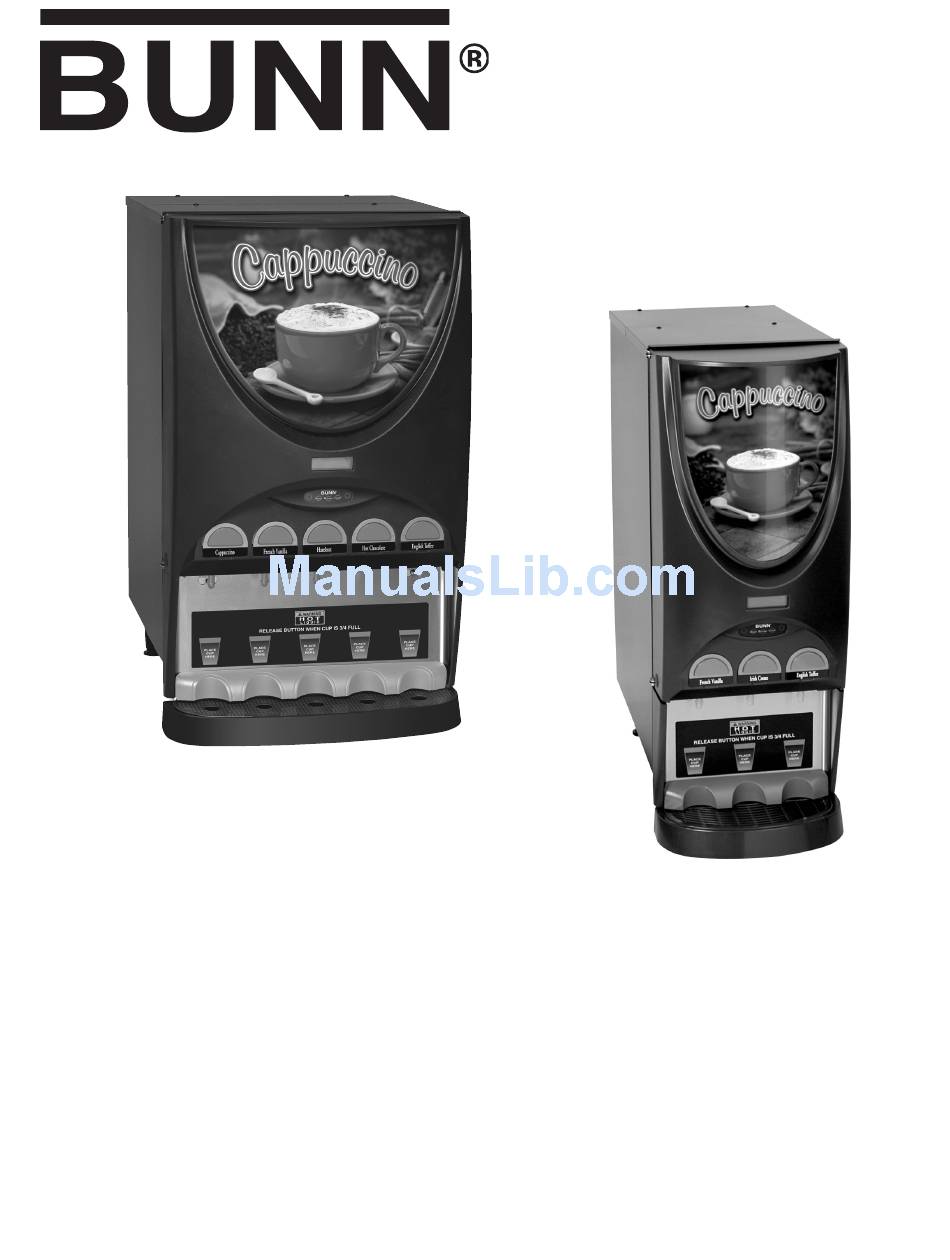

INSTALLATION & OPERATING MANUAL
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601
FAX: (217) 529-6644
To obtain the Illustrated Parts Catalog, visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE,
and the quickest way to obtain the catalog. Contact Bunn-O-Matic Corporation at 1-800-286-6070 to obtain a paper
copy of the required Illustrated Parts Catalog mailed via U.S. Postal Service.
www.bunnomatic.com
37510.0000E 09/07 ©2004 Bunn-O-Matic Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iMIX-3 and is the answer not in the manual?

Questions and answers

Related Manuals for Bunn iMIX-3

Summary of Contents for Bunn iMIX-3

  • Page 1 To obtain the Illustrated Parts Catalog, visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain the catalog. Contact Bunn-O-Matic Corporation at 1-800-286-6070 to obtain a paper copy of the required Illustrated Parts Catalog mailed via U.S. Postal Service.
  • Page 2 SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.

  • Page 3: User Notices

    READ THE ENTIRE OPERATING MANUAL BEFORE BUYING OR USING THIS PRODUCT THIS APPLIANCE IS HEATED WHENEVER CONNECTED TO A POWER SOURCE 00831.0000F 3/98 ©1998 BUNN-O-MATIC CORPORATION 00831.0000 This equipment must be installed to comply with the Basic Plumbing Code of the Building Officials and Code Administrators International, Inc.

  • Page 4: Initial Setup

    INITIAL SET-UP 1. Apply the four non-skid pads from the parts box to the bottom of the legs. 2. Remove the drip tray assembly, drip tray bracket, and splash panel assembly from the parts box. 3. Place a set of key holes in the drip tray bracket over the lower two screws in the panel below the hopper access door;...

  • Page 5: Plumbing Requirements

    90 psi to reduce it to 50 psi. The water inlet fitting is 1⁄4” flare. NOTE - Bunn-O-Matic recommends 1⁄4” copper tubing for installations of less than 25 feet and 3⁄8” for more than 25 feet from the 1⁄2”...

  • Page 6: Initial Fill & Heat

    INITIAL fill & heat 1. Turn on the water supply and connect the dispenser to the power source. 2. Water will automatically flow into the tank to the proper level and then shut-off. This will take less than ten minutes. 3.

  • Page 7: Draining The Hot Water Tank

    5. Pull the clamped end of the silicone tube out of the dispenser and direct it into a drain or a container large enough to hold the volume of water in the tank (7.3 gal for iMIX-4/5 and 4.4 gal for iMIX-3).
  • Page 8 Adjust tank temperature TANK TEMP XXX° (190° F maximum) EXIT Adjust minimum tank ready temper- READY TEMP XXX° ature for lockout (185° maximum) EXIT Select setting cup size by Time (seconds) or SET CUP SIZE by Example (Portion Control models only) EXMPL TIME Press same dispense button to top off...
  • Page 9 To access the programming mode, and to scroll through different function screens, the programming switches shown are used. There are five of switches that will be used for setup of the dispenser. PROGRAMMING THE DISPENSER DISPENSE READY BUNN iMIX STOP ontrol A. Enter program mode and advance to next menu B.
  • Page 10 Place the “NORMAL/PROGRAM/RINSE” switch in the “PROGRAM” position. Press button A (page 9) below the BUNN logo on front of the door until the “SET CUP SIZE” menu is reached. (Refer to menu J, page 13) Press button D (page 9) to select programming by “EXAMPLE”. Place proper cup under dispense tip for station you desire to set.
  • Page 11 PROGRAMMING THE DISPENSER (cont.) Press and release right switch (advance to next menu), “TANK TEMP XXX°” appears on screen. TANK TEMP XXX° READY TEMP XXX° Portion control Self Serve models models only continue to J STRENGTH ADJ. ? (page 12) ENTER PASSWORD CALIBRATION LOCKS/DISABLES ?
  • Page 12 PROGRAMMING THE DISPENSER (cont.) SET FLAVOR 1 BY TASTE Goes to next station. Returns to (A) (page 10) after last station. Adjust hopper motor speed for station for station selected DRINK STRENGTH 1 PRESS DISPENSE TO CHECK TASTE TASTE 1 OK ? Goes to next station.
  • Page 13 PROGRAMMING THE DISPENSER (cont.) LOW POWDER LOCK ? EXIT DISPENSE LOCKOUT EXIT RINSE ALARM ? EXIT RINSE ALARM TIME HEAD 1 DISABLE ? XX hours (+) EXIT Goes to next station. RINSE LOCKOUT ? Continues after last EXIT station. SET PASSWORD ? XXXX Returns to (G) (page 11)
  • Page 14 37510 012805...
  • Page 15 37510 012805...
  • Page 16 37510 090407...
  • Page 17 37510 090407...
