Specifications and Dimensions

Raised Vent Model No.
Stud wall
Wall board
3"
(76mm)
1 15/16"
(49mm)
3/8"
(10mm)
Stiffener
6 5/8"
(168mm)
1 5/8" x 16"
Exhaust duct
22 1/2"
(572mm)
3 3/4"
(95mm)
3 1/4" x 10"
Exhaust duct
3/4" (19mm)
Finished floor
Raised Vent System Specifications
For Use With Gas Cooktops
E30DD75ESS
E36DD75ESS
E46DD75ESS
E46GC66ESS/E46GC67ESS
E48DD75ESS
E46GC66ESS/E46GC67ESS
3/4" (19mm) Max. backsplash thickness
1/4" (6mm) Min. flat area
2 1/8"
(54mm)
9/32" (7mm)
Cooktop/Range
2 13/16"
(71mm)
A
10"
(254mm)
B
1 5/8" x 16"
1 5/8" x 16"
Exhaust duct
Exhaust duct
25 7/8"
(657mm)
30"
6"
(762mm)
(152mm)
Motor
3 1/4" x 10"
cover
Rear
Exhaust duct
1 5/8" x 16"
Exhaust duct

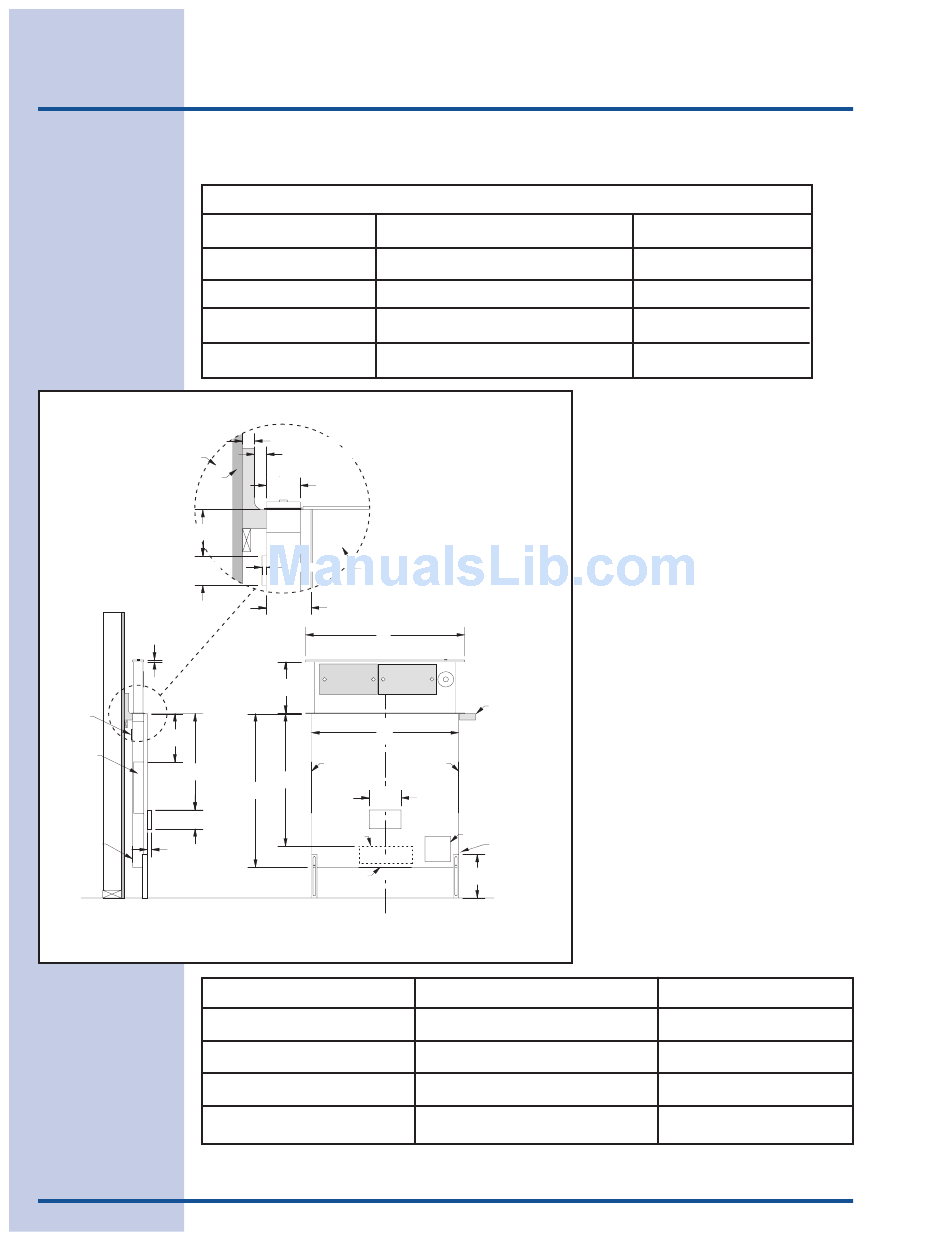

Figure 1
Model
E30DD75ESS
E36DD75ESS
E46DD75ESS
E48DD75ESS
E30GC64ESS
E36GC65ESS
Countertop
Electrical
access panel
48", 3 prong grounded
power cord
8 1/2"
(216mm)
Width "A"
30" (762mm)
36" (914mm)
46" (1168mm)
48" (1219mm)
Duct Size
3 1/4"x10" & 10"
3 1/4"x10" & 10"
3 1/4"x10" & 10"
3 1/4"x10" & 10"
Width "B"
27 3/4" (705mm)
33 3/4" (857mm)
43 3/8" (1102mm)
43 3/8" (1102mm)
