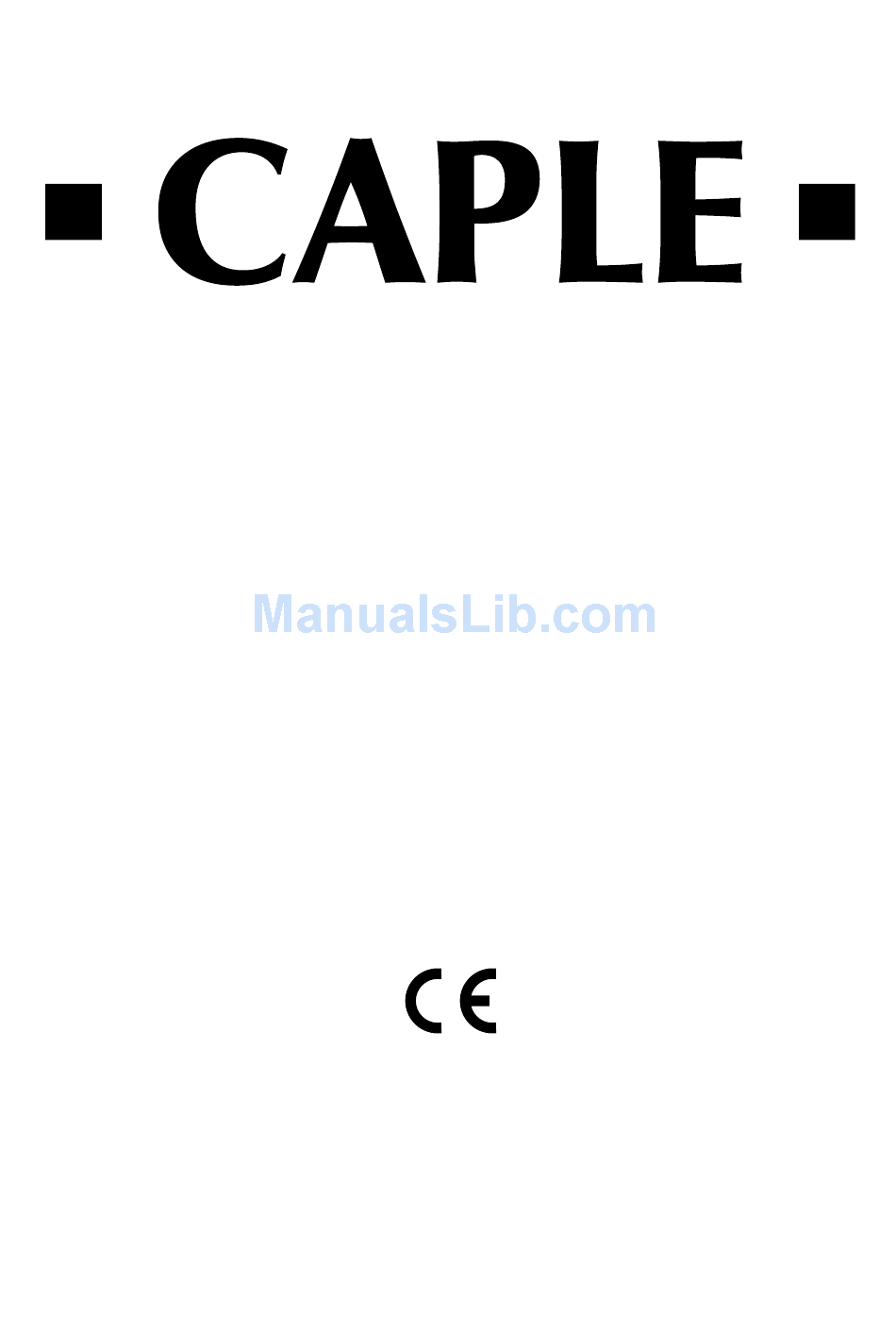

  • Page 1 C 302 Models: C 308 Double Ovens Instruction Manual...

  • Page 2: Table Of Contents

    Thank you for buying your new CAPLE Double Oven. To ensure that you get the best results from your new CAPLE Double Oven, we strongly suggest that you read this instruction manual thoroughly before use. This manual contains installation advice, cleaning tips and a cooking guide, as well as other important facts about your CAPLE Double Oven.

  • Page 3: Safety Reminders

    To ensure the continued safe and effi- cient operation of this appliance, we rec- ommend that any servicing or repairs are carried out only by an authorised CAPLE The Grill and Top oven ele- SERVICE ENGINEER. ment are exposed, so take great care when placing food in the oven or removing it.

  • Page 4: Electrical Requirements

    Fitting Into position shown on the rating plate. Connection Your new CAPLE oven is designed to fit must be made via a double pole isolating into a kitchen unit which is at least 555 switch with a contact separation of at mm deep.

  • Page 5: Electrical Installation

    Electrical Installation This appliance must be connected to a double pole isolating switch (fig. 1) and DOUBLE POLE SWITCHED to the terminal block in the oven (figs. 2 FUSED SPUR OUTLET & 3) using the following guide: 1) The wire which is coloured brown FUSE must be connected to the terminal marked L (Live), or coloured Red.

  • Page 6: How To Install Your Oven

    Failure to allow adequate ventilation for the appliance may result in over heating or damage to adjacent units. Caple does not accapt any responsibil- ity for any damage caused due to non- compliance with these instructions. To install the oven into a kitchen unit (figs.
  • Page 7 How To Install Your Oven Using the top and the main oven for the first time You are advised to carry out the following operations: – Clean the inside of the two ovens with a cloth soaked in water and neutral detergent and dry thoroughly.

  • Page 8: How To Use Your Oven - Mod.: C 302

    Oven - C 302 How To Use Your Oven Cooking in a Main Fan Oven Cooking in a Conventional Top Oven The fan is situated on the back wall of the oven. The oven has two heating elements, one The heating element encircles the fan, on the base and one on the roof of the and the fan forces this heat into the cooker.

  • Page 9: How To Use Your Oven - Control Panel

    How To Use Your Oven - Control panel Model: C 302 Fig. 8 Control panel A. Electronic clock/alarm (Main oven only) B. Main oven selector C. Top oven function selector D. Top oven temperature selector Temperature light...

  • Page 10: How To Use Your Top Oven

    How To Use Your Top Oven Fig. 9 Fig. 10 Remember to keep children away Function Selector (fig. 10) from the appliance when you use Cook or grill by turning the knob until the the grill or oven, since these parts indicator on it is in line with the function become very hot.

  • Page 11: How To Use Your Main Oven

    How To Use Your Main Oven Grease Filter Fig. 11 Fig. 12 Function/Temperature A special screen is provided at the back Selector (fig. 11) of the fan oven to catch grease particles, mainly when meat is being roasted. Cook by turning the knob until the indi- When baking pastry etc, the filter should cator on it is in line with the function/func- be removed.

  • Page 12: Electronic Clock/Alarm (Main Oven Only)

    Electronic Clock/Alarm (Main oven only) Cooking with automatic The electronic alarm is a device which groups the functions of a 24 hours clock swith-off (Main oven only) with illuminated display and 99 minutes The aim of this function is to alarm.

  • Page 13: How To Use Your Oven - Mod.: C 308

    Oven - C 308 How To Use Your Oven Top Oven general features Main Oven operating principles This is a conventional oven with 2 cook- ing positions, thermostatically controlled, Heating and cooking in the MULTI- obtained by 3 heating elements (top, bot- FUNCTION oven are obtained in the fol- tom and grill).

  • Page 14: How To Use Your Oven - Control Panel

    How To Use Your Oven - Control panel Model: C 308 Fig. 14 Control panel A. Digital electronic programmer (Main oven only) B. Function selector (Top oven) C. Thermostat (Top oven) D. Function selector (Main oven) E. Thermostat (Main oven) Temperature light...

  • Page 15: How To Use Your Top Oven

    How To Use Your Top Oven Fig. 16 Fig. 15 Thermostat knob (fig. 16) Function selector knob (fig. 15) This only sets the cooking temperature Rotate the knob clockwise to set the and does not switch the oven on. oven for one of the following functions. Rotate clockwise until the required tem- perature is reached (from 50 to 250°C) LIGHT...
  • Page 16 How To Use Your Top Oven Cooking in a conventional GRILL top oven The infrared electrical resistance comes on. The heat is dispersed by radiation. – The oven has two heating elements, Use with the thermostat knob set to one on the base and one on the roof 225°C for 15 minutes, then to 175°C and of the cooker.

  • Page 17: How To Use Your Main Oven

    How To Use Your Main Oven Fig. 17 Fig. 18 Function selector knob (fig. 18) Thermostat knob (fig. 17) Rotate the knob clockwise to set the This only sets the cooking temperature oven for one of the following functions. and does not switch the oven on. Rotate clockwise until the required tem- perature is reached (from 50 to 250°C) LIGHT...
  • Page 18 How To Use Your Main Oven GRILL GRILL & FAN The infrared electrical resistance comes The infrared grill and the fan come on. on. The heat is dispersed by radiation. The heat is dispersed mainly by radia- Use with the thermostat knob set to tion and the fan then distributes it all 225°C for 15 minutes, then to 175°C and over the oven.
  • Page 19 How To Use Your Main Oven Regeneration CONVENTIONAL & FAN The upper and lower heating elements switch position come on and the fan. Conventional & Fan and the ther- The heat coming from above and below mostat knob to position 150° C. is dispersed by convection with ventila- Bread becomes fragrant again if wet with tion.

  • Page 20: Grease Filter

    How To Use Your Main Oven Grease Filter Grilling and “au gratin” A special screen is provided at the back Grilling may be done without the roast- of the fan oven to catch grease particles, Grill & Fan ing jack on position of the mainly when meat is being roasted.

  • Page 21: Electronic Programmer (Main Oven Only)

    Electronic Programmer (Main oven only) Autotimer The electronic programmer is a device which groups together the following functions: – 24 hours clock with illuminated display – Timer (up to 23 hours and 59 minutes) – Program for automatic oven cooking –...

  • Page 22: Electronic Timer

    Electronic Programmer (Main oven only) Normal Cooking without the use of the Programmer To manually use the oven, that is, without the aid of the programmer, it is necessary to cancel the flashing AUTO by pushing the button (AUTO will be switched off and the symbol will go on).
  • Page 23 Electronic Programmer (Main oven only) that is that the cooking cycle has been superimposed on the clock. In this case, modify the end of cooking time or the cooking time itself by following again the above mentioned instructions. 3. Set the temperature and the cooking program by using the switch and thermostat knobs of the oven (see specific chapters).

  • Page 24: Cleaning And Maintenance

    Cleaning and Maintenance Before cleaning the double oven switch it off and wait for it to cool down. Important: Before any operation of cleaning and maintenance disconnect the appliance from the electrical network. General Installation, and any demonstration, information or adjustments are not included in the warranty.
  • Page 25 Cleaning and Maintenance Removal of the inner glass door panel The inner glass door panel can easily be removed for cleaning by unscrewing the two screws (figure 21). During re-assembly, ensure that the inner glass is correctly aligned and do not over tighten the screws.

  • Page 26: Helpful Advice

    If Your Oven Does Not Work shelves rather than towards the sides of tho oven. Before calling a CAPLE service engineer run through the following checklist. 3. Rotate the food a half turn in the oven. 1. The oven is connected to the power 4.

  • Page 27: Cooking Guide

    Recommended cooking temperature Food °C °F Shelf Cooking Mark Position Time (approx) CAKES Victoria sandwich 2 or 3 20-25 mins Small cakes/buns 1 and 2 15-20 mins Maidera cake 2 or 3 20 mins 3 /4 Fruit cake hours 1 /2 Rich fruit cake 3 or 4 hours...

  • Page 28: Caple Service

    YOUR GUARANTEE CAPLE guarantees all parts of this product for one year from the date of pur- chase. During that time, should it become necessary CAPLE engineers will replace or repair all defective parts free of charge, except for parts subject to fair wear and tear, such as lightbulbs.
