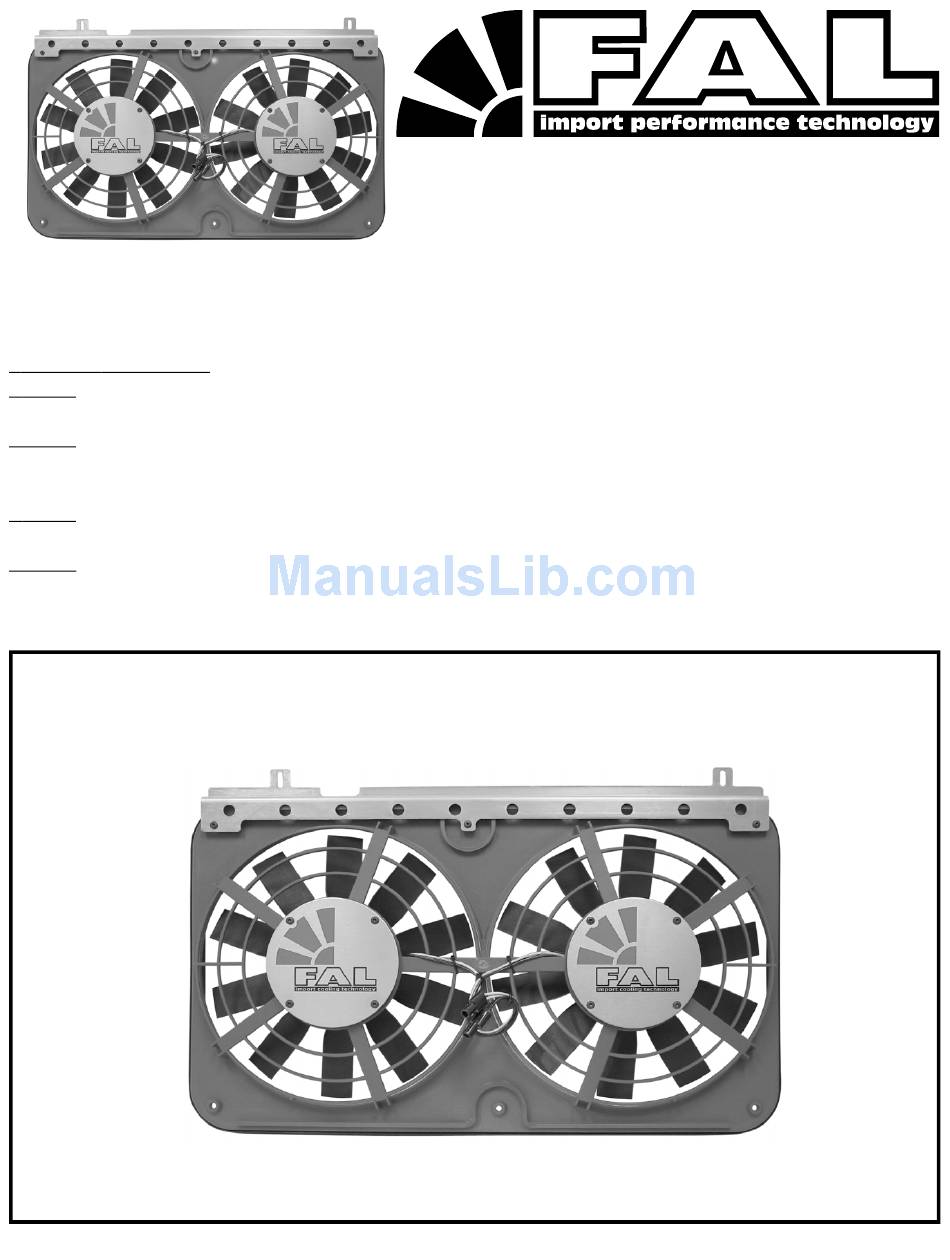

FAL #425
86-92 Toyota Supra
Electric Cooling Fan Installation Instructions
Be sure the engine is cool before you start working on your car. For added safety, disconnect your
battery to keep the fans from coming on while you are working under the hood.
FAN INSTALLATION (Diagram A)
Step 1:Unbolt and remove OEM fan shroud from radiator. Retain the bolts as they will be used to
secure the FAL fan.
Step 2:Remove the four bolts holding the fan clutch and fan assembly to the water pump. It is very
important that you re-install the four nuts back onto the pulley. You may need to use washers to "shim"
the bolts.
Step 3:The FAL fan has cutouts in the bottom for the tabs on the radiator, to prevent interference with
the water pump. Mount the supplied bracket to the top of the fan using the included screws.
Step 4:Place the tabs into the cutouts on the bottom of the fan. Pivot the fan forward and determine
which of the supplied spacers are required for your application. Using the factory bolts, secure the
fan assembly to the radiator making sure the bulb seal is pressed to the core of the radiator.

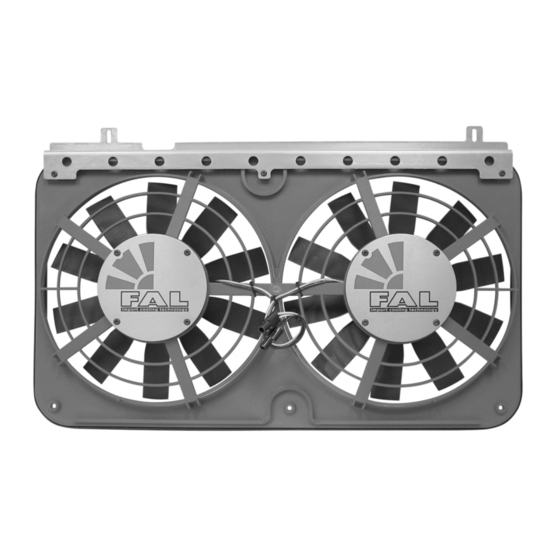

Diagram A
rev. 10-07-08
99959
Page 1 of 3
