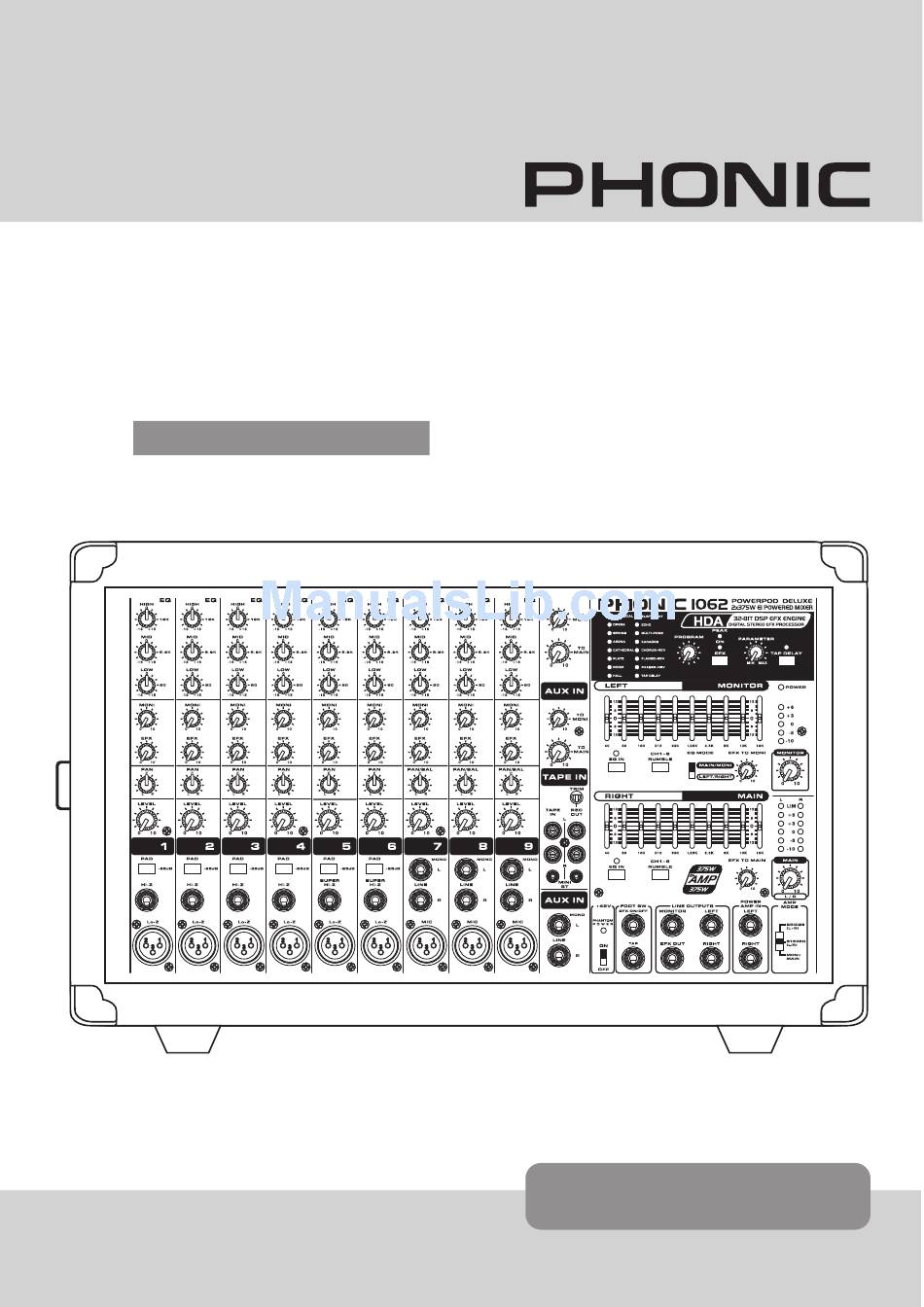

- Page 1 POWERPOD740 DELUXE POWERPOD1062 DELUXE EI TRANSFORMER EDITION User’s Manual ENGLISH POWERPOD 740 / 062 DELUXE...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS The apparatus shall not be exposed to dripping or splashing and that no objects with liquids, such as vases, shall be placed on the apparatus. The MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable. -
Page 3: Table Of Contents
SPECIFICATIONS ........................4 DIGITAL EFFECT TABLES ...................... 6 DIMENSIONS ........................... 7 BLOCK DIAGRAMS ......................... 8 Phonic reserves the right to improve or alter any information suppied within this document without prior notice. V.0 OCT 20, 2006 POWERPOD 740 / 062 DELUXE... -
Page 4: Introduction

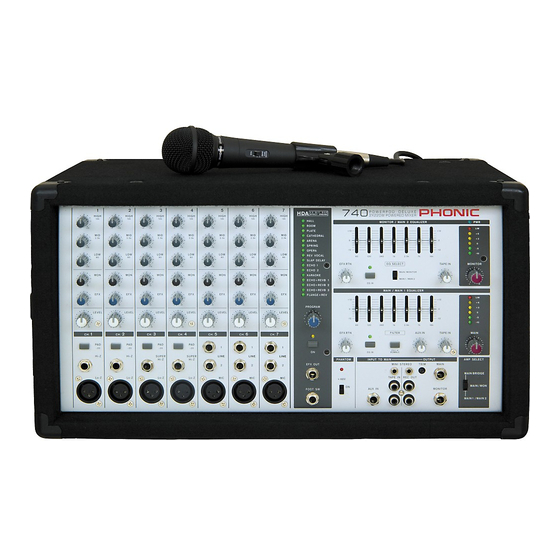

INTRODUCTION FEATURES POWERPOD 740 DELUXE Phonic Corp would like to congratulate you on the purchase ● of one of their extraordinary Powerpod Mixers, powered 220W + 220W / 4 ohms amplifier for main L & R mixers that provide more than the average. Since its intro- or main / monitor (Bridge mono, 440W / 8 ohms) ●... -
Page 5: Basic Setup
BASIC SETUP Channel Setup Getting Started To ensure the correct audio levels of each input Turn all power off on the Powerpod Mixer. To ensure channel is selected, every channel should first be this, the AC cable should not be connected to the switched off and all faders set to 0. -
Page 6: Making Connections
MAKING CONNECTIONS Master Section Channel Inputs AUX Inputs This TS input connects the mixer with parallel The Powerpod 740 and 062 Deluxe Mixers supply vari- external devices, such as sub mixers or exter- ous numbers input channels. The 062 Deluxe features a nal effect processors, receiving the processed total of 9 channels, 2 of which accept stereo signals. - Page 7 Foot Switch Jacks Speaker set up chart to the right for more detailed On the Powerpod 740 Deluxe, the foot switch jack Indication of how to connect speakers. allows the user to remotely turn the digital effects NB. Due to the fact that the signal has been processed by the on and off.
-
Page 8: Controls And Settings
CONTROLS AND SETTINGS 19. PAN/BAL Cortrol (Powerpod 1062 Deluxe only) Channel Controls This alternates the degree or level of audio that the left and right side of the main mix should re- 12. HF (High Frequency) Control ceive. On mono channels, this control will adjust This control is used to give a shelving boost or the level that the left and right should receive, cut of ±5 dB to high frequency (2 kHz) sounds. -
Page 9: Digital Effect Processor
Digital Effect Processor Master Section 20. Digital Effect Display 24. EFX Return Control This panel displays the titles of different effects that The Powerpod 740 and 062 Deluxe, feature two can be added to audio. When you select the effect, EFX Return controls;... - Page 10 35 Level Meter 28. EQ IN and Indicator These level meters give accurate indications of This button activates the equalizer in which it accom- when audio levels of the Main and Monitor out- panies. The corresponding LED indicator illuminates puts reach certain levels. The 0 dB indicator il- when the EQ is activated.
- Page 11 Rear Panel 38. Power Button The power button, located on the rear of the mixer, is used to activate the mixer. 39. AC Power Connector / Cord The AC connector is included to ensure your Mixer gets the power it needs. Please use the power cable that is included with this mixer only.
-
Page 12: Application
APPLICATION POWERPOD 740 DELUXE ACTIVE SPEAKER DRUM MACHINE MICROPHONE ELECTRIC GUITAR BASS POWERPOD 740 / 062 DELUXE... - Page 13 APPLICATION POWERPOD 1062 DELUXE MONITOR DRUM MACHINE MICROPHONE ELECTRIC GUITAR BASS ACTIVE SPEAKER POWERPOD 740 / 062 DELUXE...
-
Page 14: Specifications
SPECIFICATIONS PHONIC Powerpod PHONIC Powerpod 740 Deluxe 062 Deluxe Power Amplifier Power Channels Limiters 8-Ohm Load per Channel 45 Watts 200 Watts 4-Ohm Load per Channel 220 Watts 75 Watts 4-Ohms Bridged Mono 440 Watts 750 Watts Inputs Mono Mic/Line Channels... - Page 15 Frequency Response 20Hz~20KHz, line level o/p +0/-2 dB +0/-2 dB @ +4 dBu into 600 ohms 20Hz~20KHz, power amp +0/-2 dB +0/-2 dB o/p Watt into 8 ohms Crosstalk (@ KHz) Adjacent inputs or input to <-90 dB <-90 dB output Noise...
-
Page 16: Digital Effect Tables
DIGITAL EFFECT TABLES POWERPOD 1062 DELUXE Program Parameter Variable Range Hall Reverb Time 0. - 0 sec Room Reverb Time 0. - 0 sec Plate Reverb Time 0. - 0 sec Cathedral Reverb Time 0. - 0 sec Arena Reverb Time 0. - 0 sec Spring Reverb Time... -
Page 17: Dimensions
DIMENSIONS POWERPOD 740 Deluxe POWERPOD 1062 Deluxe 47 mm (8.5 inches) 47 mm (8.5 inches) 265 mm (0.4 inches) 285 mm (.2 inches) 275 mm (0.8 inches) 275 mm (0.8 inches) WEIGHT POWERPOD 740 Deluxe .5 kg (29.7 ibs) POWERPOD 1062 Deluxe 4 kg (0.8 ibs) POWERPOD 740 / 062 DELUXE... -
Page 18: Block Diagrams
BLOCK DIAGRAM POWERPOD 740 DELUXE POWERPOD 740 / 062 DELUXE... -
Page 19: Block Diagram
BLOCK DIAGRAM POWERPOD 1062 DELUXE POWERPOD 740 / 062 DELUXE... - Page 20 6103 Johns Road #7 POWERPOD 740 / 062 DELUXE...
- Page 21 POWERPOD 740 / 062 DELUXE...
