lifeSMART LS-1000X-4C Owner's Manual

Infrared zone heating system
Hide thumbs

Advertisement

Table of Contents

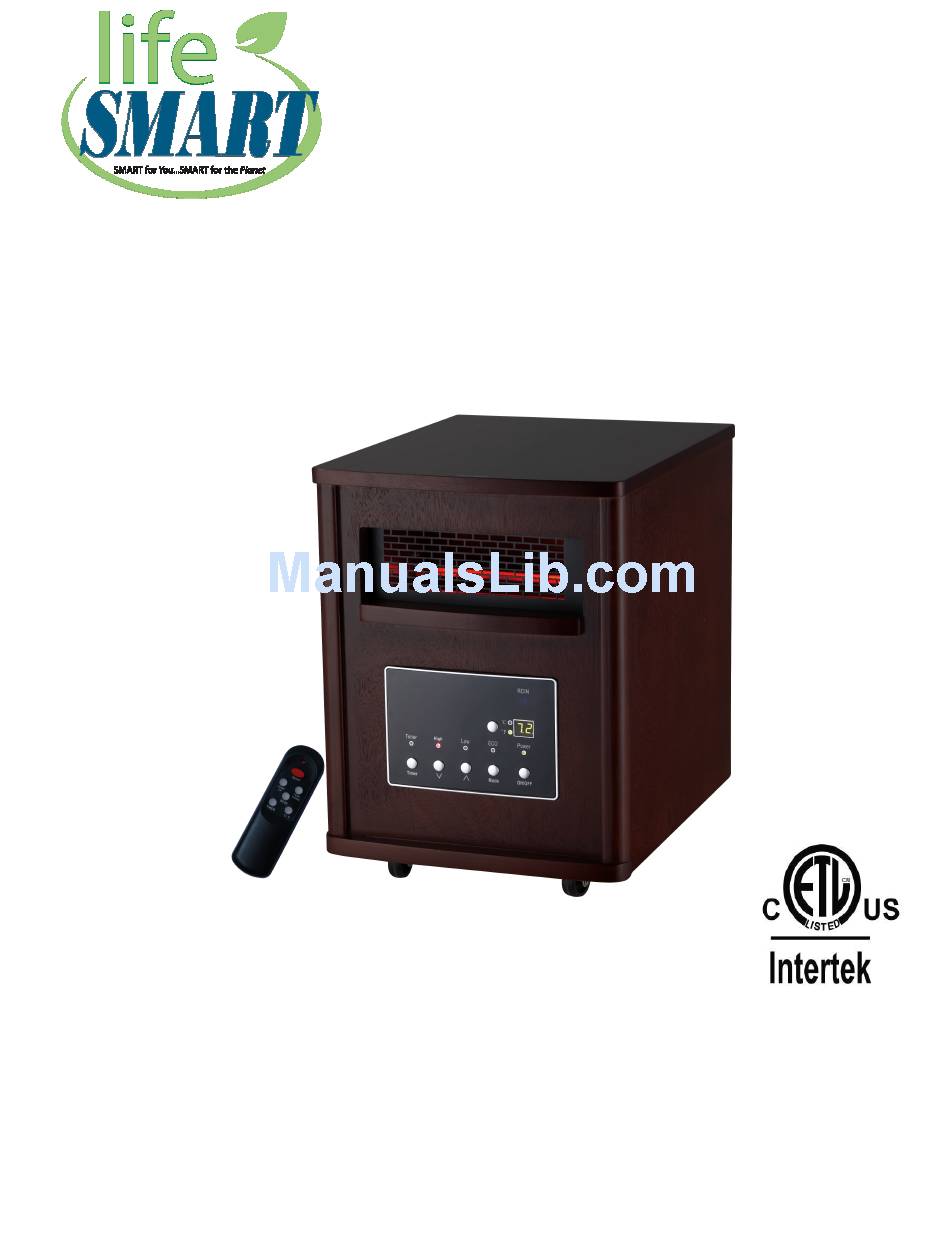

INFRARED ZONE HEATING SYSTEM
OWNER'S MANUAL
Model No. LS-1000X-4C
WARNING: READ THIS ENTIRE OWNER'S MANUAL CAREFULLY BEFORE USE.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS-1000X-4C and is the answer not in the manual?

Questions and answers

Related Manuals for lifeSMART LS-1000X-4C

Summary of Contents for lifeSMART LS-1000X-4C

  • Page 1 INFRARED ZONE HEATING SYSTEM OWNER’S MANUAL Model No. LS-1000X-4C WARNING: READ THIS ENTIRE OWNER’S MANUAL CAREFULLY BEFORE USE.

  • Page 2: Important Safety Instructions

    Thank you for choosing a LIFESMART Infrared Zone Heating System. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new heater.
  • Page 3 READ AND UNDERSTAND ALL INSTRUCTIONS, SAFETY WARNINGS, AND FAQ’s BEFORE USING THE HEATER WARNING! ! POTENTIAL FOR ELECTRICAL HAZARD IF NOT ADHERED TO! When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1.
  • Page 4 10. Never place heater where it may fall into a bathtub or other water receptacles. 11. Do not run cord under carpet. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over. 12.
  • Page 5 LIFESMART Products, although it is not recommended (unless you are a certified heater technician or authorized directly by LIFESMART). All parts may be purchased through LIFESMART PRODUCTS if your product is out of warranty. Note: If you feel that the elements are definitely faulty right out of the box, contact LIFESMART Products Tech Support first (for troubleshooting).
  • Page 6 Why doesn’t the temperature on my heater match the temperature display on my wall, or external thermostat? This is completely normal. The temperature display on your heater may vary from the temperature display on another thermostat (like the one mounted to your wall or a purchased external thermostat).
  • Page 7 I purchased my heater so that it could cut my heating costs, but my electric bill has gone up. Why? The compact LIFESMART heater can definitely save you on heating costs, when compared to the existing central heating system in place in your home, and when used as directed. Your heater is designed to give your main heat source a supplement “boost,”...

  • Page 8: Specifications

    SPECIFICATIONS Voltage Rating 120 V (60Hz) Power Consumption 1500W Unit Size 13.1 in. (W) x 16.5 in. (D) x 17.7 in. (H) Unit Weight 26.9 lbs SAFETY FEATURES Tip-Over Safety Feature This heater is equipped with a tip-over safety feature. Once the heater is tipped over, an internal switch will automatically shut the heater off.

  • Page 9: Product Diagram

    IN THE BOX INFRARED ZONE HEATING SYSTEM INSTRUCTION BOOKLET • • REMOTE CONTROL (2 AAA batteries not • Included) PRODUCT DIAGRAM Remote Control Air Intake and Filter Outlet Temp Sensor Control Panel Wheels Main Power Toggle Switch Power Cord Clamp...

  • Page 10: Control Panel

    Control Panel (Ref Fig. 1) 1. Remote control signal sensor 2. Digital display: Indicates set desired room temperature 3. Power indicator light: Indicates that the heater is receiving power from outlet. Will flash when powered “ON’ 4. ON/OFF button: Powers the display on and off 5.

  • Page 11: Remote Control

    Remote Control ON/OFF button: Used to power the digital display on or off Temp up button: To increase set temperature Temp down button: To decrease set temperature Mode button: Used to select between the available heat modes _/_button : Button for alternating between Fahrenheit and Celsius. Timer button: Used for setting timer and adjusting hour increments of the timer PREPARATION Place the heater on a firm, level surface and plug into a grounded 120V 60Hz power outlet, and turn on...

  • Page 12: Operating Instructions

    OPERATING INSTRUCTIONS 1. Power the Display On/Off and Select Desired Mode Turn the heater on by pressing the ON/OFF button on the control panel or by pressing the Power button on the supplied remote control. Turn the heater off by pressing the ON/OFF button on the control panel or by pressing the Power button on the supplied remote control.
  • Page 13 3. Setting the Function POWER OFF TIMER Note: The Power-Off-Timer Function will allow for the heater to power OFF after a certain set time, and can only be set while the heater’s display is in the “On” position. Turn the heater to the “On” position. Press the Timer button on the heater’s control panel or the remote.
  • Page 14 5. Setting Electro Lock The Electro Lock can help avoid the heater from being accidentally engaged by children. The locking mechanism can be set in both the ON and OFF modes. Press Temp Up and Temp Down buttons at the same time for 3 seconds.

  • Page 15: Maintenance

    MAINTENANCE 1. Unplug the unit and let it cool completely. 2. To keep the heater clean, the outer case may be cleaned with a soft, damp cloth. You may use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth. CAUTION: DO NOT let liquid enter the heater.

  • Page 16: Basic Troubleshooting

    STORAGE Store the heater in a cool, dry location when not in use. To prevent dust and dirt build-up, use the original packaging to repack the unit. BASIC TROUBLESHOOTING If the heater will not operate, please check the following before seeking repair advice: 1.

  • Page 17: Limited Manufacturer Warranty

    LIFESMART warranty department. The purchaser may also opt to ship the product to LIFESMART to have it repaired. The purchaser will be responsible to prepay any shipping charges (both ways), export taxes, custom duties and taxes, or any other charges associated with the transportation of the unit.

  • Page 18: Warranty Limitations

    Protectors/GFCI Disclaimers LIFESMART shall not be liable for any loss due to use (or misuse) of the heater or other LIFESMART products or other incidental or consequential costs, expense or damages without irrefutable foundations. Under no circumstances shall LIFESMART or any of its representatives be held liable for injury to any person or damage to any property, however arising.

  • Page 19: Customer Service And Support

    Describe the issue and symptoms you have for, and about the product. A certified LIFESMART Technical Support agent will give you an evaluation of your issue and your resolution options. If the answer is not available at that time, you will be referred to the appropriate channels, or given a call/e-mail back within 72 hours with an answer or resolution.
