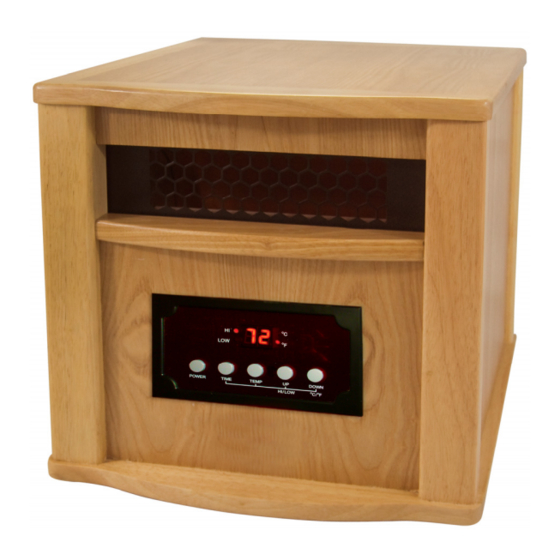

Lifesmart infrared heater

Advertisement

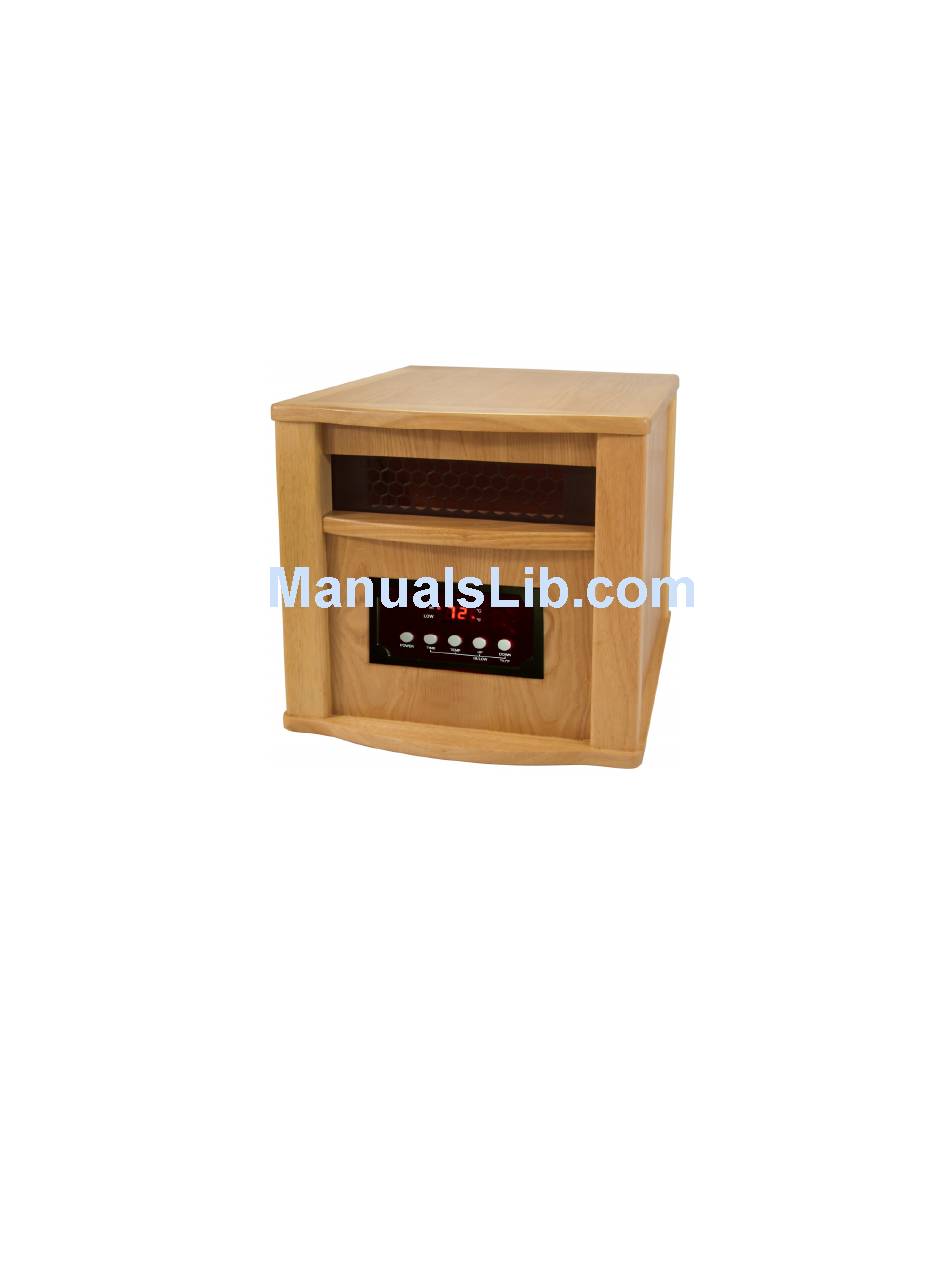

lifeSMART Infrared Heater


FOR INDOOR USE ONLY
120VAC 15 AMP DEDICATED CIRCUIT

The lifeSMART Infrared Heater works with your in‐home furnace to provide
supplement heat.  Carefully and thoroughly read this manual before using the
lifeSMART Infrared Heater for the first time.  We recommend keeping this manual
for regular review and future reference.  Heater is intended for residential use.
User's Manual
Model# Ultra LS1500-4WC



Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ultra LS1500-4WC and is the answer not in the manual?

Questions and answers

Summary of Contents for lifeSMART Ultra LS1500-4WC

  • Page 1 Infrared Heater User’s Manual  Model# Ultra LS1500-4WC          FOR INDOOR USE ONLY  120VAC 15 AMP DEDICATED CIRCUIT    The lifeSMART Infrared Heater works with your in‐home furnace to provide  supplement heat.  Carefully and thoroughly read this manual before using the  lifeSMART Infrared Heater for the first time.  We recommend keeping this manual  for regular review and future reference.  Heater is intended for residential use. ...
  • Page 2: Important Instructions

    Infrared Heaters are constructed of a wood housing. They are equipped with nylon caster wheels for easy mobility. And the highly efficient filter can be maintained and cleaned by simply rinsing with warm water.
  • Page 3: Heater Specifications

    Diathermanous Copper Plate constructed on the front of the unit. The lifeSMART Infrared Heater ideally heats a room of 500 to 700 square feet, but can be used to heat up a single room size up to 1000 square feet depending on the ambient temperature. And it does all this with a noise level below 46db.
  • Page 4: Components And Functions

    Infrared Heater cooling the unit down. D. The air flow exits through the front of the lifeSMART Infrared Heater. It travels from the Diathermanous Copper Plate. The Diathermanous Copper Plate is constructed from red copper making it advantageous for efficient thermal conductivity.
  • Page 5: Operating Instructions

    1. First, check the carton to make sure there are no obvious damages that may have occurred during shipment. 2. Open the lifeSMART Infrared Heater packaging and remove the heater by sliding it from the box. You may want to gently and cautiously turn the entire box upside down letting the heater slowly slide out.
  • Page 6 2) By pressing the F/Down button, you can switch the temperature format from Fahrenheit to Celsius and vice versa. Press the F/Down to switch from Fahrenheit to Celsius. 3) By pressing the TIME button, the LED display will switch from the temperature status to the TIME status and begin to flash.
  • Page 7 4) Again, the default set temperature displayed on the LED display is 72 F. By pressing the TEMP button, the LED display will switch to the temperature status and flash. You must press the HI/LOW/UP button or F/DOWN button once again within (5) seconds to set the desired temperature.
  • Page 8 (Note: To set back to factory settings, hold down the TIME button for (5) seconds. This will set all values back to default.) 7) The lifeSMART Infrared Heater can be turned off by pressing the POWER button. DO NOT TURN OFF THE MASTER POWER SWITCH ON THE REAR OF THE HEATER OR UNPLUG THE HEATER UNTIL THE FAN SHUTS DOWN.
  • Page 9: Care, Maintenance, And Storage

    Care, Maintenance, and Storage Before care or maintenance is applied, always unplug the cord from the receptacle. The cabinet housing can be wiped down with water and a damp cloth or with furniture polish. The heater has a washable filter. The filter should be cleaned regularly to provide for maximum performance. Once the filter is removed, run warm water through and over the filter to remove dirt and dust.
  • Page 10 SOLUTION: First, test your outlet to make sure it has power. You can do this by plugging in another appliance and turning the appliance on. Secondly, check the LED display to see if it is flashing. If this is the case, press the POWER button to turn off the TIME and resume normal operation of the portable heater.
  • Page 11: Limited Warranty

    Limited Warranty lifeSMART 3 Year Limited Warranty:    warranties the heating elements and electronics against defects in material and  workmanship for a period of one year from the original date of purchase. This portable heater is for INDOOR use only.  Operating  your portable heater outdoors will VOID this warranty. Any damage due to exposure to outdoor elements such as rain, snow,  sun, wind or extreme temperatures will not be covered by this warranty.   Extent of Warranty  lifeSMART This limited warranty applies to products manufactured or distributed by the   brand name, is delivered in the  continental United States and extends to the original purchaser only.  This warranty becomes valid at time of purchase and  terminates either by specified time frame listed above and/or owner transfer. Your sales receipt showing the date of purchase of  the product is your proof of purchase.  Manufacturer Warranty All lifeSMART products are manufactured with the highest quality materials and are warranted to be free from defects in material  and workmanship at the time of purchase.  The appliance warranty is extended through the manufacturer of the product. All  exchanged parts and products replaced under this warranty will become the property of lifeSMART.  lifeSMART reserves the right to  change manufactures of any product part to cover any existing warranty. Any parts determined to be defective must be returned to  lifeSMART or its representatives to obtain warranty service. You must prepay any shipping charges, export taxes, custom duties and  taxes, or any other charges associated with the transportation of the parts. In addition you are responsible for insuring any parts  shipped or returned.  You must present lifeSMART with proof of purchase documents (including the date of purchase). Any  evidence of alteration, erasing or forgery of proof of purchase documents will be cause to VOID this limited warranty. Product on  which the serial number has been defaced or removed is not eligible for warranty service.   Warranty Limitations This warranty does not apply if the unit has been subject to negligence, alteration, fabrication, misuse, abuse, repairs by non‐  lifeSMART authorized personnel, inappropriate installations, or any case beyond the control of lifeSMART invalidating this warranty  including but are not limited to:   Use of lacquer or paints   Heater placed on non‐approved surfaces   Outdoor applications   Normal wear and tear ...
  • Page 12: Warranty Card

    WARRANTY CARD  Congratulations on your purchase of the   Infrared Heater.  Please take the time to complete the  lifeSMART following Warranty Card and mail it to:  lifeSMART Heater Warranty Registration P.O. Box 260758 Plano, TX 75026   Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.    Warranty will be VOID if the following warranty card is not mailed back within 60 days of purchase date  along with proof of purchase.     **Serial number (S/N) is located on the heater’s front panel, rear panel, or on the carton.**        DETACH HERE AND MAIL BOTTOM PORTION WITH PROOF OF PURCHASE          WARRANTY CARD    All fields must be completed to validate the warranty.      Name: _________________________________________    Address: _______________________________________     ...
