lifeSMART LS-3ECO Owner's Manual

Portable infrared heater with remote control
Hide thumbs

Advertisement

Table of Contents

PORTABLE INFRARED HEATER
With Remote Control
OWNER'S MANUAL
Model No. LS-3ECO
WARNING: READ THIS OWNER'S MANUAL CAREFULLY BEFORE USE.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS-3ECO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for lifeSMART LS-3ECO

Summary of Contents for lifeSMART LS-3ECO

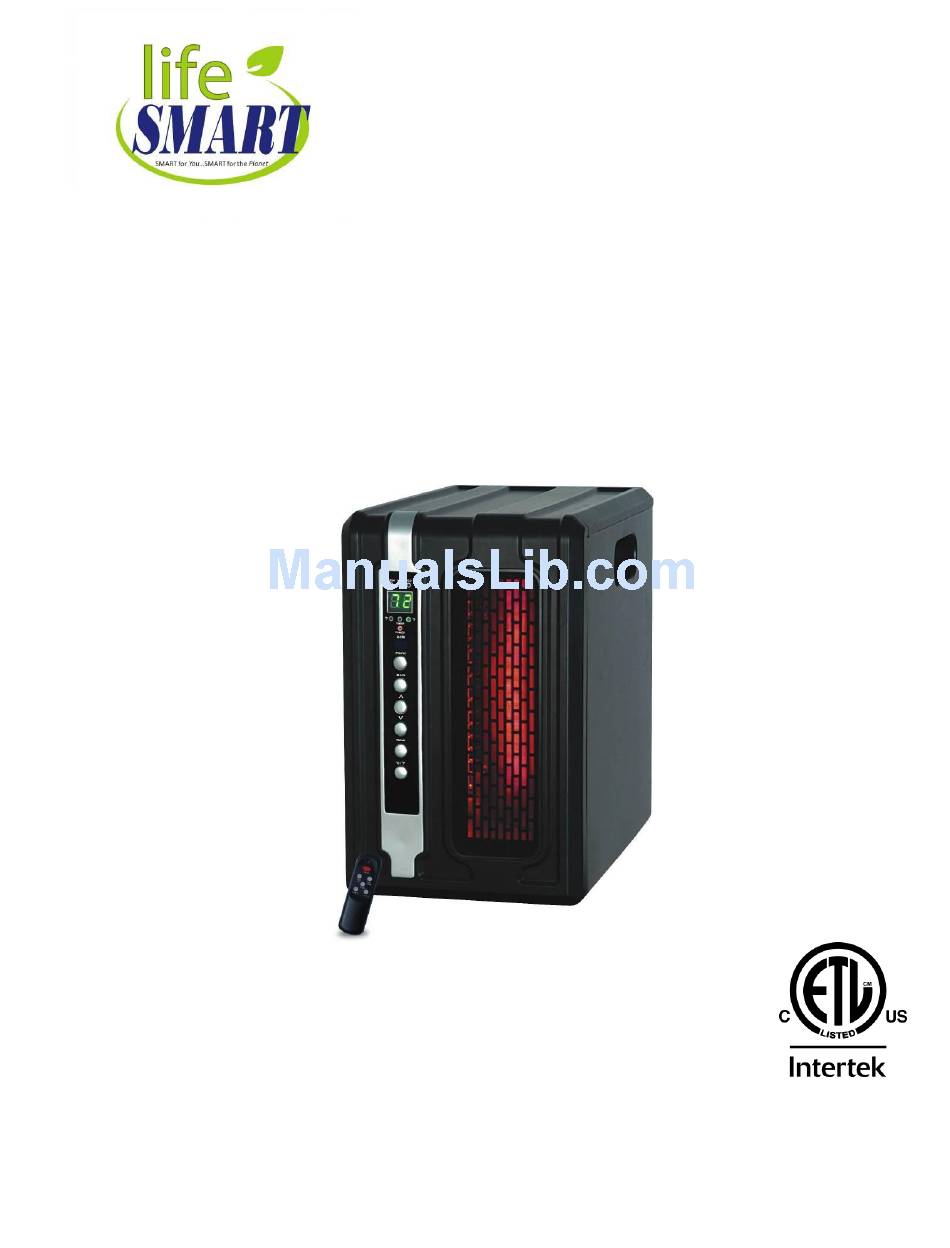

  • Page 1 PORTABLE INFRARED HEATER With Remote Control OWNER’S MANUAL Model No. LS-3ECO WARNING: READ THIS OWNER’S MANUAL CAREFULLY BEFORE USE.

  • Page 2: Important Instructions

    Thank you for choosing a Lifesmart Infrared Heater. This owner’s manual will provide you with valuable information necessary for the proper care and maintenance of your new product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new heater.
  • Page 3 18. Always use on a dry, level surface. For Floor Level use only. 19. DO NOT use outdoors. 20. WARNING: To reduce the risk of fire or electric shock, DO NOT use this unit with any solid-state speed control device. 21.

  • Page 4: Specifications

    SPECIFICATIONS Voltage Rating 120 V (60Hz) Power Consumption 1000W/1500W Unit Size 7.5 in. (W) x 12.8 in. (D) x 12.4in. (H) Unit Weight 12.34 lbs SAFETY FEATURES Tip-Over Safety Feature This heater is equipped with a tip-over safety feature. Once the heater is tipped over, an internal switch will automatically shut the heater off.
  • Page 5 IN THE BOX ·INFRARED HEATER ·REMOTE CONTROL (2 AAA batteries not Included) ·INSTRUCTION BOOKLET PRODUCT DIAGRAM Transport Handles Air Outlet (Vent) FRONT VIEW Control Panel Foot pad Remote Control Air Intake (Vent) Filter Cover and Mesh REAR VIEW Master Power Switch Temperature Sensor...
  • Page 6 1. Energy-saving indicator：Indicates when energy-saving mode is on. 2. Low Heat indicator: Indicates when Low Heat mode is on. 3. High Heat indicator: Indicates when High Heat mode is on. 4. Digital Display: Readout of the set room temperature or timer value. 5.
  • Page 7 Remote Control Temp up button: Increases your set temperature higher ON/OFF button: Powers the heater ON or OFF. Temp down button: Decreases the set temperature lower. Mode button：Toggles between the 3 modes available. ℃/℉ button: Alternates between Fahrenheit and Celsius readout. Timer power button: Engages the on/off timer function.

  • Page 8: Operating Instructions

    OPERATING INSTRUCTIONS 1. Start Turn on or off the heater by pressing the ON/OFF button on the control panel or by pressing the Power button on the supplied remote control. Once power is off, heating elements will stop working first. Fan will continue working for up to 3 minutes to dispense residual heat inside the heater.
  • Page 9 Set temperature indication varies from 59℉ to 86℉or from 15℃ to 30℃. Once you have chosen the desired temperature, the heater will remain on until the room temperature increases to the temperature on the digital display. The heater will cycle on and off to maintain the desired room temperature.

  • Page 10: Maintenance

    MAINTENANCE 1. Turn off the power switch in the rear of the unit. 2. Unplug the unit and let it cool completely. 3. To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You may use a mild detergent if necessary.

  • Page 11: Troubleshooting

    9. If you will not be using the heater for a while, take the batteries out of the remote control (see steps below) and store for future use. PUSH Battery STORAGE Store the heater in a cool, dry location when not in use. To prevent dust and dirt build-up, use the original packaging to repack the unit.

  • Page 12: Limited Manufacturer Warranty

    LIFESMART warranty department. The purchaser may also opt to ship the product to LIFESMART to have it repaired. The purchaser will be responsible to prepay any shipping charges (both ways), export taxes, custom duties and taxes, or any other charges associated with the transportation of the unit.

  • Page 13: Warranty Limitations

    Protectors/GFCI Disclaimers LIFESMART shall not be liable for any loss due to use (or misuse) of the heater or other LIFESMART products or other incidental or consequential costs, expense or damages without irrefutable foundations. Under no circumstances shall LIFESMART or any of its representatives be held liable for injury to any person or damage to any property, however arising.
  • Page 14 Be Patient, Clear, and Concise. Describe the issue and symptoms you have for, and about the product. A certified LIFESMART Technical Support agent will give you an evaluation of your issue and your resolution options. If the answer is not available at that time, you will be referred to the appropriate channels, or given a call/e-mail back within 72 hours with an answer or resolution.
