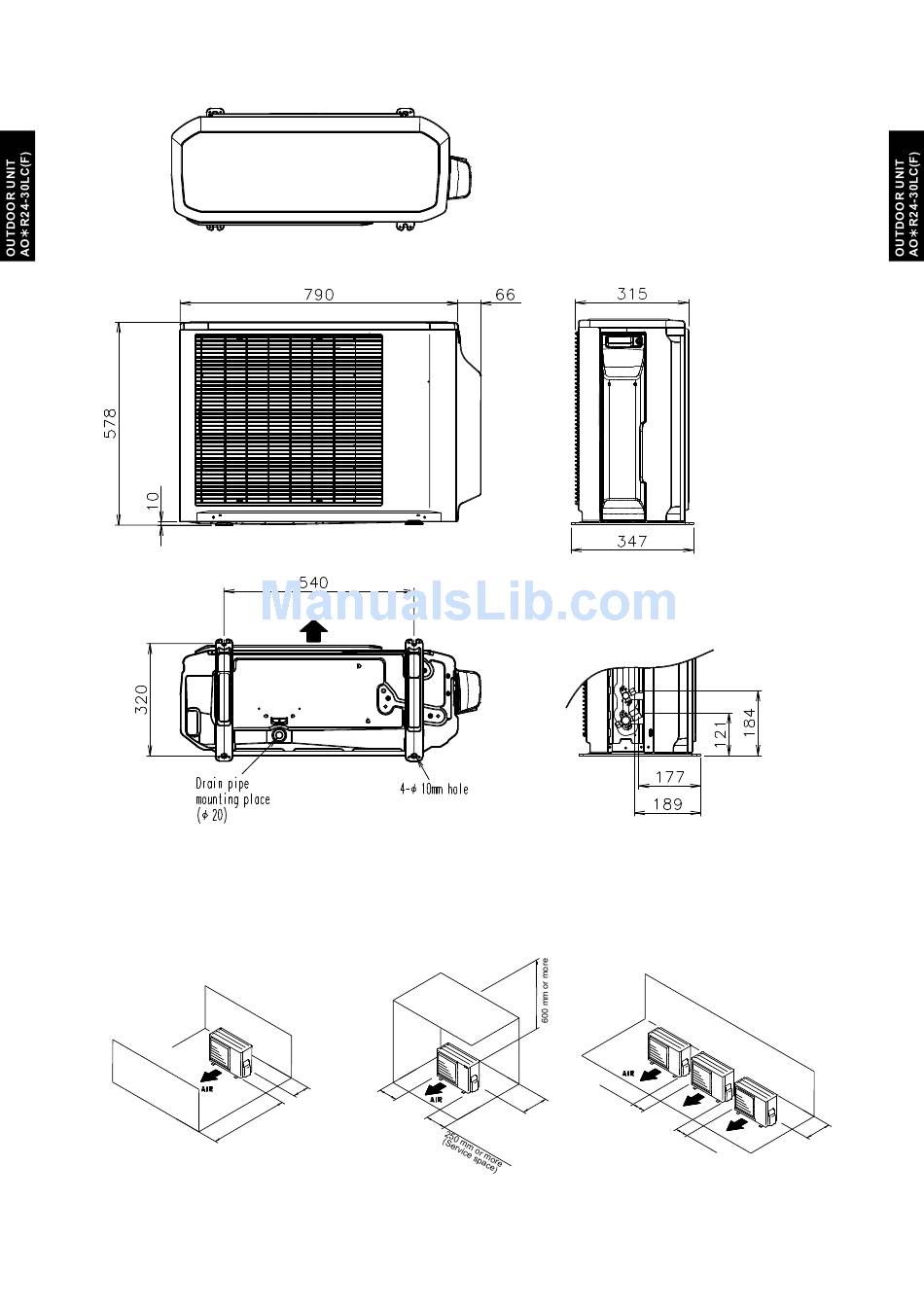

DIMENSIONS

MODEL : AOÜR24LC
„ „

INSTALLATION PLACE

„ „
When there are obstacles at
the back or front sides.
600 mm
or more
Top view
Front view
Air flow
Bottom view
When there are obstacles at
the back, side(s), and top.
100 mm
100 mm
or more
or more
Side view
When there are obstacles at the
back, side with the installation of
more than one unit.
250 mm
or more
300 mm
or more
- (02 - 03) -
(Unit : mm)
300 mm
250 mm or more
or more
