BASICS
In the middle of the unit, right below the gain reduction meters, there are three buttons to set the
distinct operating modes of the alpha compressor:
M/S Mode
If this button is pressed, the alpha compressor will work in M/S mode in which the controls on the
left side affect the middle channel and those on the right side belong to the side channel. Other-
wise the unit will work in stereo mode.
Active
If this button is pressed (LED glows), the incoming signals will be processed by the alpha compres-
sor. Otherwise there is a hard bypass, whereas the gain reduction meters will still stay active.
Channel Link
If this button is pressed, the left upper array will act as a master for the dynamic sections of both
channels. All other parameters (filter, mix, gain, limiter) are not linked, though, and therefore have
to be set manually. In this mode the gain reduction is identical for both channels.

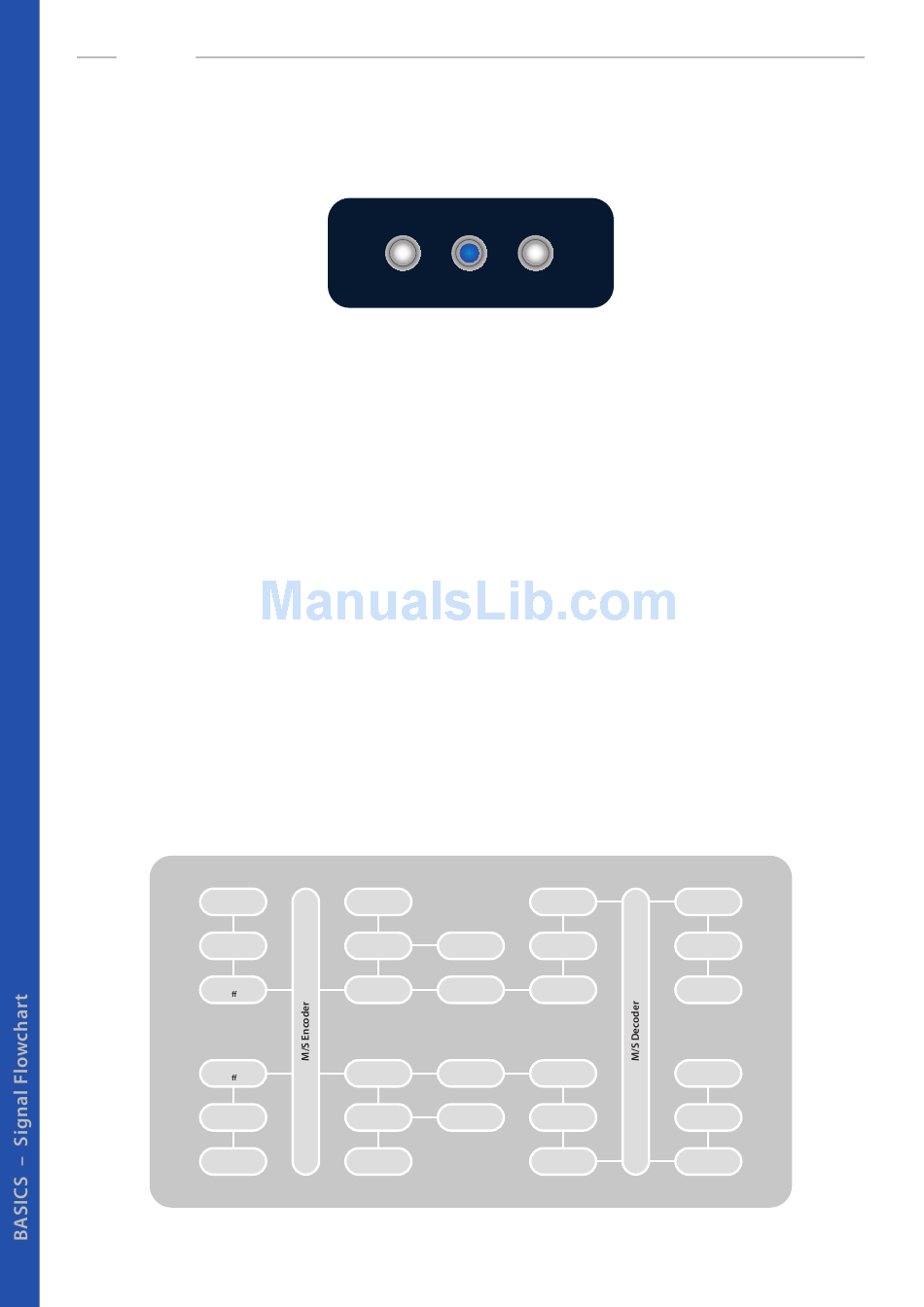

Signal Flowchart

The schematic shows the signal flow from the input through the specific modules to the output.
M/S matrix, sidechain filters, audio filters, mix stages, transformers and Soft Clip limiters can be
optionally switched into the signal path via relays, which is also true of the Auto Fast and feed
forward functions.
