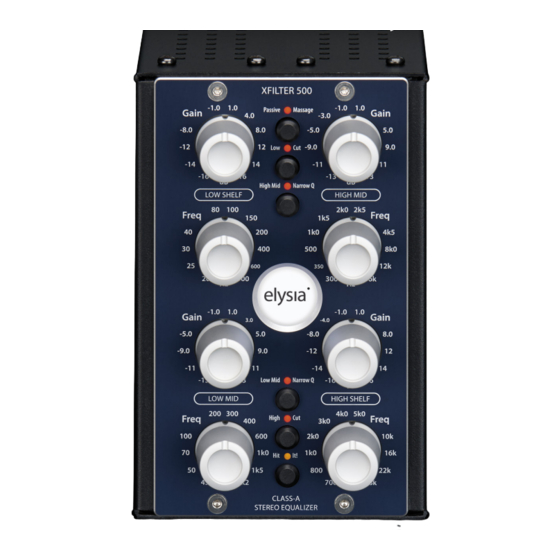

Welcome to filter wonderland! Thank you very much for purchasing the xfilter 500 – one of the quite few true linked stereo EQs in the market. The xfilter 500 gives you the expensive sound of an all class-A equalizer in a surprisingly affordable package, with a precise stereo image based on computer-selected, stepped potenti- ometers and low tolerance film capacitors. -
Page 3: Compatibility
4. Tighten the front panel with four screws provided by your rack manufacturer. 5. Connect your XLR audio cables (see page 6 for more info) and power up your rack. That should do it. Have lots of fun with your xfilter 500! -
Page 4: Controls
Controls Gain (Low Shelf) Boosts or cuts the low frequency range » p. 8 Frequency (Low Shelf) Sets the frequency for the low shelf filter » p. 8 Gain (Low Mid) Boosts or cuts the low mid frequency range » p. 10 Frequency (Low Mid) Sets the center frequency for the low mid peak filter »... - Page 5 High Cut Switches the high shelf filter (LED off ) into a high cut filter with resonance (LED on) » p. 9 Hit It! Activates the xfilter 500 (LED on) or deactivates it with a hard- wire bypass (LED off )
-
Page 6: Connectors
Connectors Audio outputs (+4 dBu) 1 ground 2 hot (+) 3 ground Pin assignment balanced: Pin assignment unbalanced: 1 ground 2 hot (+) 3 idle Audio inputs (+4 dBu) 1 ground 2 hot (+) 3 cold (-) Pin assignment balanced: Pin assignment unbalanced: 1 ground 2 hot (+) 3 ground Mono operation: Connect either input and output 1 or 2 –... -
Page 7: Passive Massage
We all love it, we all need it! Well, here is the good news: In addition to its four flexible ac- tive bands, the xfilter 500 features a switchable fixed LC filter for polishing the high frequency range. The filter mainly consists of a capacitor and a coil per channel, but unlike the standard shelving designs, it has a slight reso- nance peak at 12 kHz and starts to fall of at 17 kHz. -
Page 8: Low Shelf/Cut
Low Shelf Low Cut... -
Page 9: High Shelf/Cut
High Shelf High Cut... -
Page 10: Low Mid
Low Mid (Wide Q) Low Mid (Narrow Q) -
Page 11: High Mid
High Mid (Wide Q) High Mid (Narrow Q) -
Page 12: Appendix
Input impedance: 10 kOhm Output impedance: 68 Ohm CE Conformity elysia GmbH, Ringstraße 82, 41334 Nettetal, Germa- ny, declares with sole responsibility that this product complies with the following norms and directives: • 2006/95/EG Low Voltage Directive (formerly 73/23/EWG or 93/68/EWG) •... - Page 13 Precautions CAUTION: Electricity • Make sure to operate your API 500 series compatible rack at the specific mains voltage of your country. • Replace rack frame fuse with the same type and value only. • Your rack frame must be connected to ground. •...
- Page 14 Warranty Info The xfilter 500 is covered by a limited warranty for a period of 2 years against defects in parts and labor from the date of pur- chase. Natural wear is not covered by this warranty. Repairs or replacements will not extend the warranty period.
- Page 15 GmbH. Other product and brand names contained in this document are used for identification purposes only. All registered trade- marks, product designations or brand names used in this doc- ument are the property of their respective owners.
-
