Summary of Contents for elysia xfilter
- Page 1 xfilter...
- Page 2 Precautions WARNING: High Voltage • Risk of electric shock. • Do not open chassis. • Refer service to qualified service staff only. • Before connecting the device to the main power supply, check if the right voltage is selected. • Replace fuse with the same type and value only.
-
Page 3: Table Of Contents

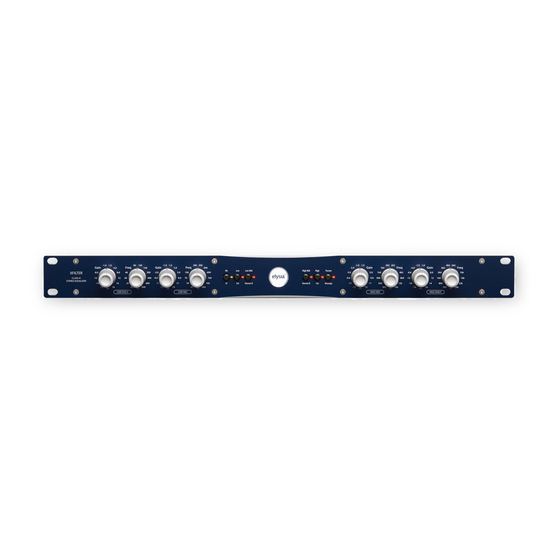

Welcome to filter wonderland! Thank you very much for purchasing the xfilter – one of the quite few true linked stereo EQs in the market. The xfilter gives you the expensive sound of an all class-A equalizer in a surprisingly affordable package, with a precise stereo image based on computer-selected, stepped potentiometers and low tolerance film ca- pacitors. -
Page 4: Controls
Frequency (Low Mid) Sets the center frequency for the low mid peak filter » p. 10 Hit It! Activates the xfilter (LED on) or deactivates it with a hardwire bypass (LED off ) Low Cut Switches the low shelf filter (LED off ) into a low cut filter with resonance (LED on) »... -
Page 5: Passive Massage
-1.0 -1.0 Gain Freq Gain Freq -3.0 -4.0 High Mid High Passive -5.0 -8.0 -9.0 Narrow Q Massage Narrow Q (High Mid) Changes the Q factor of the high mid filter from a wide curve (LED off ) to a narrow curve (LED on) » p. 11 High Cut Switches the high shelf filter (LED off ) into a high cut filter with reso- nance (LED on) »... -
Page 6: Connectors
Connectors OUT R IN R OUT L IN L x lter RISK OF ELECTRIC SHOCK serial number DO NOT OPEN EXT 2 OUT R IN R AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR EXT 1 OUT L IN L MADE IN GERMANY EXT 2 OUT R... -
Page 7: Passive Massage
Well, here is the good news: In addition to its four flexible active bands, the xfilter features a switchable fixed LC filter for polishing the high fre- quency range. The filter mainly consists of a capacitor and a coil per channel, but unlike the standard shelving designs, it has a slight resonance peak at 12 kHz and starts to fall off at 17 kHz. -
Page 8: Low Shelf/Cut
Low Shelf Low Cut... -
Page 9: High Shelf/Cut
High Shelf High Cut... -
Page 10: Low Mid
Low Mid (Wide Q) Low Mid (Narrow Q) -
Page 11: High Mid
High Mid (Wide Q) High Mid (Narrow Q) -
Page 13: Technical Details
Input impedance: 10 kOhm Output impedance: 68 Ohm CE Conformity elysia GmbH, Ringstraße 82, 41334 Nettetal, Germany, de- clares with sole responsibility that this product complies with the following norms and directives: • 2006/95/EG Low Voltage Directive (formerly 73/23/EWG or 93/68/EWG) •... -
Page 14: Warranty Info
Warranty Info The xfilter is covered by a limited warranty for a period of 2 years against defects in parts and labor from the date of purchase. Natural wear is not covered by this warranty. Repairs or replacements will not extend the warranty period. -
Page 15: Legal Info
GmbH. Other prod- uct and brand names contained in this document are used for identifica- tion purposes only. - Page 16 GmbH Ringstraße 82 41334 Nettetal Germany +49 2157 126040 info@elysia.com...
