Barco DC Toolset User Manual page 58

7. Installation

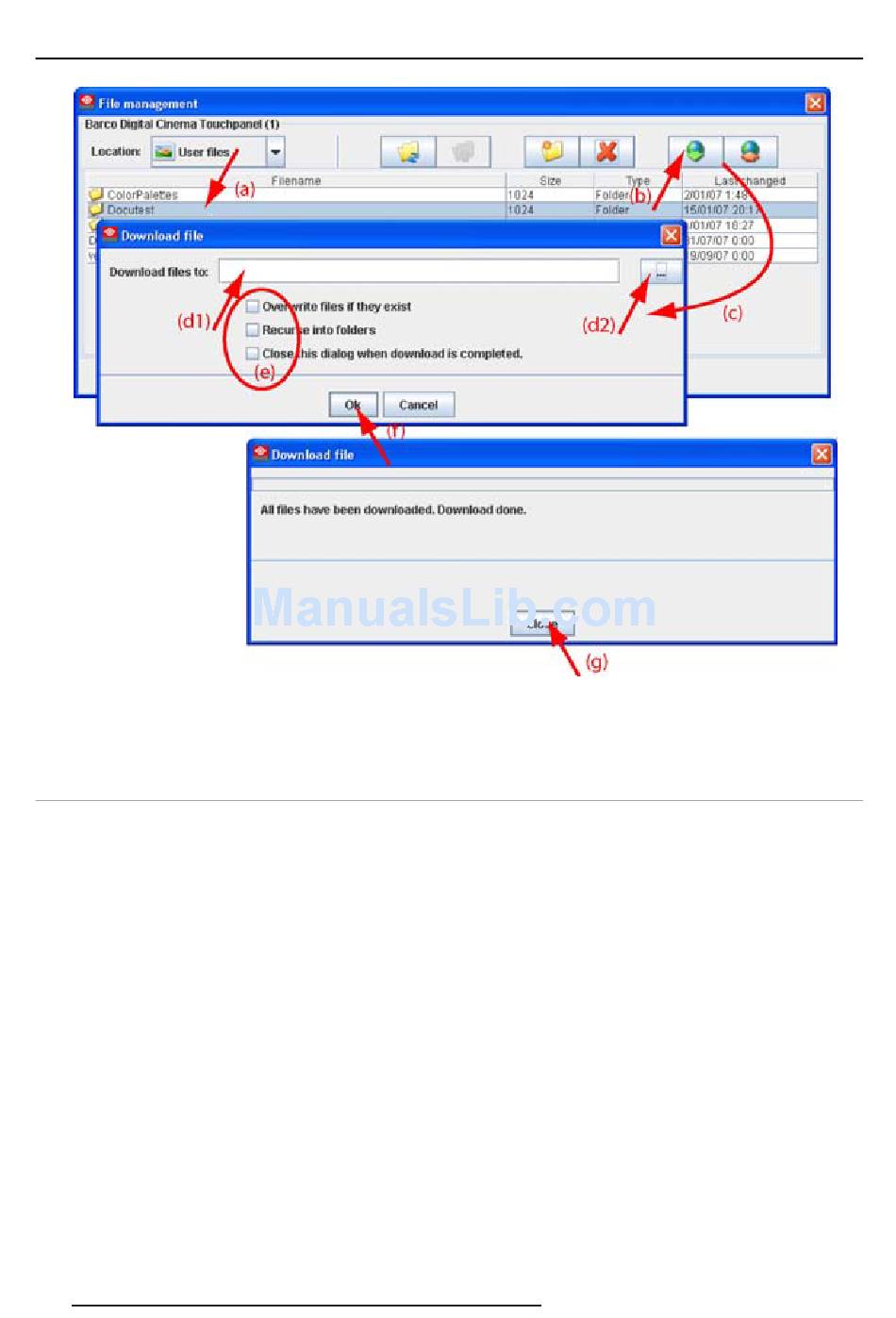

Image 7-4
Download file
7.5 Upload a file on the touch panel
What can be done ?
A file can be transferred from the computer to the touch panel and stored as user file.
How to upload
1. Click on the Upload icon (a). (image 7-5)
The Upload files window opens.
2. Click on the ... button (b) to open the browse window.
3. Browse to the desired file or folder and click Open.
The full path is displayed in Files and folders selected for upload.
4. Check or uncheck properties for handling the file (c).
- Recurse into folder : all files and sub folders are uploaded.
- Close the window when the upload is finished.
5. Click OK to start the upload (d).
When the upload is finished, a message is displayed.
6. Click Close to continue (e).
54 R59770449 DC TOOLSET 15/12/2009
