American DJ
Caution!
Always disconnect from main
power before replacing lamps or servicing unit.
Remember to always replace with same lamp
and fuse.
Thank you for purchasing this American DJ
product has been lamped and is ready to be used, there is no assembly required.
Please read the following instructions before installing or using your new unit.
Product Description:

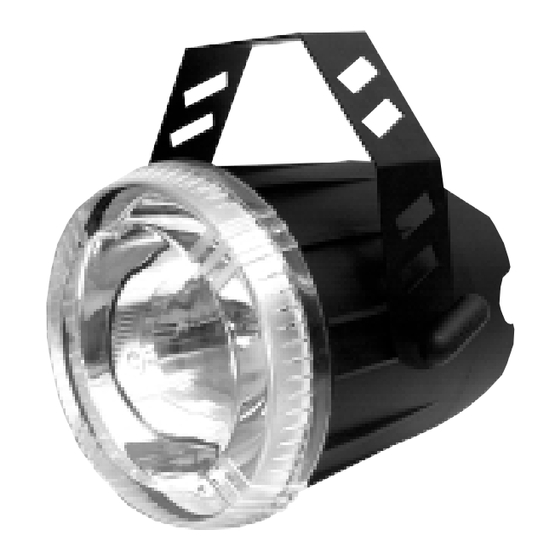

A new revolution in Strobe Lights! The Snap Shot ll™ is a 70W, ultra light weight Strobe Light. Features
include: plastic high tech case design with hanging bracket, and variable speed control (1 - 15 flashes per
second). The Snap Shot ll™can flash different colored light by replacing the interchangeable lamp cover, Snap/D.
Available colors: red, blue, green, & yellow. When connecting to a S-Matrix™ system you must connect from
output of S-Matrix to input of Snapshot™. If proper connections are not used both units will be dam-
aged.
Product Instructions:
Plug the Snap Shot ll™ into power. Flash rate may be controlled by the variable speed knob located on back of
unit. The Snap Shot ll™ is linkable via 1/4" mono jacks, and may be controlled by the American DJ® S-2A™,
S-4™, S-10A™, and the S-Matrix™. When linking, follow the "IN" & "OUT" input on back of unit. The Snap Shot
ll may be hung in a safe location by its hanging bracket.
To replace lamp; unscrew front dome of the fixture. Do not touch lamp with bare fingers, oil from fingers will ruin
lamp. Use a clean, dry cloth for replacement. Replace bulbs; reassemble.
For service, contact your American DJ
®
Snap Shot II
dealer.
®
SPECIFICATIONS:
Lamp: ZB-70 70W, Power: 120V/60Hz,
Weight: 3 lbs. Size: 7.75" x 7.75" x 8"
Fuse: 1A
American DJ
User Instructions
product. For your convenience this
®
® LOS ANGELES, CA. 90058 USA
™
