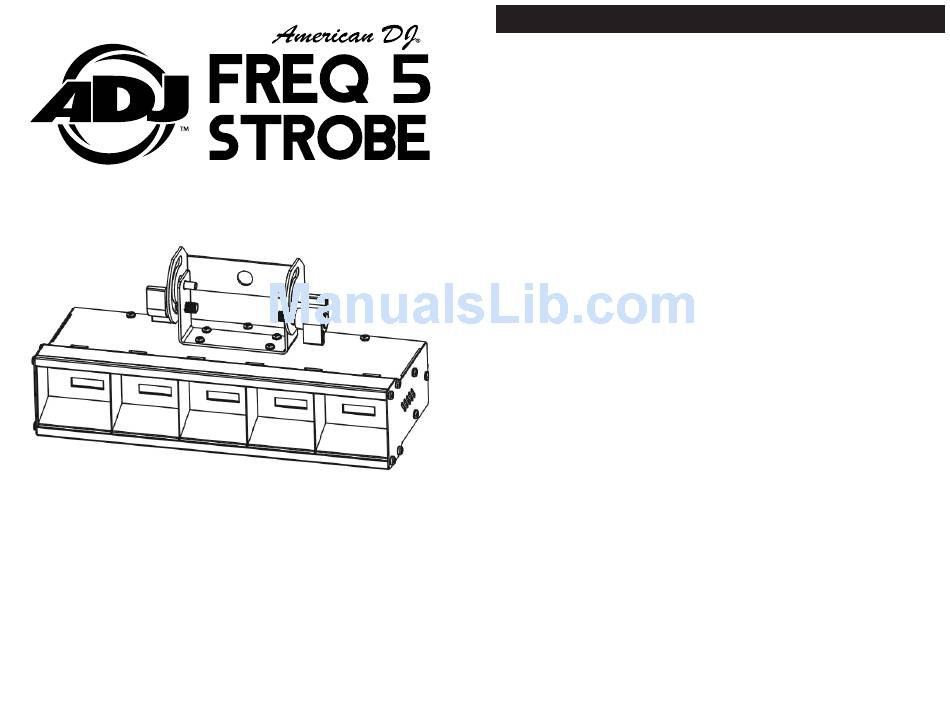

FREQ 5 Strobe
Unpacking:
Thank you for purchasing the FREQ 5 Strobe by Ameri-
can DJ
. Every FREQ 5 Strobe has been thoroughly tested and has
®
been shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your fixture for any
damage and be sure all accessories necessary to operate the unit has
arrived intact. In the case damage has been found or parts are miss-
ing, please contact our toll free customer support number for further
instructions. Do not return this unit to your dealer without first contact-
ing customer support.
Introduction:
The FREQ 5 Strobe is part of American DJ's continuing
pursuit for creating high quality affordable intelligent fixtures. The FREQ
5 Strobe is a revolutionary 5-zone LED strobe. The unit has 4 operating
modes; Sound Active (with adjustable sound sensitivity), Show Mode,
Manual Mode, or DMX Control. This unit can be used as a stand alone
fixture, or in a Master/Slave configuration. This fixture is suitable for
theaters, studios, retail stores, and other similar locations.
Customer Support:
American DJ
port line, to provide set up help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.americandj.com for any comments or
suggestions. Service Hours are Monday through Friday 8:00 a.m. to
4:30 p.m. Pacific Standard Time.
Voice:
(800) 322-6337
Fax:
(323) 582-2941
E-mail:
support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning!
To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Caution!
There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
American DJ
.
®
PLEASE recycle the shipping carton when ever possible.
American DJ Supply
- www.americandj.com - FREQ 5 Strobe Instruction Manual Page 2
©
®
