Installing Hardware

Installing Memory Modules

This motherboard accommodates one memory module. It can support one 240-pin
DDR2 533. The total memory capacity is 2 GB.
DDR2 SDRAM memory module table
Do not remove any memory module from its antistatic packaging
until you are ready to install it on the motherboard. Handle the
module only by its edge. Do not touch the components or metal
parts. Always wear a grounding strap when you handle the module.

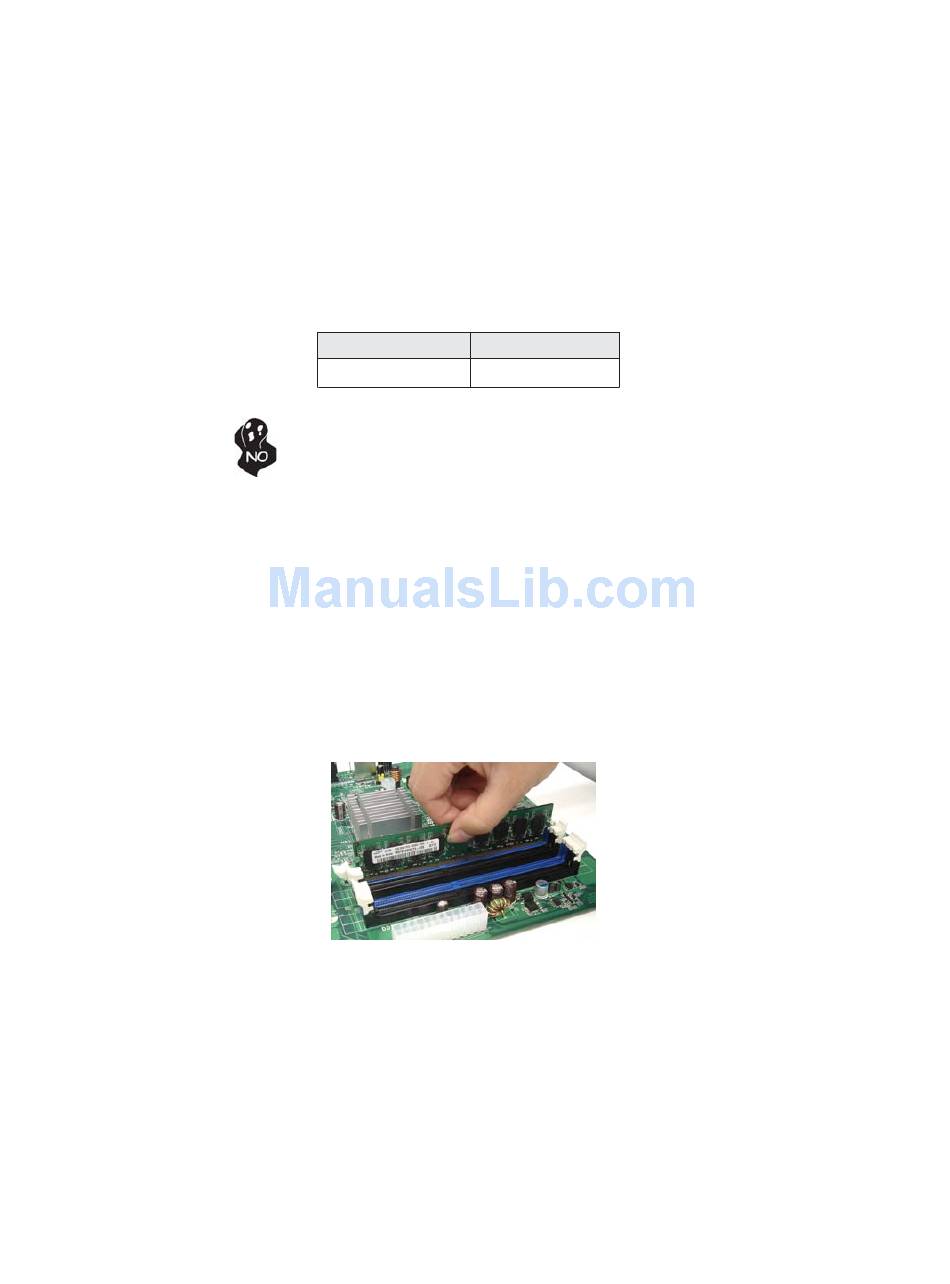

Installation Procedure
Refer to the following to install the memory modules.
1 This motherboard supports unbuffered DDR2 SDRAM .
2 Push the latches on each side of the DIMM slot down.
3 Align the memory module with the slot. The DIMM slot is keyed with
notches and the DIMM is keyed with cutouts so that it can only be
installed correctly.
4 Check that the cutouts on the DIMM module edge connector match the
notches in the DIMM slot.
5 Install the DIMM module into the slot and press it firmly down until it
seats correctly. The slot latches are levered upwards and latch on to
the edges of the DIMM.
Memory Bus
Memory module
DDR2 533 266 MHz
Installing the Motherboard
