- Page 1 CABINET PARTS REFRIGERATOR For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01 (White) (Black) (Stainless Steel) 12−09 Litho In U.S.A. (mjb)(bay) Part No. W10259042 Rev.A...
-

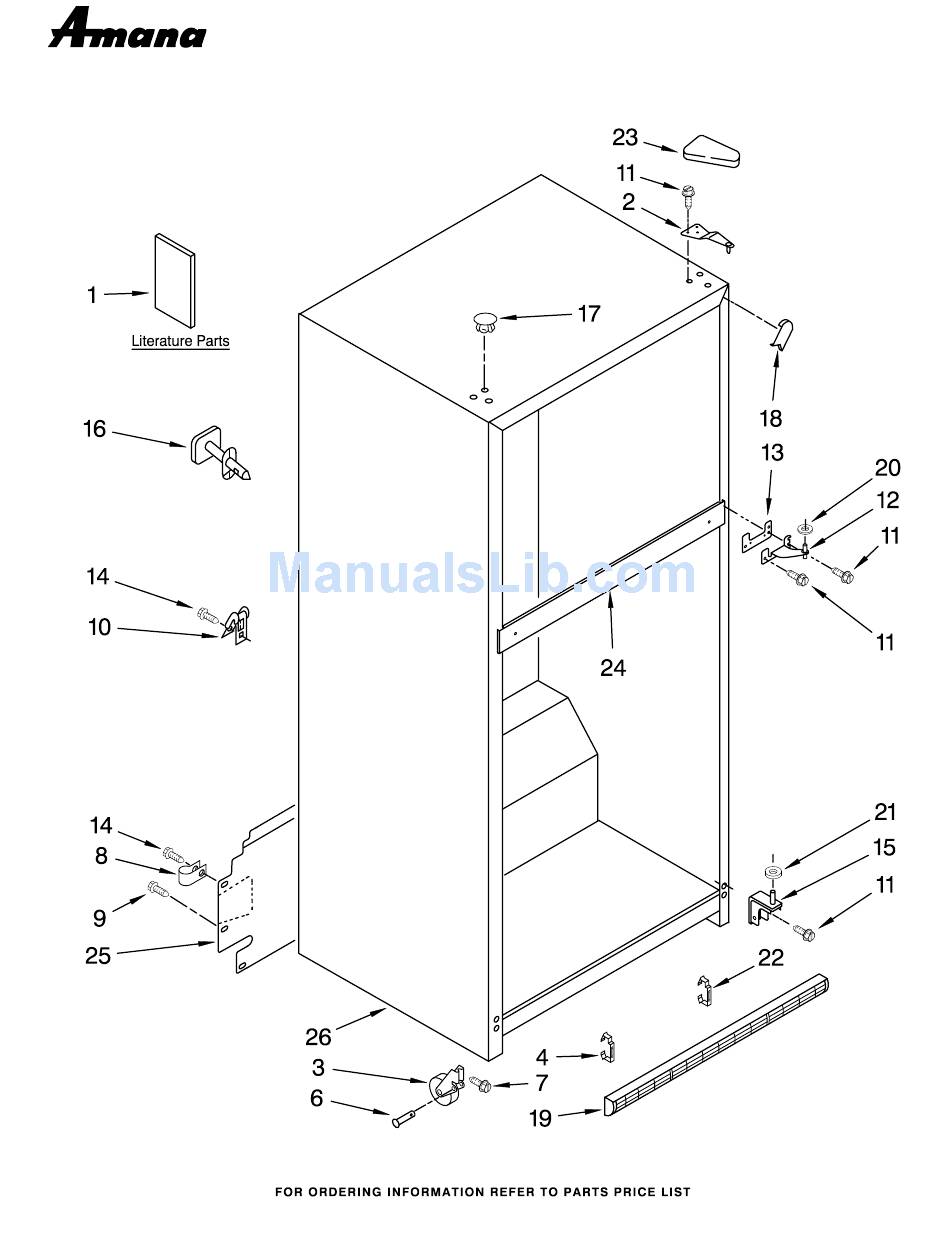

Page 2: Cabinet Parts
CABINET PARTS For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION Literature Parts W10142142 Service & Wiring Sheet W10251538 Energy Label Use & Care Guide W10208848 Bilingual W10208847 Trilingual Following May Be Purchased DO−IT−YOURSELF REPAIR MANUALS 677969 Do−It−Yourself Manual Ref./Fzr. - Page 3 LINER PARTS For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01 (White) (Black) (Stainless Steel) W10259042...
- Page 4 LINER PARTS For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2197380 Grommet (2) 2254359 Gasket, Evaporator Cover (2) 2314156 Timer, Defrost 2204640 Thermostat Tube Barrier 2310078 Wire Assembly, Control Box 2162085 Socket, Light 10 W10189703 Fan Motor 2163777 Fan Blade 2218381 Control Box...
-
Page 5: Shelf Parts
SHELF PARTS For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01 (White) (Black) (Stainless Steel) W10259042... - Page 6 SHELF PARTS For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2210522 Shelf, Ladder (2) 2300520 Shelf, Ladder Center 2163762 Cup, Shelf Mounting 2188684 Trim−Shelf, Front 489478 Screw 2169917 Glass, Shelf 2201103E Shelf−Cantilever Meat Pan 2201105 Shelf Assy 9 W10221199 Crisper Cover 2188686 Trim−Shelf, Rear 2221693 Glass, Crisper...
-
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01 (White) (Black) (Stainless Steel) W10259042... - Page 8 REFRIGERATOR DOOR PARTS For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (Includes Illus. 6 & 8) 2205395 White 2205398 Black W10141742 Stainless Steel 2189202 Bracket, Door Stop 489276 Screw, 8 x 1/2 2183003 Thimble Door Gasket, Magnetic 2202874 Mist Beige...
-
Page 9: Unit Parts
UNIT PARTS For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01 (White) (Black) (Stainless Steel) W10259042... - Page 10 UNIT PARTS For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01 (White) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2320188 Plate, Unit 2201184 Support Block Following Parts Not Illustrated Mounting 2150304 Roller (2) and Optional Parts Not Included 2264017 Capacitor 2179826 Rivet 3 W10159808 Condenser 2182338 Clip, Heater...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION Freezer Door (Includes Illus. 4 & 6) 2205399 White 2205402 Black W10141743 Stainless Steel 2189202 Bracket, Door Stop Hole Plug, EndCap 2204837 White 2204840 Black 2183003 Thimble Door Gasket, Magnetic... -
Page 12: Optional Parts
OPTIONAL PARTS For Models: A9RXNMFWW01, A9RXNMFWB01, A9RXNMFWS01 (White) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Customer Touch−Up Material ICE MAKER Parts Not Illustrated and FIELD INSTALLABLE Optional Parts (Not Included) 350942 Primer, White (12 Oz. Spray Can) 2155469 ECKMF94 350939 Enamel, Black 978941 Insulation,...
