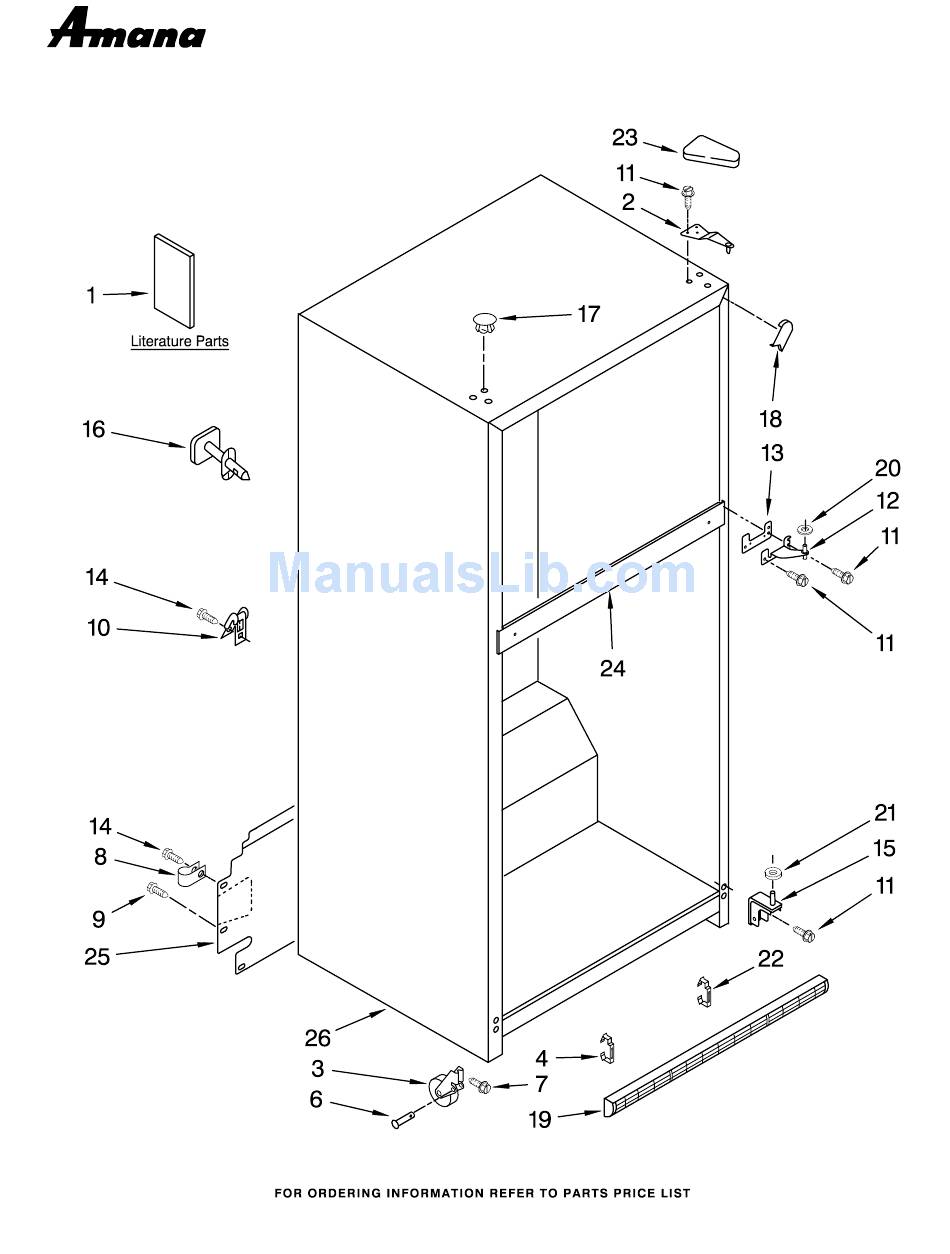

CABINET PARTS
REFRIGERATOR
For Models: A9RXNMFWW00, A9RXNMFWB00, A9RXNMFWS00
(White)
(Black)
(Stainless Steel)
12sab−09 Litho In U.S.A. (mjb) (psw)
1
Part No. W10242303 Rev.A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A9RXNMFWW00 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Amana A9RXNMFWW00

  • Page 1 CABINET PARTS REFRIGERATOR For Models: A9RXNMFWW00, A9RXNMFWB00, A9RXNMFWS00 (White) (Black) (Stainless Steel) 12sab−09 Litho In U.S.A. (mjb) (psw) Part No. W10242303 Rev.A...
  • Page 2: Cabinet Parts

    CABINET PARTS For Models: A9RXNMFWW00, A9RXNMFWB00, A9RXNMFWS00 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION Literature Parts W10142142 Service & Wiring Sheet W10251538 Energy Label Use & Care Guide W10208848 Bilingual W10208847 Trilingual Following May Be Purchased DO−IT−YOURSELF REPAIR MANUALS 677969 Do−It−Yourself Manual Ref./Fzr.
  • Page 3 LINER PARTS For Models: A9RXNMFWW00, A9RXNMFWB00, A9RXNMFWS00 (White) (Black) (Stainless Steel) W10242303...
  • Page 4 LINER PARTS For Models: A9RXNMFWW00, A9RXNMFWB00, A9RXNMFWS00 (White) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2210390 Air Separator, Liner (Not A 487996 Cap Serviceable Part) 2320192 Cover, Evaporator Assembly 527949 Light Bulb (2) 488208 Screw 2197380 Grommet (2) 2200831 Weight, Thermal 2321800 Defrost, BI−Metal...
  • Page 5: Shelf Parts

    SHELF PARTS For Models: A9RXNMFWW00, A9RXNMFWB00, A9RXNMFWS00 (White) (Black) (Stainless Steel) W10242303...
  • Page 6 SHELF PARTS For Models: A9RXNMFWW00, A9RXNMFWB00, A9RXNMFWS00 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2210522 Shelf, Ladder (2) 2300520 Shelf, Ladder Center 2163762 Cup, Shelf Mounting 2188684C Trim−Shelf, Front 489478 Screw 2169917 Glass, Shelf 2201103 Shelf−Cantilever Meat Pan 2314495 Crisper Cover 2188686C Trim−Shelf, Rear 2221693 Glass, Crisper Cover...
  • Page 7: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: A9RXNMFWW00, A9RXNMFWB00, A9RXNMFWS00 (White) (Black) (Stainless Steel) W10242303...
  • Page 8 REFRIGERATOR DOOR PARTS For Models: A9RXNMFWW00, A9RXNMFWB00, A9RXNMFWS00 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION Refrigerator Door (Includes Illus. 6 & 8) 2205395 White 2205398 Black W10141742 Stainless Steel 2189202 Bracket, Door Stop 489276 Screw, 8 x 1/2 2183003 Thimble Door Gasket, Magnetic 2202874 Mist Beige...
  • Page 9: Unit Parts

    UNIT PARTS For Models: A9RXNMFWW00, A9RXNMFWB00, A9RXNMFWS00 (White) (Black) (Stainless Steel) W10242303...
  • Page 10 UNIT PARTS For Models: A9RXNMFWW00, A9RXNMFWB00, A9RXNMFWS00 (White) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2201184 Support Block 2320188 Plate, Unit 2150304 Roller (2) Mounting Following Parts Not Illustrated 2179826 Rivet 3 W10159808 Condenser and Optional Parts Not Included 2182338 Clip, Heater 2315531 Heater, Defrost 489373 Screw...
  • Page 11: Freezer Door Parts

    FREEZER DOOR PARTS For Models: A9RXNMFWW00, A9RXNMFWB00, A9RXNMFWS00 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION Freezer Door (Includes Illus. 4 & 6) 2205399 White 2205402 Black W10141743 Stainless Steel 2189202 Bracket, Door Stop Hole Plug, EndCap 2204837 White 2204840 Black 2183003 Thimble Door Gasket, Magnetic...
  • Page 12: Optional Parts

    OPTIONAL PARTS For Models: A9RXNMFWW00, A9RXNMFWB00, A9RXNMFWS00 (White) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Refinishing Material Customer Touch−Up Material Parts Not Illustrated and Optional Parts (Not Included) 799340 Enamel, Black 350942 Primer, White (1 Qt. Uncut) (12 Oz.
