- Page 1 CABINET PARTS 29" ELECTRIC DRYER For Models: NED4800VQ1 (White) Part No. W10260028 Rev. A 3−09 Litho in U.S.A. (LT)(bay)
-
Page 2: Cabinet Parts

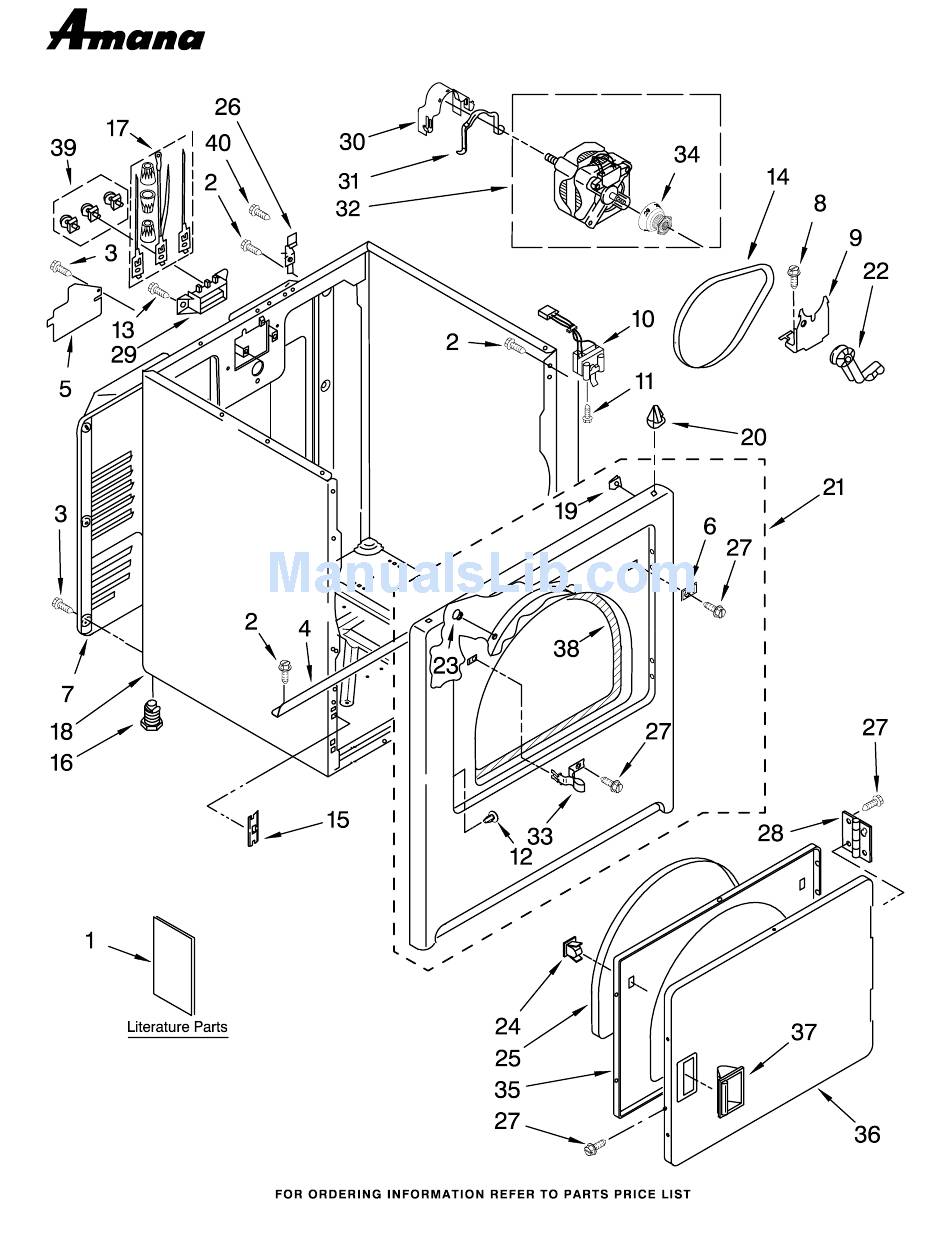

CABINET PARTS For Models: NED4800VQ1 (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3406107 Door Switch Literature Parts 685203 Clip, Felt Pad (3) Assembly W10150612 Instructions, 3389441 Catch, Door 697773 Screw, 6−20 x 7/8 Installation Assembly 3404413 Plug−Hole W10232964 Use &... - Page 3 TOP AND CONSOLE PARTS For Models: NED4800VQ1 (White) W10260028...
- Page 4 TOP AND CONSOLE PARTS For Models: NED4800VQ1 (White) Illus. Part DESCRIPTION 8274261 Panel, Rear Console 3397269 Connector (Timer) 693995 Screw, Hex Head 8271365 Cap, End (L.H.) 5 W10186092 Harness, Wiring 388326 Screw, Console 694419 Buzzer, Mini 8271359 Cap, End (R.H.) 3405156 Switch, Wrinkle Gaurd 8558463 Screen, Lint...
- Page 5 BULKHEAD PARTS For Models: NED4800VQ1 (White) W10260028...
- Page 6 BULKHEAD PARTS For Models: NED4800VQ1 (White) Illus. Part DESCRIPTION 348368 Lint Chute Assembly 487909 Screw, 8−15 x 1/2 3388703 Washer−Support 347139 Seal, Lint Chute 90767 Screw, 8−18 x 3/8 696302 Shield, Exhaust 3392519 Thermal Fuse 3387134 Thermostat, Internal−Bias 3977393 Thermal, Cut−Off (Includes Illus.
- Page 7 OPTIONAL PARTS (NOT INCLUDED) For Models: NED4800VQ1 (White) Illus. Part DESCRIPTION ACCESSORY PARTS 279948 Kit, Dryer Repair 3406839 Dry Rack 8522199 Kit, Dryer Vent Testing PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White 350938 Primer, Gray PAINT, BULK (1 qt.) 799344 White (Uncut) W10260028...
