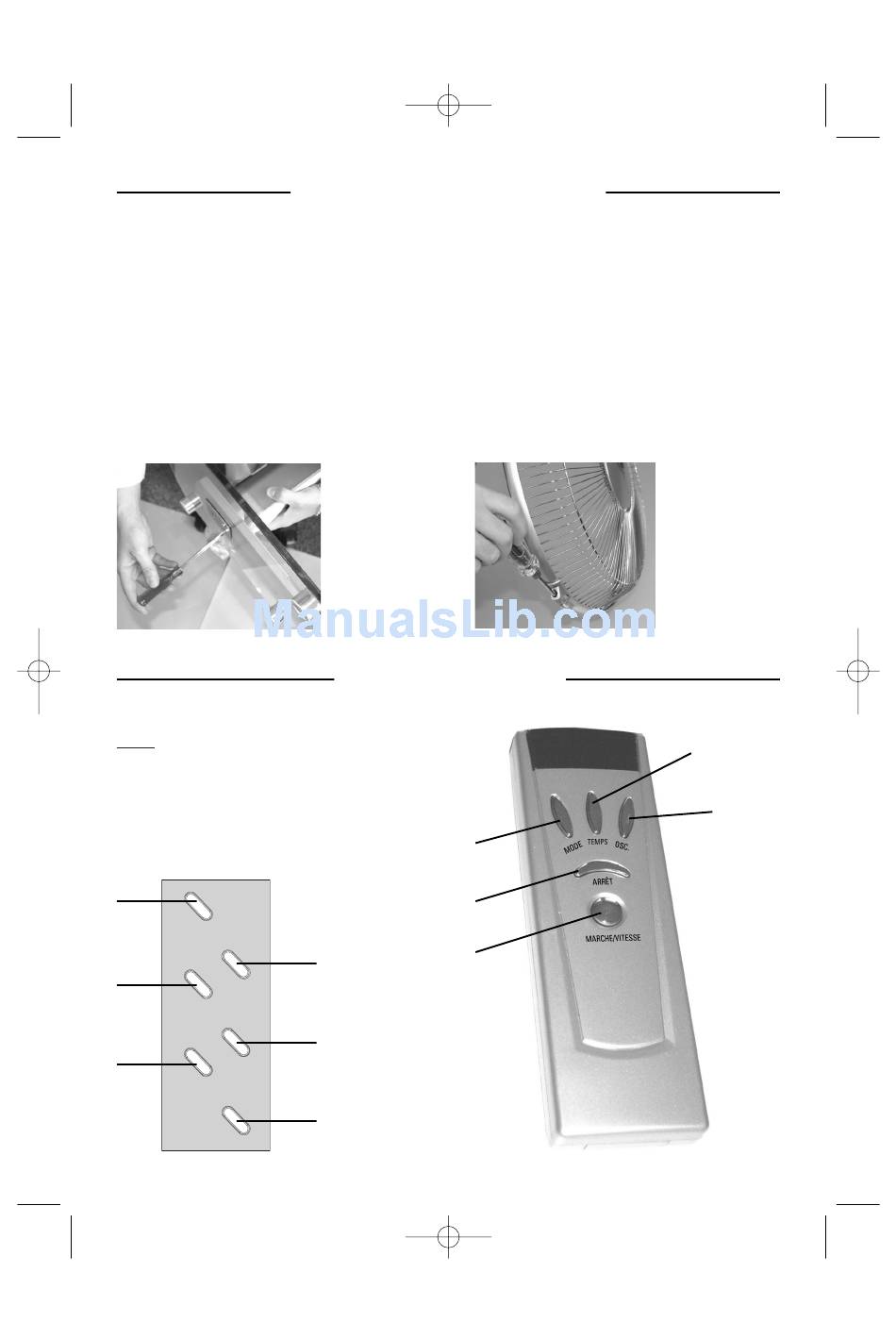

- Assemble the foot control (24) and the stand (4) and the base (21). Fix them with the 4 screws (22).
- Fix the two stands (2 and 4) by using the screw (3). (Fig. 1)
- Fit the rear guard (12) on the motor shaft (9). Secure the guard to the motor body with the guard lock nut
(13).
- Push the fan blade (14) onto the motor shaft (9). Fix the fan blade with the spinner lock nut (15). The
spinner lock nut must be tightened by turning it in anti-clockwise direction. Check that the fan blade
rotates freely by turning with your hand.
- Unscrew the guard securing clip (17). Press the rim of the front guard (16) onto the rear guard (12).
Close the clip and tighten the screw. (Fig. 2)
- Place the aroma box (18) and push the cap (19).
Note : insert batteries type AAA in the
remote control.
Control panel
B
M/V
D
Temps
C
Mode
2/01/06 14:49
ASSEMBL Y OF THE APPLIANCE
ASSEMBL Y OF THE APPLIANCE
Fig. 1
USING OF APPLIANCE
USING OF APPLIANCE
A
Arrêt
E
Osc.
F
Ion
9
Page 9
C
A
B
Fig. 2
Remote control
D
E
