Summary of Contents for AudioBahn ABD40J
- Page 1 ABD40J OWNER’S MANUAL...
- Page 2 Judge for yourself, and remember what it’s all about, “If it’s not Bigger, Bad- der & Better, it’s not Audiobahn.” If audio is your life, Audiobahn is the brand for you! We make you look as good as you sound. People never stop trying to get the best...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction___________________________________________________ Features and Specifications______________________________________ Controls and Functions__________________________________________ Installation____________________________________________________ Warning and Disclaimer__________________________________________ Warranty______________________________________________________ 9-10... -
Page 4: Introduction
Authorized Audiobahn Dealer, as we provide specialized training through our Audiobahn Installer Training Programs. Please read your warranty, keep your receipt, and original carton for possible future use. To get a free brochure on Audiobahn products in the US call (714) 452-1476 or e-mail us at sales@audiobahn.com. WARNING Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. -
Page 5: Features And Specifications

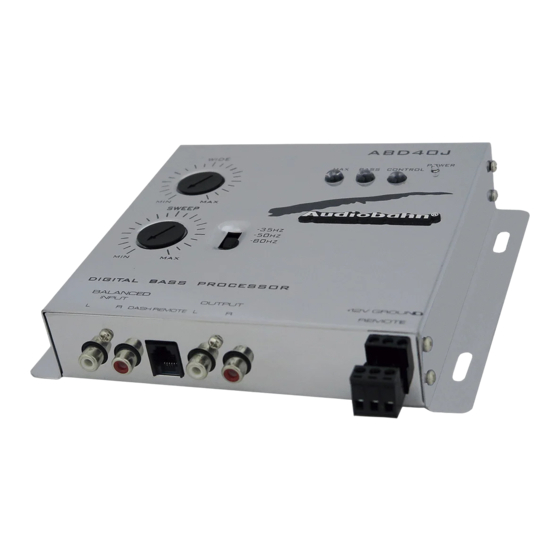

Features and Specifications Because of the variation in the process, we developed the ABD40J to help restore the low frequencies lost during the process, but the acoustics of various environments are different. Sweep control allows you to select a center frequency (the frequency most affected) be- tween 27Hz - 63Hz Width control then allows you to control the range of other filters centered on the frequency Sweep. - Page 6 controls and functions AB D 4 0 J WIDE POWER BASS CONTROL SWEEP -35Hz -50Hz -80Hz D IGITAL B AS S RECON S TRU CTION PROCES S OR BALANCED INPUT OUTPUT +12V GROUND DASH REMOTE REMOTE LEVEL 1. Balanced Input: Low Input is used to balance the input circuit to help minimize noise. They are designed to handle high voltage signals up to 15 volts.
-
Page 7: Controls And Functions
CONTROLS AND FUNCTIONS 7.5V 2.5V GROUND 200Ohm UNBAL Left Right 9. Ground input: For most systems you can leave this jumper in the balanced position, for some systems, the power source can find a ground through the RCA connectors. In this case, change the jumpers to the UNBALANCED position. 10. -
Page 8: Installation
Installation A B D 4 0 J WIDE POWER BASS CONTROL SWEEP -35Hz -50Hz -80Hz D I GI TA L B A S S RECO N S TRU CTI ON PROCES S OR BALANCED INPUT OUTPUT +12V GROUND DASH REMOTE REMOTE LEVEL BATTERY... -
Page 9: Warning And Disclaimer
Using a fuse of a different type or rating may result in damage to this system which is not covered by the warranty. Disclaimer Specifications are subject to change without notice. For the most updated Specifications call Audiobahn, your local Authorized Audiobahn Dealer, or check the Audiobahn web site. www.audiobahn.com... -
Page 10: Warranty
Because of this we recommend that you have your new products installed by an Au- thorized Audiobahn Dealer. (A list of Authorized Audiobahn Dealers can be found on our web page). Warranty Period: One year from the original date of purchase. - Page 11 Any product found to have a manufacturer defect will be replaced with a new piece of the same or similar model, or repaired at the discretion of Audiobahn. Any product found to have no manufacturer defect will be returned to the sender at their cost.
- Page 12 7050 Village Drive, Bldg G Buena Park, CA 90621 714-452-1476 o ce 888-880-8469 fax info@audiobahn.com PROUD SPONSOR OF Follow us on Facebook and Twitter...
