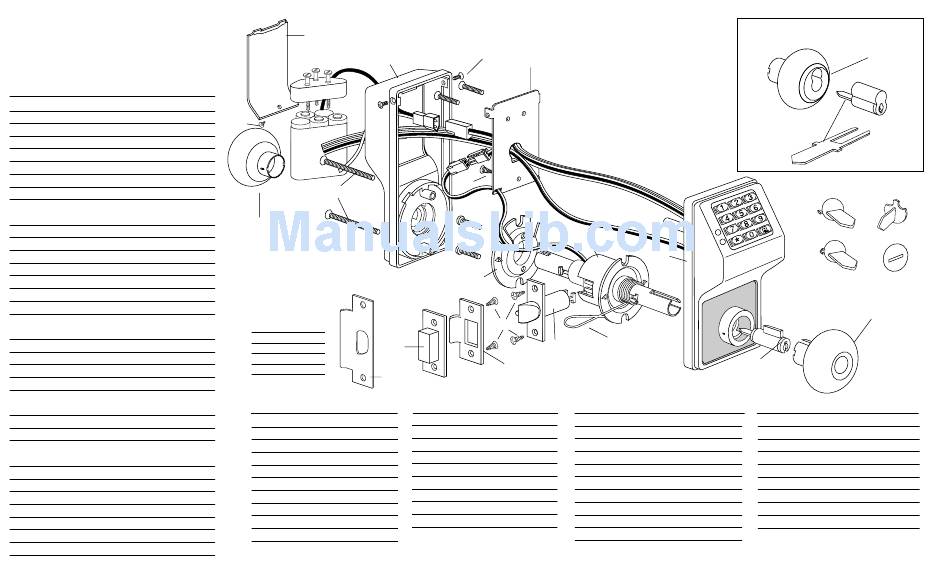

Alarm Lock DL 2750WP Parts List

MODEL DL 2750WP
KNOB SET
PARTS LIST
Standard Cylinder and Interchangeable Core Models
Key Part No. Description
1a HW592-US3 Battery Cover
1b HW592-US5 Battery Cover
1c HW592-26D Battery Cover
1d HW592-26 Battery Cover
2a S6033-US3 Inside Knob
2b S6033-US5 Inside Knob
2c S6033-26D Inside Knob
2d S6033-26 Inside Knob
Thru Bolt/10-32x2-1/2", (2)
3a SC458-US3 Flat Hd.,PH,MS
3b SC458-US5 Flat Hd.,PH,MS
3c SC458-26D Flat Hd.,PH,MS
3d SC458-26 Flat Hd.,PH,MS
4a S6037-US3 Inside Housing Ass'y
4b S6037-US5 Inside Housing Ass'y
4c S6037-26D Inside Housing Ass'y
4d S6037-26 Inside Housing Ass'y
Inside Mounting Screws (2)
5a P1526-US3 #6-32x3/8", Oval Hd
5b P1526-US5 #6-32x3/8", Oval Hd
5c P1526-26D #6-32x3/8", Oval Hd
5d P1526-26 #6-32x3/8", Oval Hd
6 HW594 Inside Mounting Plate
Inside Mounting Plate Screws (2)
7 SC459 #8-32 x 1", Flat Hd., PH, MS
8a P5851-26D #4-40x1/4", Flat Hd., PH, MS
8b P5851-US3 #4-40x1/4", Flat Hd., PH, MS
Inside Rose Screws (2)
9 SC457 #10-32 x 1", w/#8 Pan Hd, PH, MS
10 HW564 Inside Rose
11 S6038 Lock Body Assembly
11a S6039 IC Lock Body Assembly
12a S6036-US3 Outside Housing Ass'y
12b S6036-US5 Outside Housing Ass'y
12c S6036-26D Outside Housing Ass'y
12d S6036-26 Outside Housing Ass'y
1
4
8
27
3
2
FINISH LEGEND
US3 Polished Brass
20
US5 Antique Brass
26D Satin Chrome
26 Polished Chrome
26
Key Part No. Description Key Part No.
16 HW618
13a HW736-US3 Std. CylinderAssembly
17a S6034-US3
13b HW736-26D Std. Cylinder Assembly
17b S6034-US5
14a S6031-US3 Outside Knob Assembly
17c S6034-26D
14b S6031-US5 Outside Knob Assembly
17d S6034-26
14c S6031-26D Outside Knob Assembly
17e S6035-US3
14d S6031-26 Outside Knob Assembly
17f S6035-US5
15a S6032-US3 Outside Knob-I C Core Ass'y
17g S6035-26D
15b S6032-US5 Outside Knob-I C Core Ass'y
17h S6035-26
15c S6032-26D Outside Knob-I C Core Ass'y
15d S6032-26 Outside Knob-I C Core Ass'y
5
6
7
18
11
9
10
18
16
17
19
Description Key Part No.
Knob Release Pin 18a SC460-US3 #8x3/4" Combination screw
Latch - 2-3/4" Backset
18b SC460-US5 #8x3/4" Combination screw
Latch - 2-3/4" Backset 18c SC460-26D #8x3/4" Combination screw
Latch - 2-3/4" Backset 18d SC460-26 #8x3/4" Combination screw
Latch - 2-3/4" Backset
19a HW577-US3 Strike 2-3/4" x 1-1/8"
Latch - 2-3/8" Backset 19b HW577-US5 Strike 2-3/4" x 1-1/8"
Latch - 2-3/8" Backset 19c HW577-26D Strike 2-3/4" x 1-1/8"
Latch - 2-3/8" Backset
19d HW577-26 Strike 2-3/4" x 1-1/8"
Latch - 2-3/8" Backset 20 P5847 Dust Box
21 HW598 IC Tailpiece for Best, Arrow, Falcon
IC INTERCHANGEABLE CORE
21
22
24
12
13
Description Key Part No.
22 HW597 Std. Tailpiece
23 HW580 Replacement tailpiece for Schlage
24 HW620 Replacement tailpiece for Lori
25 WA160 Tailpiece washer for all tailpieces
26a P5846-26D Strike 4-7/8" x 1-1/4"
26b P5846-US5 Strike 4-7/8" x 1-1/4"
26c P5846-US3 Strike 4-7/8" x 1-1/4"
26d P5846-26 Strike 4-7/8" x 1-1/4"
27 S6040 Battery Pack Ass'y
15
TAILPIECES
23
25
14
Description
WI990 6/99
