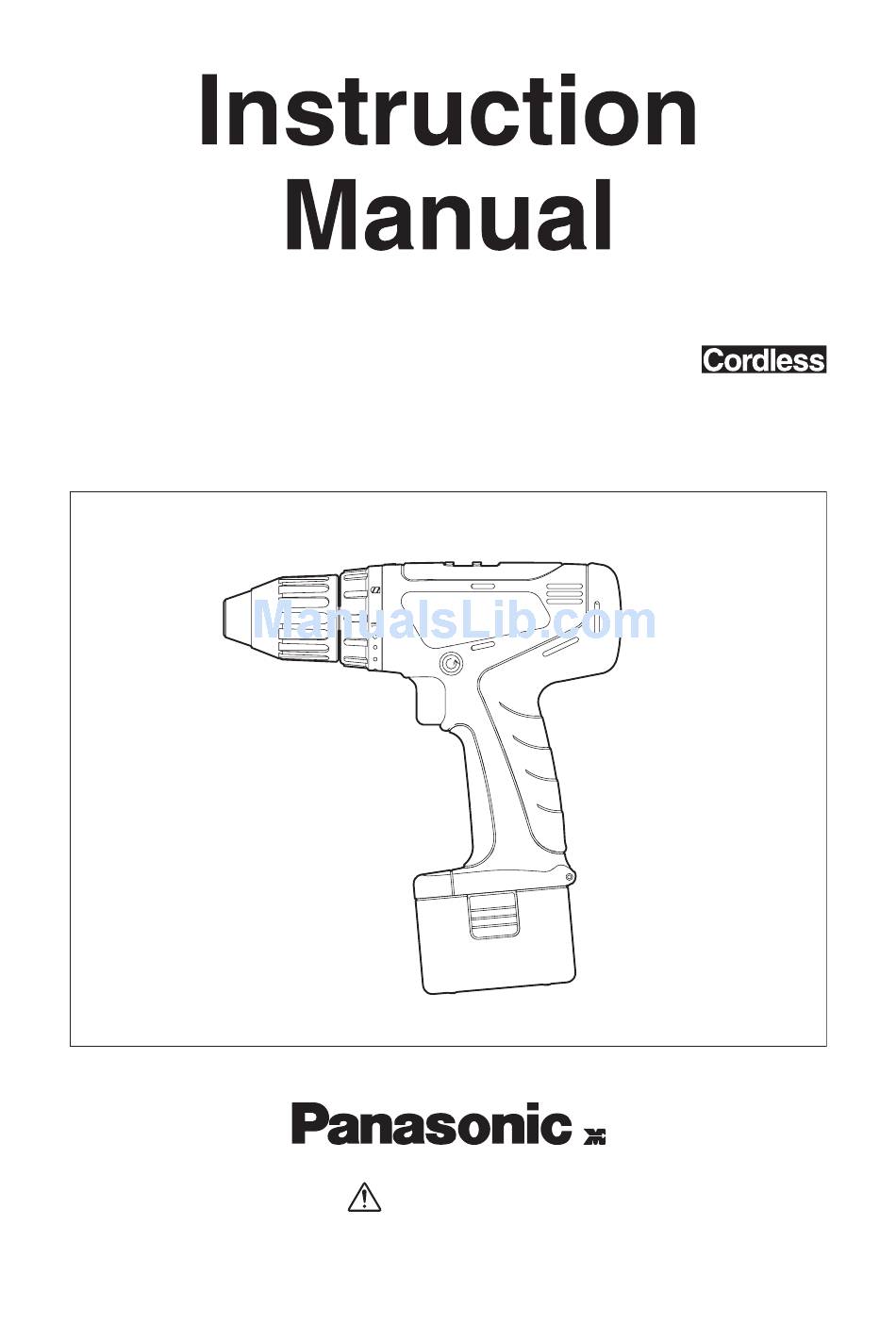

Panasonic EY6405FQKW Instruction Manual

Variable speed cordless drill & driver.
Hide thumbs

Advertisement

Variable Speed
Drill & Driver
Model: EY6405/EY6409/EY6432
IMPORTANT
This manual contains safety information. Read manual completely before first using this
product, and save this manual for future use.

Advertisement

   Related Manuals for Panasonic EY6405FQKW

   Summary of Contents for Panasonic EY6405FQKW

  • Page 1 Variable Speed Drill & Driver Model: EY6405/EY6409/EY6432 IMPORTANT This manual contains safety information. Read manual completely before first using this product, and save this manual for future use.
  • Page 2: Work Area

    I. GENERAL SAFETY ing a power tool. Do not use tool while tired or under the influence of RULES FOR ALL drugs, alcohol, or medication. BATTERY OPERATED A moment of inattention while operating TOOLS power tools may result in serious per- sonal injury.
  • Page 3 A tool that cannot be controlled with the 22) When servicing a tool, use only iden- switch is dangerous and must be tical replacement parts. Follow repaired. instructions in the Maintenance sec- tion of this manual. 15) Disconnect battery pack from tool or Use of unauthorized parts or failure to place the switch in the locked or off follow Maintenance Instructions may...
  • Page 4 III. FOR BATTERY CHARGER & RECOMMENDED MINIMUM AWG SIZE OF EXTENSION CORDS FOR BATTERY PACK BATTERY CHARGERS AC Input Rating. Amperes AWG Size of Cord SAVE THESE IN- Length of Cord, Feet Equal to or But less greater than than 100 150 STRUCTIONS -This...
  • Page 5 19) The charger is designed to operate on standard household electrical power only. Do not attempt to use it on any other voltage! 20) Do not abuse cord. Never carry charger by cord or yank it to disconnect from outlet. Keep cord away from heat, oil and sharp edges.
  • Page 6 IV. FUNCTIONAL DESCRIPTION * EY6405 is referred for illustration. Keyless drill chuck Clutch handle Forward / Reverse lever Variable speed control trigger Speed selector switch Bit holder Battery pack (EY9106/EY9200/EY9201/ Battery pack release button EY9136/EY9230/EY9231) Battery charger (EY0230) — —...
  • Page 7 V. ASSEMBLY Attaching or removing bit Attaching or removing battery pack Note: When attaching or removing a bit, be sure 1. To connect the battery pack: to set the Forward/Reverse lever to its cen- Insert the battery pack. It snaps into place to ter position (switch lock).
  • Page 8 Clutch Torque Setting Ni-Cd Battery pack (EY9106/EY9136) Adjust the torque to one of the 18 possible set- • Nickel cadmium battery pack requires a tings or “ ” position to the job. “BREAK-IN PERIOD” to reach maximum oper- CAUTION: Test the setting before actual opera- ating capacity.
  • Page 9 5. When in any of the conditions that battery Note: • When charging a cool battery pack pack is too cool, or the battery pack has not (below 5°C) in a warm place, leave the been used for a long time, the charging lamp battery pack at the place and wait for starts flashing slowly to indicate protective more than one hour to warm up the bat-...
  • Page 10 IX. ACCESSORIES Use only bits suitable for size of drill’s chuck. MAXIMUM RECOMMENDED CAPACITIES Model EY6405 EY6409 EY6432 Machine screw Screw Wood screw ø 6.8 mm (17/64") ø 6.8 mm (17/64") ø 8 mm (5/16") driving Self-drilling screw ø 6 mm (15/64") ø...
  • Page 11 ATTENTION For Ni-Cd Battery Packs, EY9106, EY9136 A nickel cadmium battery that is recyclable powers the product you have purchased. At the end of its useful life, under various state and local laws, it is illegal to dispose of this battery into your municipal waste stream.
  • Page 12 30-DAY QUALITY SATISFACTION GUARANTEE: If you are dissatisfied with any Panasonic Cordless Power Tool for any reason, sim- ply return it to the place of purchase with a dated proof of purchase, in the original packaging, with all accessories, parts...
