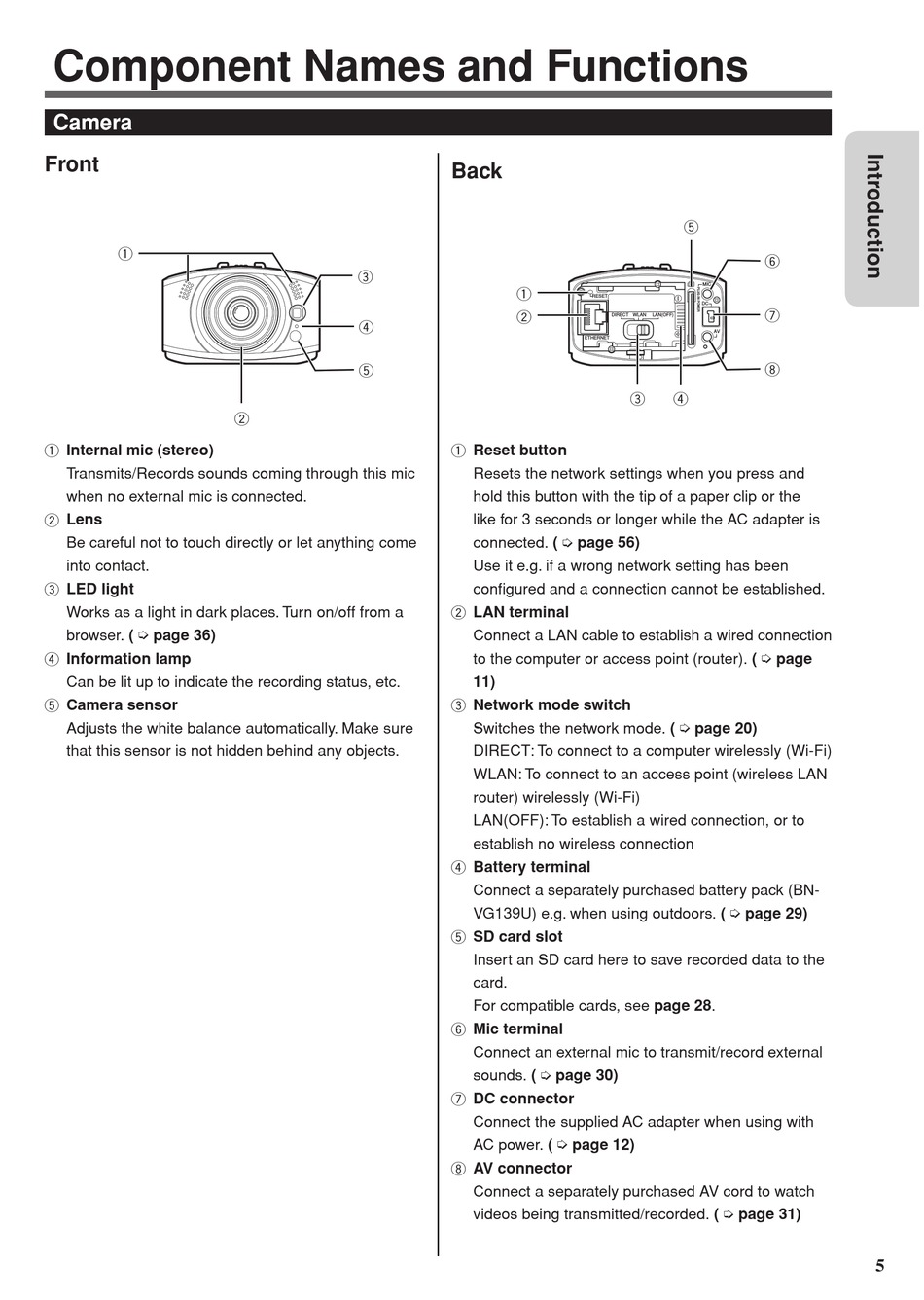

Component Names and Functions

Camera

Front
1
1 Internal mic (stereo)
Transmits/Records sounds coming through this mic
when no external mic is connected.
2 Lens
Be careful not to touch directly or let anything come
into contact.
3 LED light
Works as a light in dark places. Turn on/off from a
browser. ( ➭ page 36)
4 Information lamp
Can be lit up to indicate the recording status, etc.
5 Camera sensor
Adjusts the white balance automatically. Make sure
that this sensor is not hidden behind any objects.
3
4
5
2
Back
1
RESET
2
DIRECT WLAN
ETHERNET
1 Reset button
Resets the network settings when you press and
hold this button with the tip of a paper clip or the
like for 3 seconds or longer while the AC adapter is
connected. ( ➭ page 56)
Use it e.g. if a wrong network setting has been
configured and a connection cannot be established.
2 LAN terminal
Connect a LAN cable to establish a wired connection
to the computer or access point (router). ( ➭ page
11)
3 Network mode switch
Switches the network mode. ( ➭ page 20)
DIRECT: To connect to a computer wirelessly (Wi-Fi)
WLAN: To connect to an access point (wireless LAN
router) wirelessly (Wi-Fi)
LAN(OFF): To establish a wired connection, or to
establish no wireless connection
4 Battery terminal
Connect a separately purchased battery pack (BN-
VG139U) e.g. when using outdoors. ( ➭ page 29)
5 SD card slot
Insert an SD card here to save recorded data to the
card.
For compatible cards, see page 28.
6 Mic terminal
Connect an external mic to transmit/record external
sounds. ( ➭ page 30)
7 DC connector
Connect the supplied AC adapter when using with
AC power. ( ➭ page 12)
8 AV connector
Connect a separately purchased AV cord to watch
videos being transmitted/recorded. ( ➭ page 31)
5
6
MIC
DC
7
LAN(OFF)
AV
8
3
4
5
