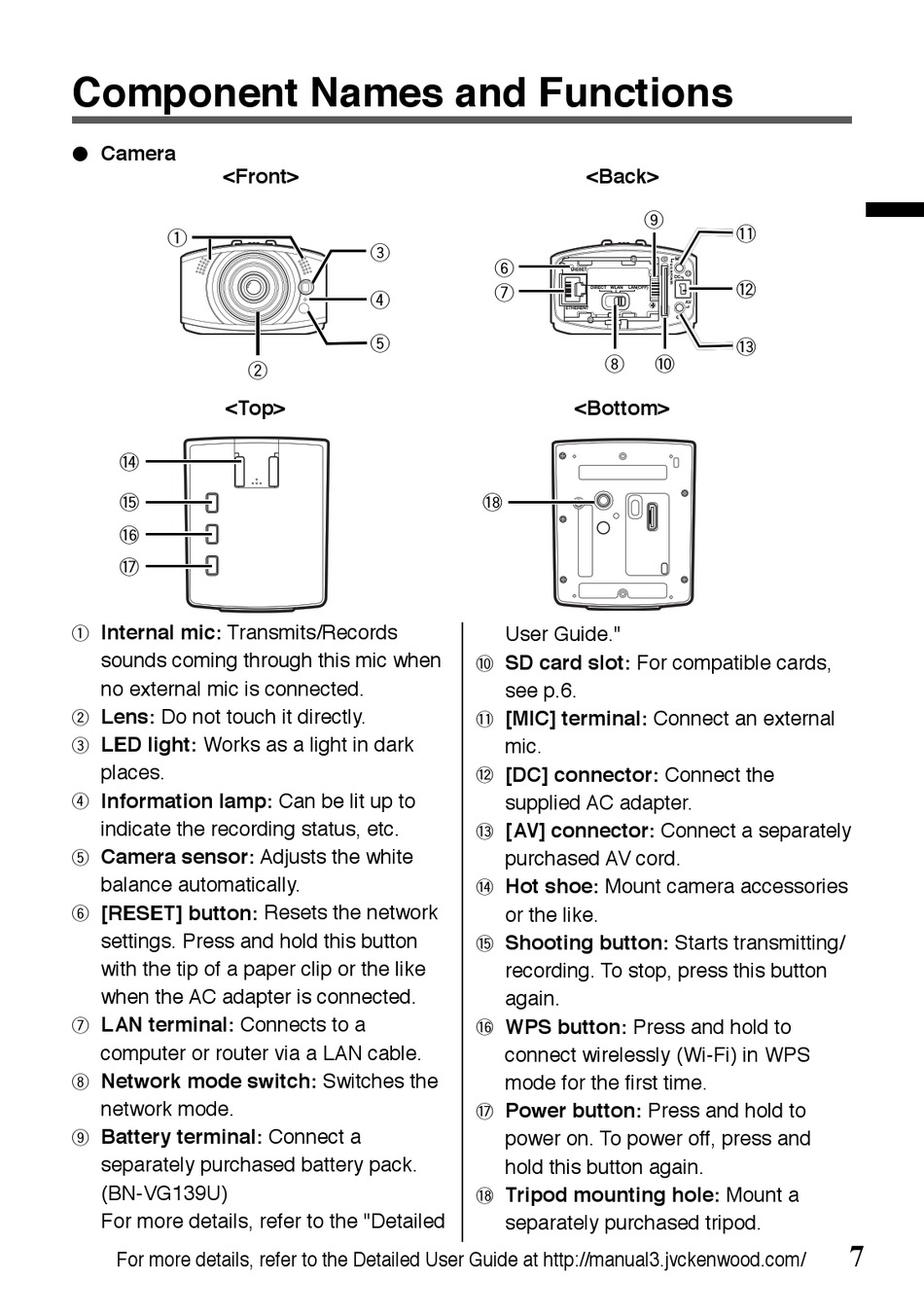

Component Names and Functions

● Camera
<Front>
1
<Top>
!
@
#
$
Internal mic: Transmits/Records
1
sounds coming through this mic when
no external mic is connected.
Lens: Do not touch it directly.
2
LED light: Works as a light in dark
3
places.
Information lamp: Can be lit up to
4
indicate the recording status, etc.
Camera sensor: Adjusts the white
5
balance automatically.
[RESET] button: Resets the network
6
settings. Press and hold this button
with the tip of a paper clip or the like
when the AC adapter is connected.
LAN terminal: Connects to a
7
computer or router via a LAN cable.
Network mode switch: Switches the
8
network mode.
Battery terminal: Connect a
9
separately purchased battery pack.
(BN-VG139U)
For more details, refer to the "Detailed
For more details, refer to the Detailed User Guide at http://manual3.jvckenwood.com/
3
4
5
2
<Back>
9
6
RESET
7
DIRECT WLAN
LAN(OFF)
ETHERENT
8
<Bottom>
%
User Guide."
SD card slot: For compatible cards,
0
see p.6.
[MIC] terminal: Connect an external
-
mic.
[DC] connector: Connect the
=
supplied AC adapter.
[AV] connector: Connect a separately
~
purchased AV cord.
Hot shoe: Mount camera accessories
!
or the like.
Shooting button: Starts transmitting/
@
recording. To stop, press this button
again.
WPS button: Press and hold to
#
connect wirelessly (Wi-Fi) in WPS
mode for the fi rst time.
Power button: Press and hold to
$
power on. To power off, press and
hold this button again.
Tripod mounting hole: Mount a
%
separately purchased tripod.
-
MIC
DC
=
AV
~
0
7
