RA820DD – Hotpoint 20" Free-Standing Electric Range

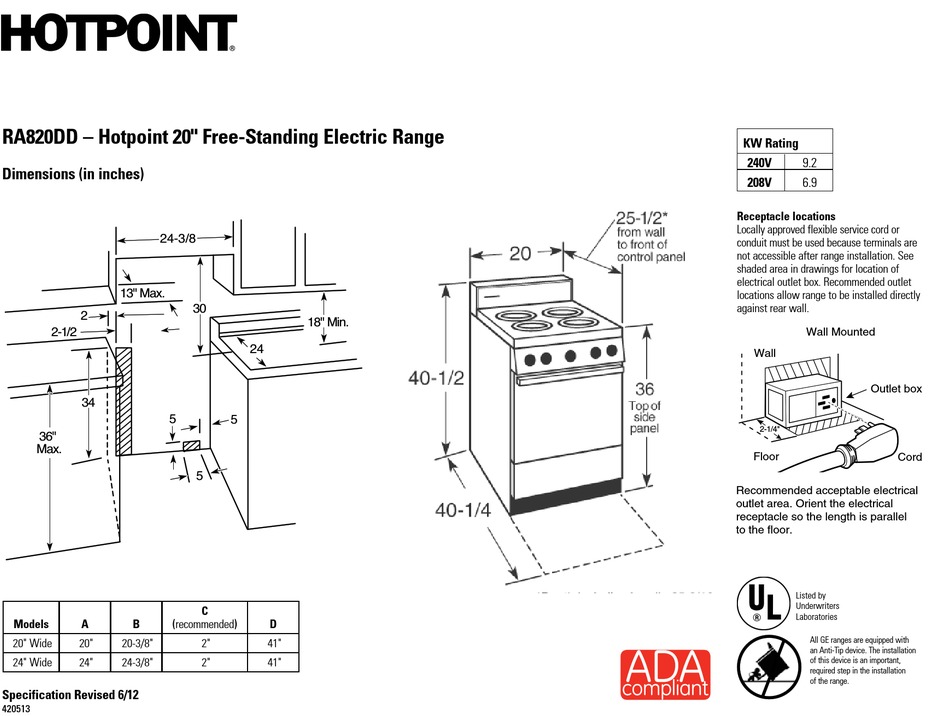

Installation information
(in inches)
Dimensions (in inches)
24-3/8
13" Max.
2
2-1/2
34
5
36"
Max.
Models
A
B
(recommended)
20" Wide
20"
20-3/8"
24" Wide
24"
24-3/8"
Specification Revised 6/12
420513
30
18" Min.
24
5
5
C
D
2"
41"
2"
41"
KW Rating
240V
9.2
208V
6.9
Receptacle locations
Locally approved flexible service cord or
conduit must be used because terminals are
not accessible after range installation. See
shaded area in drawings for location of
electrical outlet box. Recommended outlet
locations allow range to be installed directly
against rear wall.
Wall Mounted
Wall
Outlet box
2-1/4"
Floor
Cord
Recommended acceptable electrical
outlet area. Orient the electrical
receptacle so the length is parallel
to the floor.
Listed by
Underwriters
Laboratories
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
