Hotpoint RA724K Dimension Manual

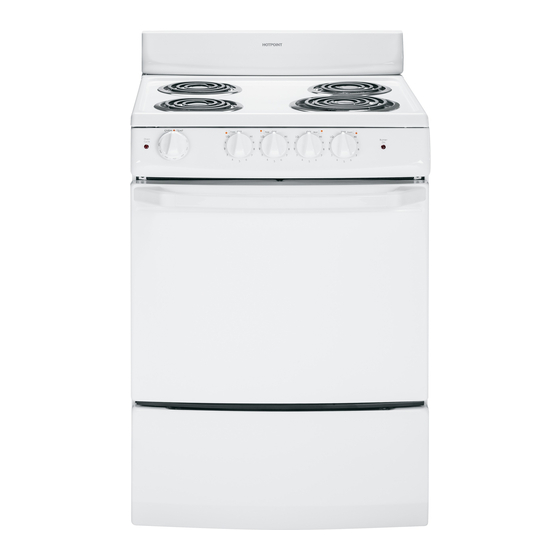

RA724K – Hotpoint 24" Free-Standing Electric Range
Dimensions (in inches)
B
13"
30" MIN
MAX
2-1/2
5
2
36" MAX
40-1/2
Surface
mount
outlet
(Depth with
door open)
Models A B (recommended)
20" Wide 20" 20-3/8"
24" Wide 24" 24-3/8"
Specification Revised 11/06
420512
From combustible
15" MIN
walls above
cooking surface
A
C
36
D
C
D
2" 41"
2" 41"
Wall Mounted
Wall
Outlet box
2-1/4"
Floor
Recommended acceptable electrical
outlet area. Orient the electrical
receptacle so the length is parallel
to the floor.
KW Rating
240V 9.2
208V
6.9
Receptacle locations
Locally approved flexible service cord or
conduit must be used because terminals are
not accessible after range installation. See
shaded area in drawings for location of
electrical outlet box. Recommended outlet
locations allow range to be installed directly
Cord
against rear wall.
Listed by
Underwriters
Laboratories
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
