Multi Control Devices
Lever and Push Operation Type Switch
SLLB5
Series
Compact two-way input device approximately 50% smaller than our conventional models.
Typical Specifications
Items
Rating max.
min.
Contact resistance
Lever portion
Operating force
Push portion
Travel Push operation
Operating life
Product Line
Actuator
Push-on switch
configuration
Mounting knob
integrated
Mounting knob
Notes
1. Products other than those listed in the above chart are also available. Please contact us for details.
2. Please contact us for automotive use products.
Resistive load
Location lug
With
Without
With
With
Without
Features
On of the smallest two-way operation devices in the industry.
The projected area is 50% smaller than our SLLB series
G
G
(9.5
8.8
2.2mm).
Reflow solderable.
Applications
For menu selection/decision in mobile phones, personal digital
assistants, portable audio devices and digital still cameras
For DVD players/recorders, digital still cameras, flat panel TVs and
notebook PCs
Specifications
10mA 5V DC /50BA 3V DC
1
max.
0.65%0.3N
2.5%1N
0.7mm
100,000cycles
Minimum packing
unit pcs.
1,500
Refer to P.311 for taping package specifications.
Drawing
Product No.
No.
SLLB510100
1
SLLB510200
SLLB520100
2
SLLB520200
Refer to P.310 for product specifications.
Detector
Push
Slide
Rotary
Encoders
Power
Dual-in-line
Package Type
Multi Control
Devices
TACT Switch
TM
Custom-
Products
Variable
Resistor Type
Switch
Type
305
Advertisement
Related Manuals for Alps Electric SLLB5 Series
Summary of Contents for Alps Electric SLLB5 Series

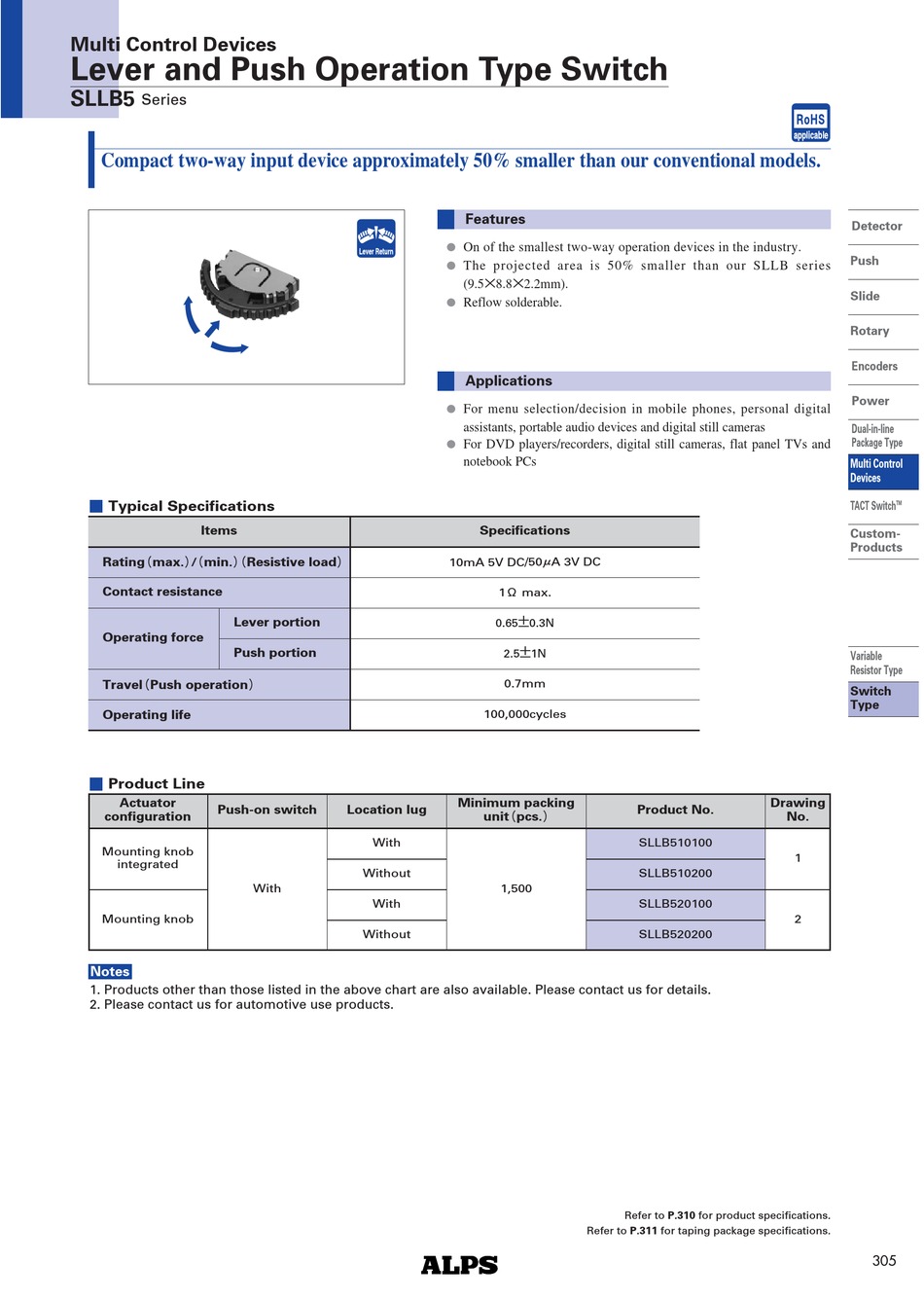

- Page 1 Multi Control Devices Lever and Push Operation Type Switch SLLB5 Series Compact two-way input device approximately 50% smaller than our conventional models. Features Detector On of the smallest two-way operation devices in the industry. Push The projected area is 50% smaller than our SLLB series (9.5 2.2mm).
