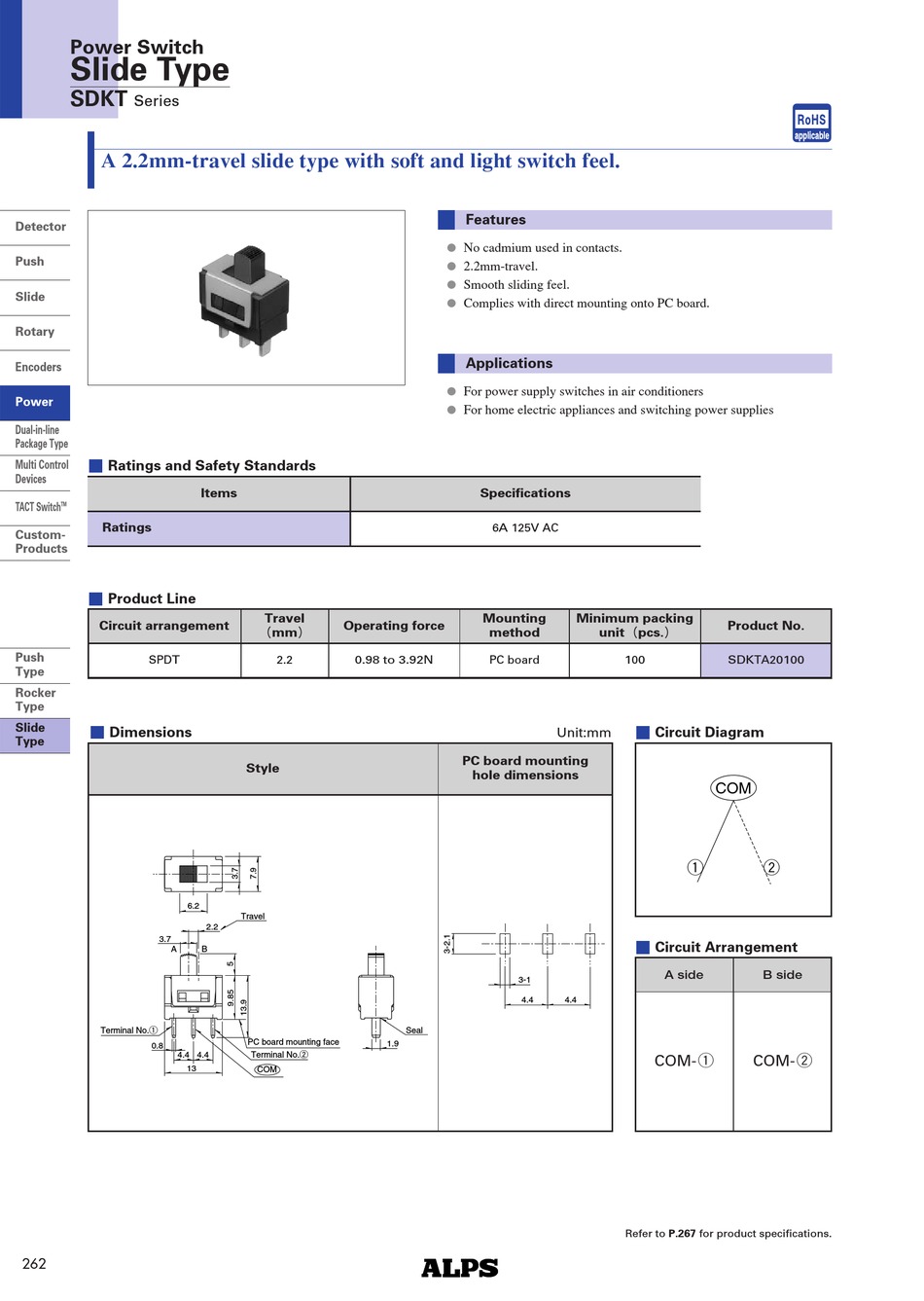

Alps Electric SDKT Series Specifications

Power Switch

Slide Type
SDKT
Series
A 2.2mm-travel slide type with soft and light switch feel.
Detector
Push
Slide
Rotary
Encoders
Power
Dual-in-line
Package Type
Multi Control Ratings and Safety Standards
Devices
TM
TACT Switch
Ratings
Custom-
Products
Product Line
Circuit arrangement
Push
SPDT
Type
Rocker
Type
Slide
Dimensions
Type
6.2
3.7
A
Terminal No.1
0.8
4.4
13
262
Items
Travel
Operating force
mm
2.2 0.98 to 3.92N
Style
Travel
2.2
B
PC board mounting face
4.4 Terminal No.2
COM
Features
No cadmium used in contacts.
2.2mm-travel.
Smooth sliding feel.
Complies with direct mounting onto PC board.
Applications
For power supply switches in air conditioners
For home electric appliances and switching power supplies
Specifications
6A 125V AC
Mounting
method
PC board
Unit:mm
PC board mounting
hole dimensions
3-1
4.4
Seal
1.9
Minimum packing
Product No.
unit pcs.
100 SDKTA20100
Circuit Diagram
COM
1
Circuit Arrangement
4.4
COM- 1
Refer to P.267 for product specifications.
2
COM- 2
