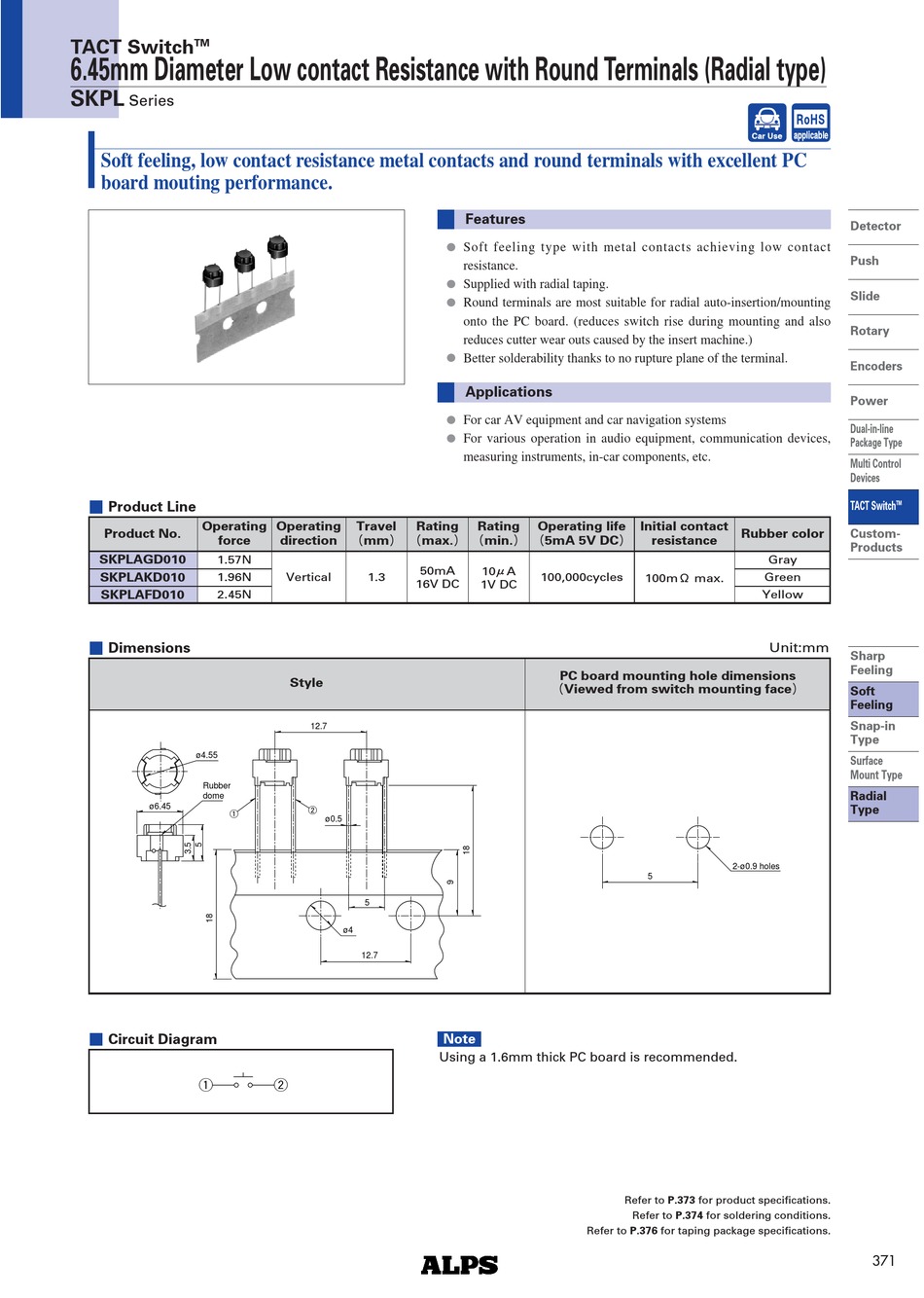

TACT Switch
TM
6.45mm Diameter Low contact Resistance with Round Terminals (Radial type)
SKPL
Series
Soft feeling, low contact resistance metal contacts and round terminals with excellent PC
board mouting performance.
Product Line
Operating
Product No.
force
SKPLAGD010
1.57N
SKPLAKD010
1.96N
SKPLAFD010
2.45N
Dimensions
ø4.55
Rubber
dome
ø6.45
1
Circuit Diagram
1
Operating
Travel
Rating
direction
mm
max.
50mA
Vertical
1.3
16V DC
Style
12.7
2
ø0.5
5
ø4
12.7
Note
Using a 1.6mm thick PC board is recommended.
2
Features
Soft feeling type with metal contacts achieving low contact
resistance.
Supplied with radial taping.
Round terminals are most suitable for radial auto-insertion/mounting
onto the PC board. (reduces switch rise during mounting and also
reduces cutter wear outs caused by the insert machine.)
Better solderability thanks to no rupture plane of the terminal.
Applications
For car AV equipment and car navigation systems
For various operation in audio equipment, communication devices,
measuring instruments, in-car components, etc.
Rating
Operating life
min.
5mA 5V DC
10BA
100,000cycles
1V DC
PC board mounting hole dimensions
Viewed from switch mounting face
Refer to P.373 for product specifications.
Refer to P.374 for soldering conditions.
Refer to P.376 for taping package specifications.
Initial contact
Rubber color
resistance
Gray
Green
100m
max.
Yellow
Unit:mm
2-ø0.9 holes
5
Detector
Push
Slide
Rotary
Encoders
Power
Dual-in-line
Package Type
Multi Control
Devices
TACT Switch
TM
Custom-
Products
Sharp
Feeling
Soft
Feeling
Snap-in
Type
Surface
Mount Type
Radial
Type
371
