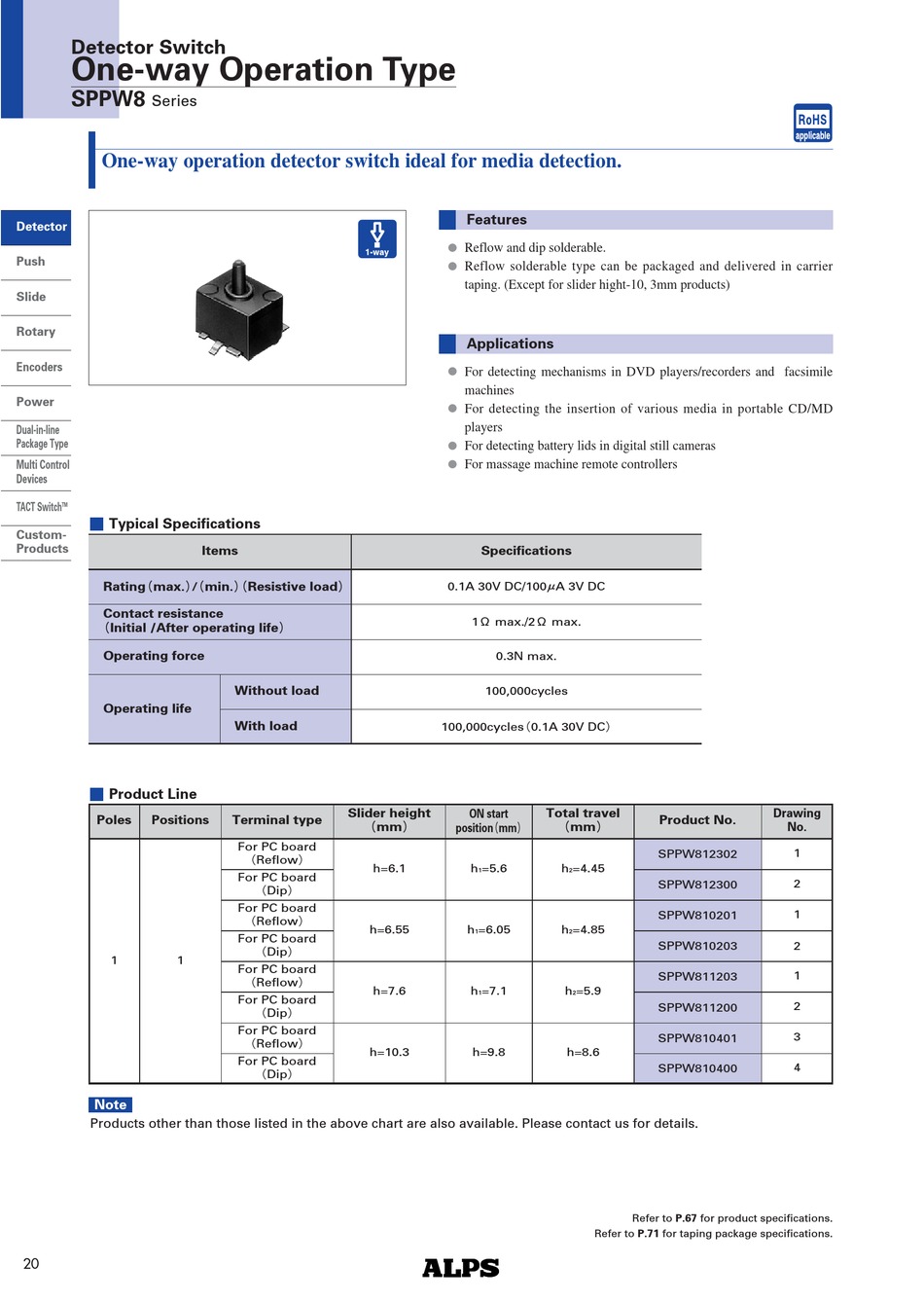

Detector Switch
One-way Operation Type
SPPW8
Series
One-way operation detector switch ideal for media detection.
Detector
Push
Slide
Rotary
Encoders
Power
Dual-in-line
Package Type
Multi Control
Devices
TACT Switch
TM
Typical Specifications
Custom-
Products
Rating max.
Contact resistance
Initial /After operating life
Operating force
Operating life
Product Line
Poles
Positions
1
1
Note
Products other than those listed in the above chart are also available. Please contact us for details.
20
Items
min.
Resistive load
Without load
With load
Slider height
Terminal type
For PC board
Reflow
h=6.1
For PC board
Dip
For PC board
Reflow
h=6.55
For PC board
Dip
For PC board
Reflow
h=7.6
For PC board
Dip
For PC board
Reflow
h=10.3
For PC board
Dip
Features
Reflow and dip solderable.
Reflow solderable type can be packaged and delivered in carrier
taping. (Except for slider hight-10, 3mm products)
Applications
For detecting mechanisms in DVD players/recorders and facsimile
machines
For detecting the insertion of various media in portable CD/MD
players
For detecting battery lids in digital still cameras
For massage machine remote controllers
Specifications
0.1A 30V DC/100BA 3V DC
1
max./2
0.3N max.
100,000cycles
100,000cycles 0.1A 30V DC
Total travel
ON start
mm
position mm
h
=5.6
1
h
=6.05
1
h
=7.1
1
h=9.8
max.
Product No.
mm
SPPW812302
h
=4.45
2
SPPW812300
SPPW810201
h
=4.85
2
SPPW810203
SPPW811203
h
=5.9
2
SPPW811200
SPPW810401
h=8.6
SPPW810400
Refer to P.67 for product specifications.
Refer to P.71 for taping package specifications.
Drawing
No.
1
2
1
2
1
2
3
4
