ViewSonic SC-Z55 Zero Client User Manual page 17

Step 2: Understand Your Stand / VESA Mount Kit for SC-Z55
The stand for your SC-Z55 is dual-purpose: it can be used as a stand or as a VESA mount kit. All screws of different
types supplied with the stand / VESA mount kit can be stored away inside the main bracket when not needed.

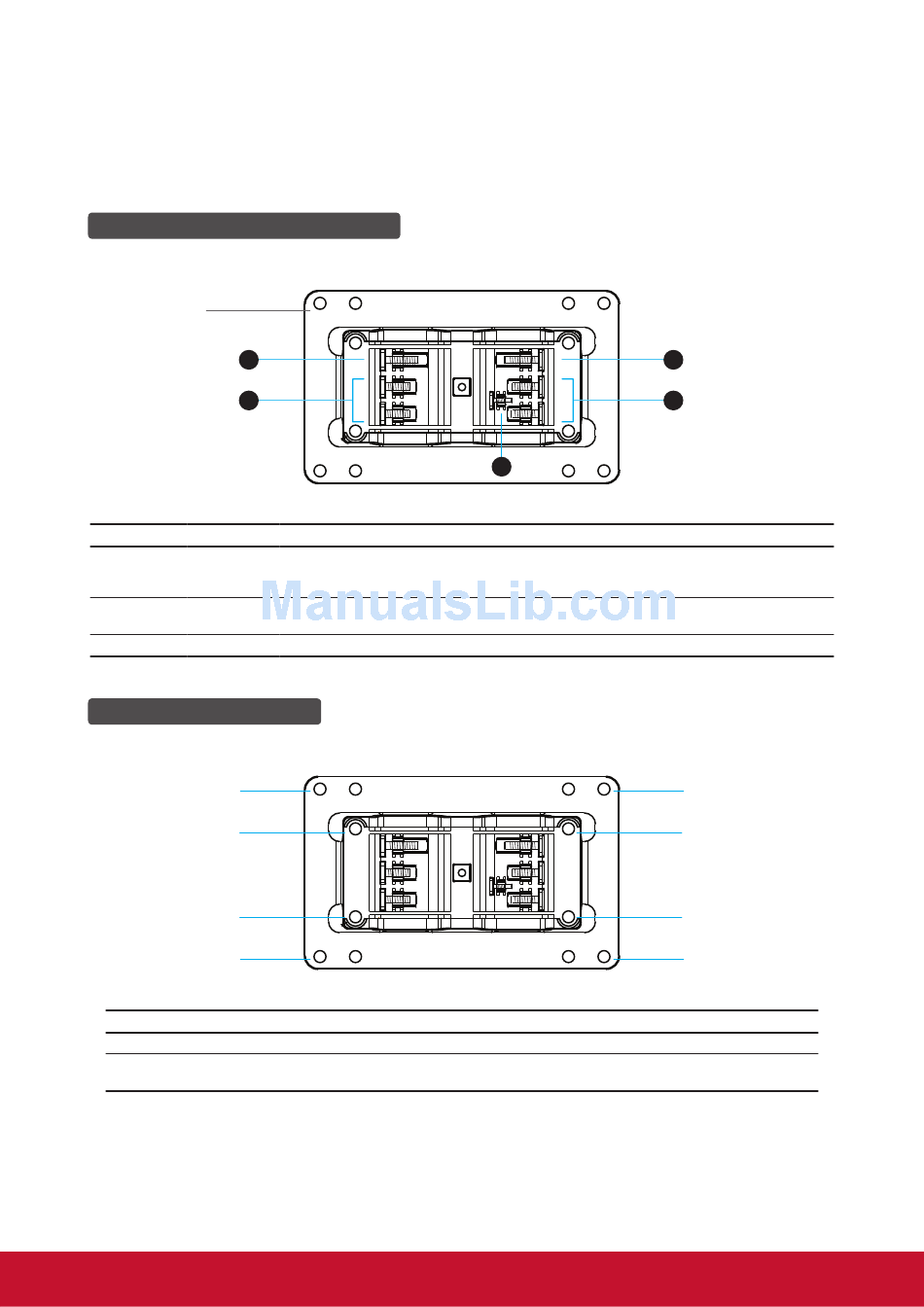

Screws Stored Away inside the Bracket
The following figure shows different types of screws stored away inside the main bracket.
Dual-purpose
bracket
1
2
Screw Type Number
1 2
2 4
3 1
Mount Holes on the Bracket
Refer to the following figure and descriptions for the VESA mount holes on the bracket.
1
2
2
1
Mount Hole Description
1 The VESA mount holes used to secure the bracket to a monitor (only two of them will be used).
The VESA mount holes used to secure the bracket to your SC-Z55 (only two of them will be
2
used).
Description
The largest-size screws used to secure the bracket to a monitor as a VESA mount
if the middle-size screws cannot firmly secure the bracket and your SC-Z55 to the
monitor.
The middle-size screws used to secure the bracket to your SC-Z55 and to a monitor
when using the bracket as a VESA mount.
The smallest-size screw used to secure the bracket to your SC-Z55 as a stand.
9
Setting Up Your SC-Z55
Positioning Your SC-Z55
1
2
3
1
2
2
1
