Summary of Contents for Verizon USB760

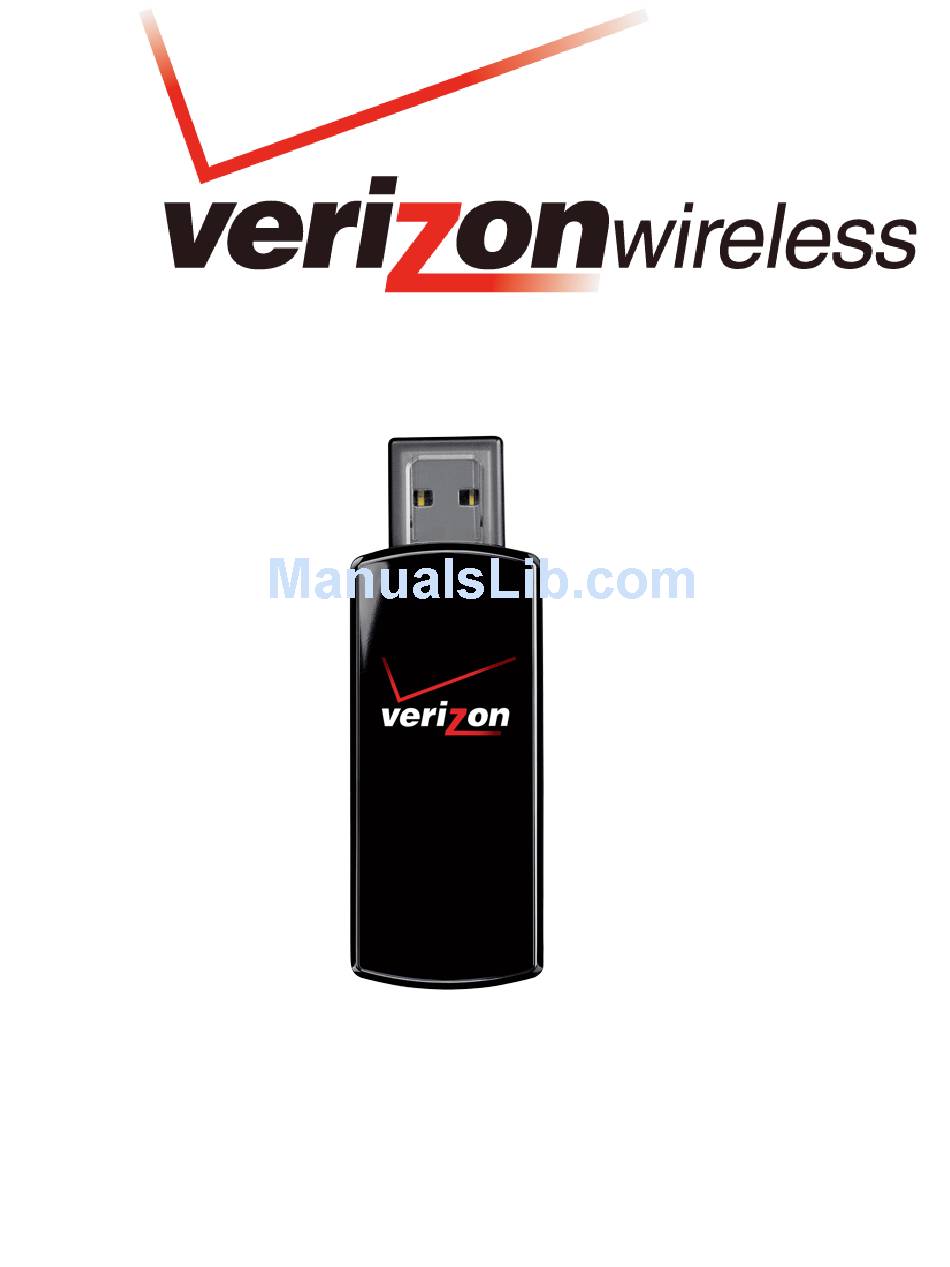

  • Page 1 Mobile Broadband / NationalAccess™...
  • Page 2: Table Of Contents

    Your Verizon Wireless USB760 Modem ........................7   The USB760 Modem Package ............................. 8   Ways to Access ................................. 9   How to Use Your USB760 Modem ..................... 10   Basics....................................10   Inserting and Removing the USB760 Modem.....................12   USB760 Modem Accessories ..................... 14  ...
  • Page 3 Product Specification ........................ 22   Regulatory Notices........................24   Federal Communications Commission Notice (FCC -- United States) ............24   RF Exposure/Specific Absorption Rate (SAR) Information................25   Single Modular Approval Host Requirements ....................25   Limited Warranty and Liability....................27   Glossary ............................ 28   Trademarks and Service Marks ....................
  • Page 4: Welcome

    Congratulations on purchasing the Verizon Wireless USB760 Modem for Mobile Broadband and NationalAccess service! Before installing the USB760 Modem VZAccess Manager software and drivers, review this manual, which outlines the features of the USB760 Modem hardware. This dual-band USB Modem operates over the high-speed Mobile Broadband and NationalAccess networks in the 800/1900 bands enabling you to connect at high speeds to the Internet, your corporate Intranet, and your email while you're away from the office.
  • Page 5: Wireless Communications

    Verizon Wireless or its partners will not be held responsible for damages of any kind resulting from the delays or errors in data transmitted or received with the USB760 Modem, or failure of the USB760 Modem to transmit or receive such data.
  • Page 6: Limitation Of Liability

    Software Drivers License Proprietary Rights Provisions: The software drivers provided with this product are copyrighted by Verizon Wireless and/or Verizon Wireless’ suppliers. And although copyrighted, the software drivers are unpublished and embody valuable trade secrets proprietary to Verizon Wireless and/or Verizon Wireless’ suppliers. The disassembly, decompilation, and/or Reverse Engineering of the software drivers for any purpose is strictly prohibited by international law.
  • Page 7: Usb760 Modem Hardware: Overview

    High Speed Wireless Data (Mobile Broadband) • The USB760 Modem enables subscribers to access the latest in CDMA EV-DO technology, referred to as Rev A, resulting in higher data rates and higher system capacity that enable richer applications and services.
  • Page 8: Care Of Your Usb760 Modem

    Care of Your USB760 Modem As with any electronic device, the USB760 Modem must be handled with care to ensure reliable operation. Verizon Wireless recommends the following handling guidelines: Do not apply adhesive labels to the USB760 Modem; they may cause the device to potentially •...
  • Page 9: Getting Started

    Getting Started IMPORTANT: The USB760 Modem requires an activated account with Verizon Wireless in order to function. The modem can be activated three ways: in a Verizon Wireless store • by contacting Verizon Wireless Telesales • self-activated through the Verizon Wireless activation website.
  • Page 10: Your Verizon Wireless Usb760 Modem

    (on bottom of device; not shown) USB Connector: Connects to your computing device via a Type A USB port. External Antenna Connector: Connect an optional external antenna to the USB760 Modem for improved performance in fringe areas. Protective Cap: Protects USB Connector from debris/damage when not in use.
  • Page 11: The Usb760 Modem Package

    Accessory hook: Permits use of lanyard or keychain accessories for portability of the USB760 Modem. Service Status Indicator (LED) The USB760 Modem is designed with a status light that simply indicates whether or not the device is powered on and what the connection status is. LED Color...
  • Page 12: Ways To Access

    Subject to Customer Agreement, Calling Plan, credit approval & other service terms. Mobile Broadband Rev.A speed claim based on our network tests with 5 MB FTP data files without compression. Verizon Wireless is rapidly adding Rev. A capability to your Mobile Broadband service area. Your Mobile Broadband Rev. A-enabled device will indicate coverage when you are in a Mobile Broadband Rev.
  • Page 13: How To Use Your Usb760 Modem

    Basics The comprehensive Quick Reference Guide that was included in the box when you purchased your product and the VZAccess Manager Software User Guide details the installation and configuration of your USB760 Modem with the VZAccess Software. Using the Device for the First Time Follow these steps to begin using your USB760 Modem: IMPORTANT: Installation must be performed within a Mobile Broadband and/or NationalAccess coverage area.
  • Page 14 The User Guides may be easily accessed after VZAccess Manager has been installed. Your device includes two User Guides: VZAccess Manager Software User Guide – Details the functions of VZAccess Manager • USB760 Modem Product User Guide – Details the USB760 Modem’s hardware features • To access the User Guides: Windows 1.
  • Page 15: Inserting And Removing The Usb760 Modem

    Under ideal conditions, the label of the USB760 Modem should be facing up. • The USB760 Modem is powered as soon as you connect it to the Type A USB port of your computing • device. Although the modem is powered, it does not automatically connect to the Internet.
  • Page 16 Quick Removal 1. End your Mobile Broadband session by selecting Disconnect from VZAccess Manager. 2. Exit VZAccess Manager. 3. Simply grip the USB760 Modem on both sides and pull straight out to avoid damaging the USB connectors. Standard Unplug/Eject Hardware Removal End your Mobile Broadband session by selecting Disconnect from VZAccess Manager.
  • Page 17: Usb760 Modem Accessories

    USB760 Modem Accessories There are a variety of optional accessories available for your device that are sold separately through Verizon Wireless and there are three easy ways to purchase them: Shop online anytime at www.verizonwireless.com • Call us at 1866 VZ GOT IT (894 6848) •...
  • Page 18: External Antenna Option

    The USB760 Modem removable memory storage feature is hot-swappable, meaning the microSD card may be removed at any time, whether the USB760 Modem is inserted in the computing device or not. 1. Gently push in the microSD card and it will pop out half way of the slot.
  • Page 19 To Save Information on the microSD Card Saving files to the microSD Memory Card on the USB760 Modem follow the same principles as saving files to any external flash drive per your specific operating system. Windows Insert the USB760 Modem into your computer’s USB port (See Inserting And Removing USB760 Modem, beginning on page 12).
  • Page 20 In the Save in: box, click the down arrow to view the contents of the pull down menu. Select the USB760 Modem which typically appears as No Name In the Finder sidebar. Type a name for the file you are saving to the USB760 Modem in the Save As and click Save. Drag/Drop – Copy/Paste: 1.
  • Page 21 Removing the USB760 Modem, beginning on page 12). 2. Go to My Computer and locate the USB760 Modem as Mass Storage or Removable Storage with a letter assigned to it (i.e. E:, F:, G:, etc). Double-click to open the window and view the contents.
  • Page 22: How To Attach The Lanyard Or Keychain Accessory

    How to Attach the Lanyard or Keychain Accessory A lanyard and a keychain are included in the USB760 Modem package. These accessories provide convenient portability while on the go. IMPORTANT: Do not wear the lanyard and the USB760 Modem around rotating or machinery or during sleep.
  • Page 23: Technical Support

    Technical Support Data Technical Support For additional information and technical support for VZAccess Manager and Verizon wireless devices, you can visit the Verizon Wireless Data Technical Support page at: http://www.verizonwireless.com/b2c/support/data.jsp. USB760 Modem Product User Guide...
  • Page 24: Troubleshooting

    • NationalAccess coverage area or because of an account or network problem). My notebook does not reboot when the USB760 Modem is inserted. I experience an error or a blank screen. When this happens, simply remove the device and reboot the system.
  • Page 25: Product Specification

    -20° C to +65° C Storage Temperature (-4° F to 149° F) 5% to 90% over operating temperature Relative Humidity 1 meter drop, no damage – fully operational Drop 5 Hz to 500 Hz, 0.1 octave/second Vibration Stability USB760 Modem Product User Guide...
  • Page 26: Regulatory Notices

    MODIFICATIONS: The FCC requires that you be notified that any changes or modifications made to this device that are not expressly approved by Verizon Wireless, Inc. may void your authority to operate the equipment.
  • Page 27: Rf Exposure/Specific Absorption Rate (Sar) Information

    LAP POSITION. Single Modular Approval Host Requirements The Novatel Wireless USB760 has been evaluated and granted approval as a modular device for mobile applications under the FCC rules. Accordingly the USB modem can be integrated into a host device without additional regulatory evaluation provided the following conditions are met. If the final configuration does not satisfy this list then additional FCC and IC approvals must be considered.
  • Page 28 5. A user manual with the end product must clearly indicate the operating requirements and conditions that must be observed to ensure compliance with current FCC / IC RF exposure guidelines. Technical support contacts: http://www.nvtl.com/support/index.html • Email: support@novatelwireless.com • USB760 Modem Product User Guide...
  • Page 29: Limited Warranty And Liability

    Product by the purchaser without prior written consent from Novatel Wireless, (VII) products designated by Novatel Wireless as beta site test samples, experimental, developmental, reproduction, sample, incomplete or out of specification Products, or (VIII) returned products if the original identification marks have been removed or altered. USB760 Modem Product User Guide...
  • Page 30: Glossary

    Computing Device Personal Computing device (notebook, desktop computer, tablet PC, PDA, etc). Hot-Swappable The ability to remove and replace the microSD Card from the USB760 Modem while it is still connected to the computer and online without damaging the device. Kbps Kilobits per second –...
  • Page 31 Wide Area Network (WAN). A computer network covering a broad geographical area. WANs are used to connect local area networks (LANs) together, so that users and computers in one location can communicate with users and computers in other locations. USB760 Modem Product User Guide...
  • Page 32 WANs (WWANs) use cellular towers to transmit a wireless signal over a range of several miles to a mobile device compared to wireless Wi-Fi LANs (WLANs), which span only a few hundred feet and generally to only stationary devices. USB760 Modem Product User Guide...
  • Page 33: Trademarks And Service Marks

    Verizon Wireless or their respective owners. Nothing contained in this user manual should be construed as granting by implication, estoppel, or otherwise, a license or right of use of Verizon Wireless or any other Trademark displayed in this user manual without the written permission of Verizon Wireless or its respective owners.
