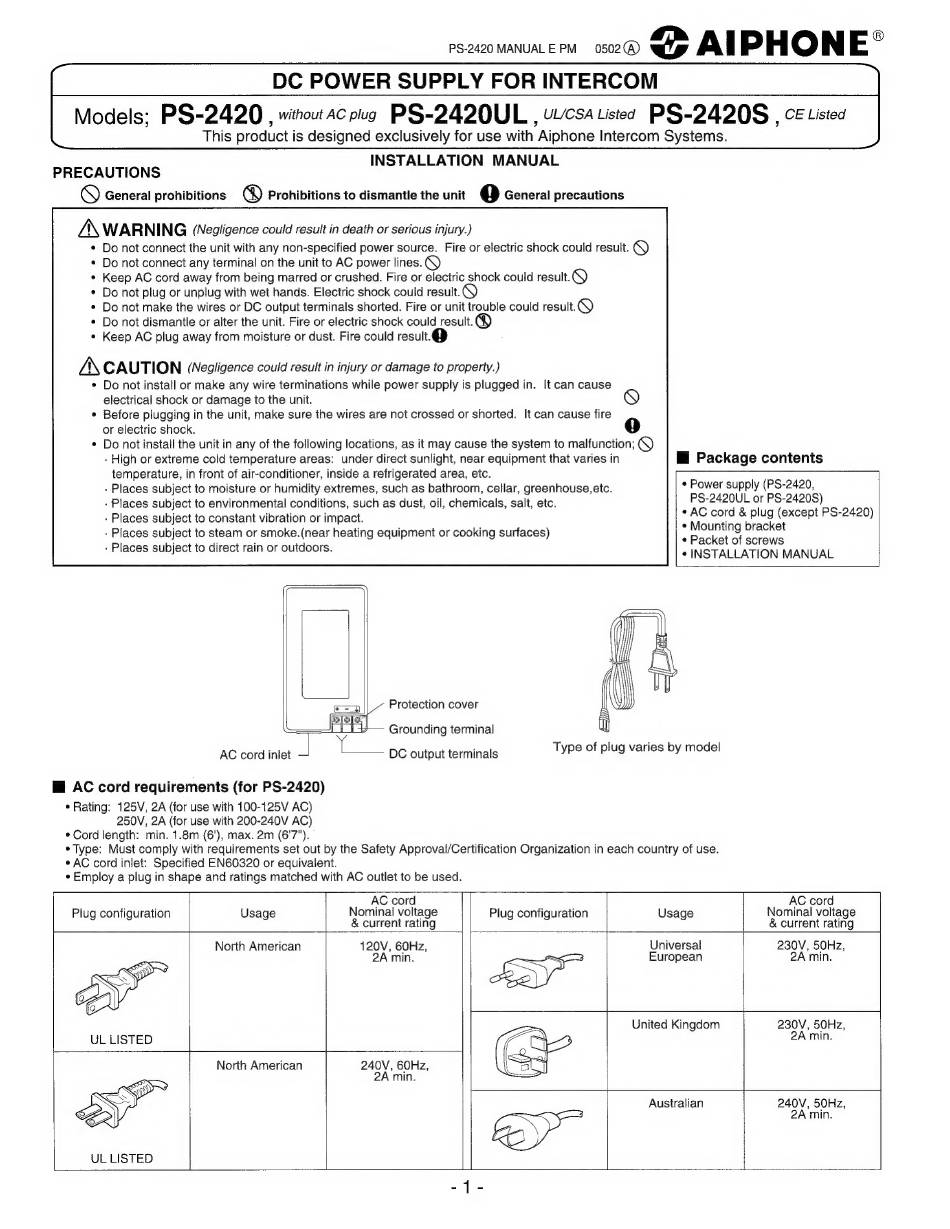

Aiphone PS-2420 Installation Manual

PS-2420 MANUALE PM 0502 @) S Al PHON E°
DC POWER SUPPLY FOR INTERCOM
Models; PS-2420 , without ac pug PS-2420UL , wcsatistea PS-2420S , cE Liste
This product is designed exclusively for use with Aiphone Intercom Systems.
INSTALLATION MANUAL
PRECAUTIONS
S General prohibitions ® Prohibitions to dismantle the unit Q General precautions
A WARNING (Negligence could result in death or serious injury.)
Do not connect the unit with any non-specified power source. Fire or electric shock could result. S
Do not connect any terminal on the unit to AC power lines. S
Keep AC cord away from being marred or crushed. Fire or electric shock could result. Q
Do not plug or unplug with wet hands. Electric shock could result.Q
Do not make the wires or DC output terminals shorted. Fire or unit trouble could result.Q
Do not dismantle or alter the unit. Fire or electric shock could result.
Keep AC plug away from moisture or dust. Fire could result. @
A CAUTION (Negligence could result in injury or damage to property.)
* Do not install or make any wire terminations while power supply is plugged in. It can cause
electrical shock or damage to the unit.
* Before plugging in the unit, make sure the wires are not crossed or shorted. It can cause fire
or electric shock.
* Do not install the unit in any of the following locations, as it may cause the system to malfunction; S
- High or extreme cold temperature areas: under direct sunlight, near equipment that varies in |_| Package contents
temperature, in front of air-conditioner, inside a refrigerated area, etc.
- Places subject to moisture or humidity extremes, such as bathroom, cellar, greenhouse, etc.
- Places subject to environmental conditions, such as dust, oil, chemicals, salt, etc.
- Places subject to constant vibration or impact. . ,
- Places subject to steam or smoke.(near heating equipment or cooking surfaces) 7 Lice see
. Places subject to direct rain or outdoors. e INSTALLATION MANUAL
e Power supply (PS-2420,
PS-2420UL or PS-2420S)
e AC cord & plug (except PS-2420)
Protection cover
ia 5 eo Grounding terminal
AC cord inlet — DC output terminals
E AC cord requirements (for PS-2420)
e Rating: 125V, 2A (for use with 100-125V AC)
250V, 2A (for use with 200-240V AC)
e Cord length: min. 1.8m (6'), max. 2m (6'7").
e Type: Must comply with requirements set out by the Safety Approval/Certification Organization in each country of use.
¢ AC cord inlet: Specified EN60320 or equivalent.
e Employ a plug in shape and ratings matched with AC outlet to be used.
AC cord AC cord
Plug configuration Usage Nominal voltage Plug configuration Usage Nominal voltage
& current rating & current rating
North American 120V, 60Hz, Universal 230V, 50Hz,
2A min. sy European 2A min.
United Kingdom te 50Hz,
=A min.
oN?
North American 240V, 60Hz, ay
2A min.
Australian 240V, 50Hz,
gy 2A min.
UL LISTED
